(7-24) - SKID SHOE, CENTER, AND WEAR PLATE ASSEMBLY, SERIAL NUMBER CFH0009501 THRU -0009781

Запчасти Case IH 8380 (7-24) - SKID SHOE, CENTER, AND WEAR PLATE ASSEMBLY, SERIAL NUMBER CFH0009501 THRU -0009781 (09) - CHASSIS

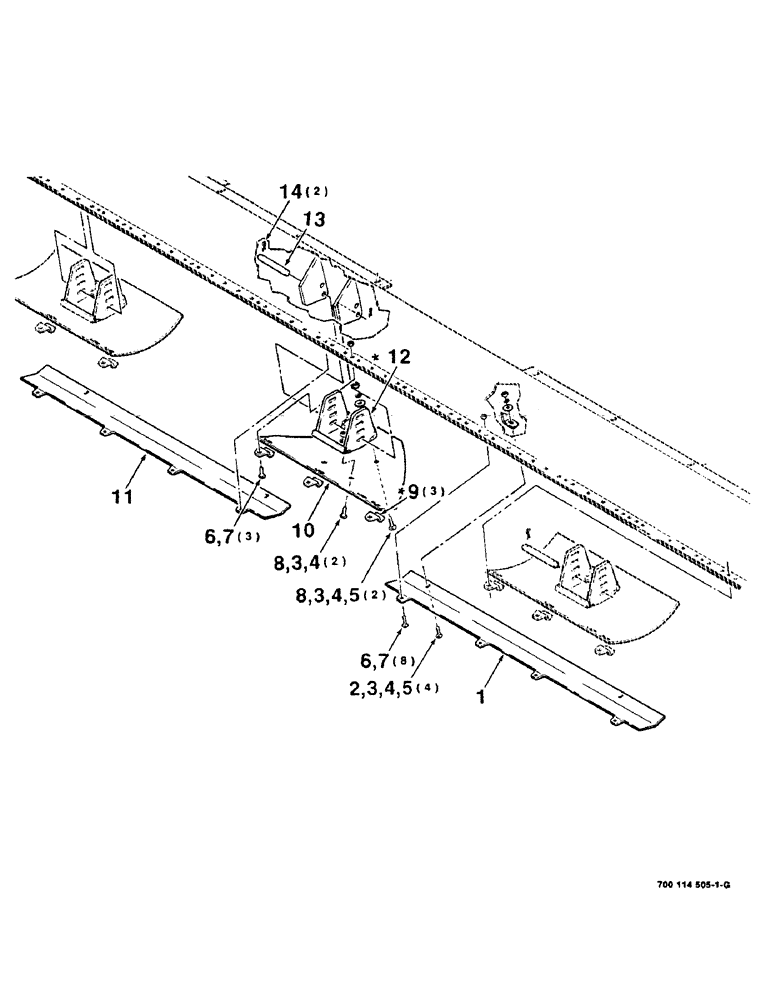

Схема запчастей Case IH 8380 - (7-24) - SKID SHOE, CENTER, AND WEAR PLATE ASSEMBLY, SERIAL NUMBER CFH0009501 THRU -0009781 (09) - CHASSIS
3
12
2
4
5
13
8
9
14
7
4
5
8
3
7
4
3
6
10
11
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700114700

PLATE

- wear, left

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

3

425-106

NUT,3/8"-16, Cl 5

8шт.

4

492-11038

LOCK WASHER,3/8"

8шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 P

6шт.

6

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

11шт.

7

425-107

NUT,7/16"-14, G5

7/16-14 H

11шт.

8

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 X 1-1/4 PB

4шт.

9

6453799

CLIP

- shoe, skid

3шт.

10

700115322

SHOE

- skid, center

1шт.

11

700114701

PLATE

- wear, right

1шт.

12

700110220

SUPPORT

- adjustable

1шт.

13

700110222

PIN

1шт.

14

S120261

PIN

HAIRPIN COTTER

2шт.
