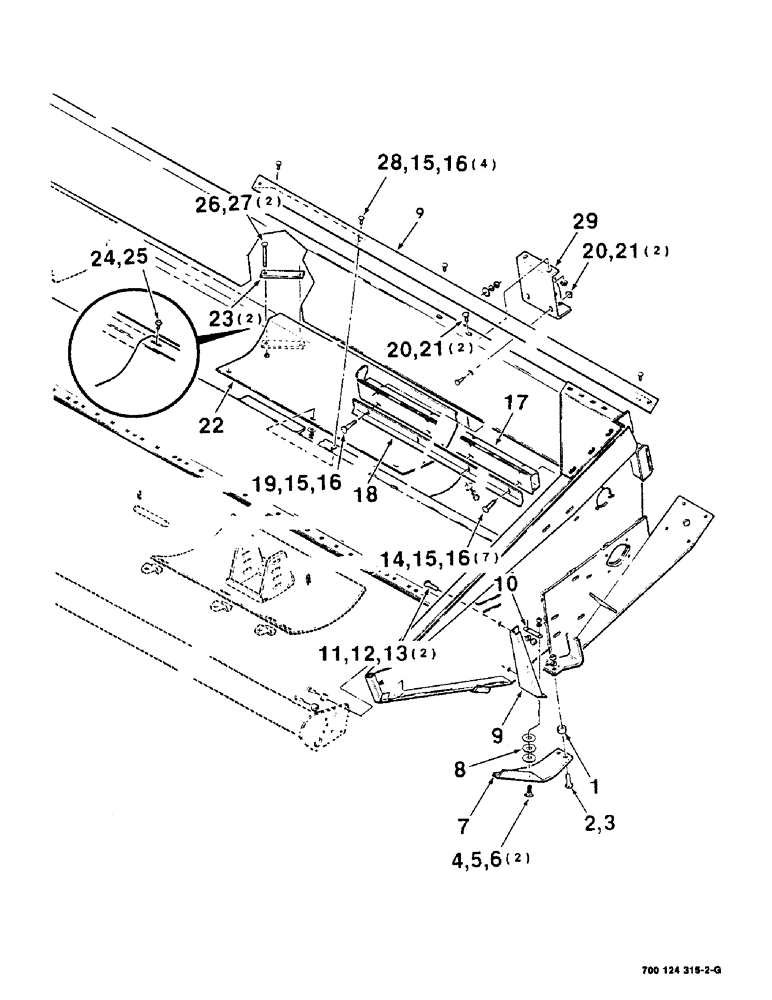

Запчасти Case IH 8380 (7-22) - HEADER ASSEMBLY, LEFT (09) - CHASSIS

1

700114717

SPACER

1шт.

2

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

1шт.

3

425-107

NUT,7/16"-14, G5

7/16-14 H

1шт.

4

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 PB

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 P

2шт.

7

700114709

DIVIDER

SHOE - divider, left

1шт.

8

495-21044

WASHER,3/8"

1шт.

9

700114712

SUPPORT

- divider shoe, left

1шт.

10

700114716

COVER PLATE

STRAP - reinforcement

1шт.

11

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

13

495-21056

WASHER,1/2"

1/2 P

2шт.

14

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

7шт.

15

425-105

NUT,5/16"-18, G5

12шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

12шт.

17

700114688

STRIPPER

- left

1шт.

18

700114693

ANGLE BAR

ANGLE - stripper

1шт.

19

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

1шт.

20

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

21

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

4шт.

22

700114696

PAN

- auger, left (S.N. CFH0009501 thru-0010162)

1шт.

700124320

PAN

- auger, left (S.N. CFH0010163 and later)

1шт.

23

6839252

STRAP

- mounting (S.N. 170H-00101 thru 170H-60439)

2шт.

24

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

26

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

27

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

2шт.

28

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

4шт.

29

700115187

CHANNEL

- mounting

1шт.
