(7-14) - FLOTATION SPRING ASSEMBLY, SERIAL NUMBER CFH0010163 AND LATER

Запчасти Case IH 8380 (7-14) - FLOTATION SPRING ASSEMBLY, SERIAL NUMBER CFH0010163 AND LATER (09) - CHASSIS

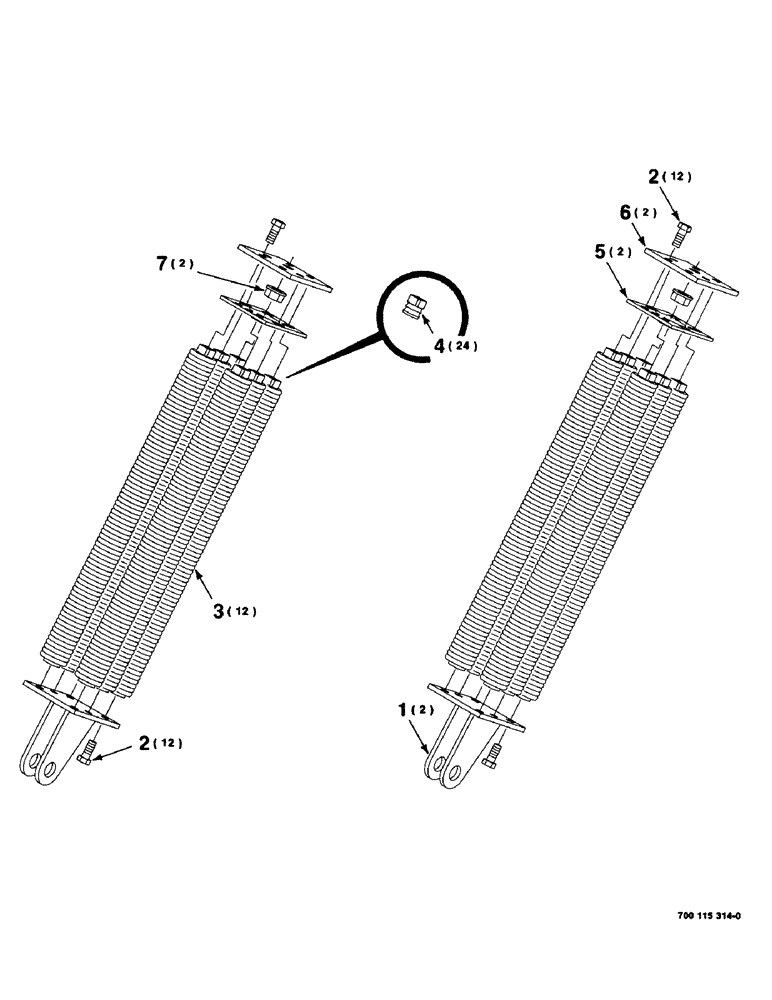

Схема запчастей Case IH 8380 - (7-14) - FLOTATION SPRING ASSEMBLY, SERIAL NUMBER CFH0010163 AND LATER (09) - CHASSIS
1
2
4
3
5
6
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700115315

HANGER

WA - spring

2шт.

2

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

24шт.

3

700115183

SPRING

ASSEMBLY (Includes plugs)

12шт.

4

299230

PLUG

- spring

24шт.

5

700124521

LARGE PLATE

PLATE

2шт.

6

700124520

LARGE PLATE

PLATE - upper

2шт.

7

700712095

NUT

7/8-9 HFN GR8

2шт.
