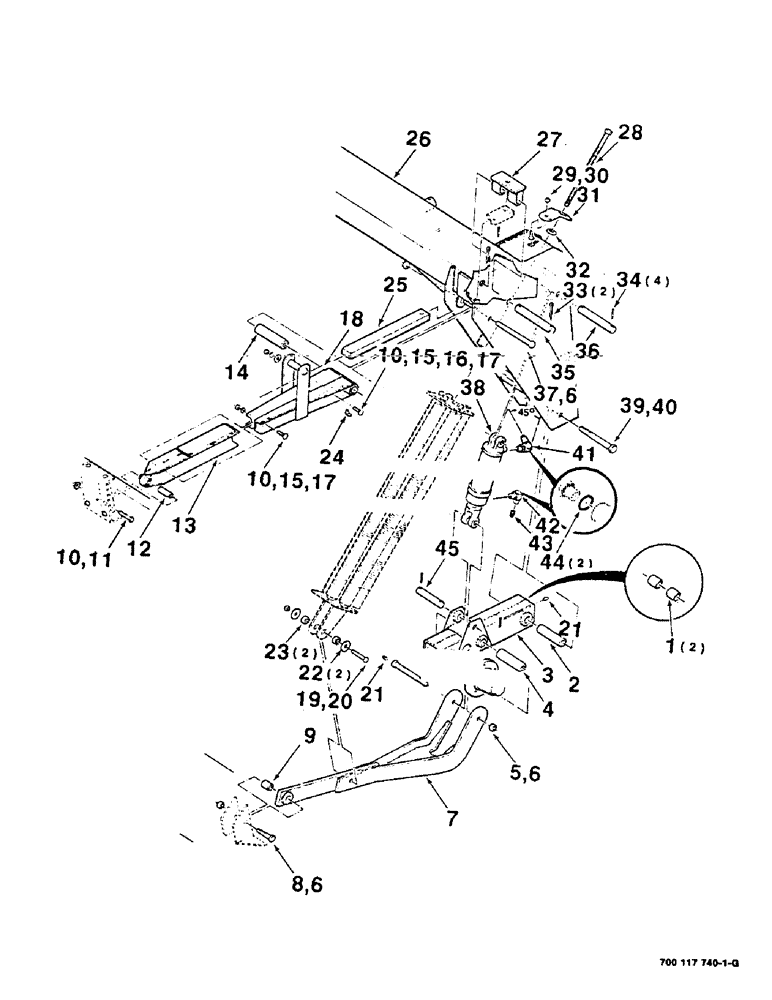

Запчасти Case IH 8380 (7-06) - HEADER FRAME AND FLOTATION ASSEMBLY LEFT (09) - CHASSIS

1

852459

BRONZE BUSHING

BUSHING - bronze

2шт.

2

700115166

SLEEVE,25.96mm ID x 38.1mm OD x 138mm L

- strut, rear

1шт.

3

700115197

STRUT

- left

1шт.

4

700115164

BUSHING,19.84mm ID x 28.58mm OD x 140mm L

- strut, center

1шт.

5

700115167

BOLT

- special

1шт.

6

230-42112

LOCK NUT,3/4"-10, GA

3/4-10 HCLN

3шт.

7

700115171

ARM

- lower

1шт.

8

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

.75 X 3 UNC GR5 YZD

1шт.

9

700115152

BUSHING

- arm, front

1шт.

10

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2-13 X 3-1/2 C

3шт.

11

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

12

700115151

SPACER

- arm, front

1шт.

13

700115138

ARM

- upper, front

1шт.

14

700115165

BUSHING

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

16

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

18

700115157

ARM

- upper, rear

1шт.

19

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

20

230-42110

LOCK NUT,5/8"-11, GA

5/8-11 HCLN

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

22

6555346

WASHER

2шт.

23

6213193

SPACER

2шт.

24

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

25

700706813

SPRING

- leaf

1шт.

26

700115209

FUNNEL

MAIN FRAME

1шт.

27

700115142

MOUNTING PARTS

ANCHOR - spring

1шт.

28

7773658

BOLT

- spring (S.N. CFH0009501 thru-0010162)

1шт.

700712025

SPECIAL BOLT,Spcl, 7/8" - 9 x 14", Gr 5

BOLT - spring (S.N. CFH0010163 and later)

1шт.

29

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

31

700115168

RETAINER

(S.N. CFH0009501 thru-0010162)

1шт.

700124287

RETAINER

(S.N. CFH0010163 and later)

1шт.

32

700115336

WASHER

(S.N. CFH0009501 thru-0010162)

1шт.

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

7/8 HARDENED PLAIN WASHER (S.N. CFH0010163 and later)

1шт.

33

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

34

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

35

700115163

PIN

- anchor, spring

1шт.

36

700115184

PIN

- cylinder, upper

1шт.

37

414-12128

BOLT,Hex, 3/4" - 16 x 8", Gr 5

3/4-10 X 8 B

1шт.

38

700706802

CYLINDER

- hydraulic, left (S.N. CFH009501 thru-0010140)

1шт.

700712022

CYLINDER

- hydraulic, left (S.N. CFH0010141 and later)

1шт.

39

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

1-8 X 8 B

1шт.

40

425-1016

NUT,1"-8, G5

1шт.

41

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

42

218-5453

ELBOW,90 Degree, 3/4"-16 ORB x 3/8" NPT Fem

ADAPTER - 90 degree female

1шт.

43

700704639

PLUG

- vent

1шт.

44

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

45

700115185

PIN

- cylinder, lower

1шт.
