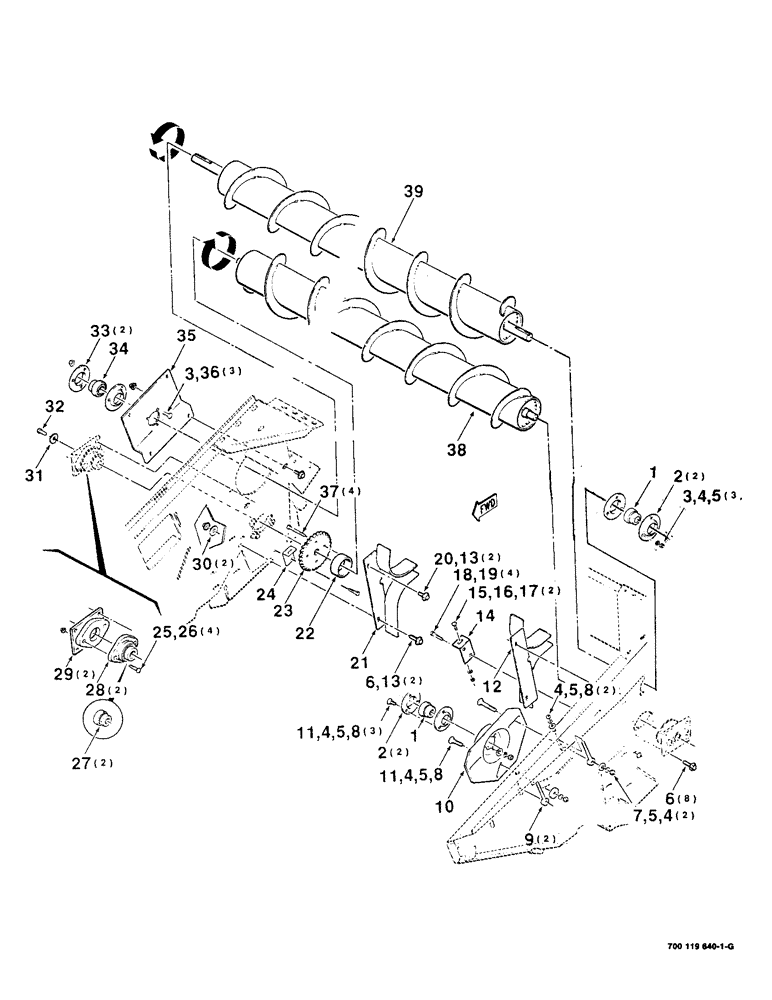

Запчасти Case IH 8380 (6-02) - AUGER AND REEL MOUNTING, LEFT, ASSEMBLY (09) - CHASSIS

1

557995R11

COLLAR

BEARING - spherical

2шт.

2

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

BEARING - flange

4шт.

3

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

6шт.

4

425-106

NUT,3/8"-16, Cl 5

11шт.

5

492-11038

LOCK WASHER,3/8"

11шт.

6

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

10шт.

7

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

2шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 P

6шт.

9

700110578

ROD

EYEBOLT - reel adjustment

2шт.

10

700110586

LARGE PLATE

PLATE - reel mounting, left

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

12

700114705

SHIELD

WRAPPER - auger, left

1шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

14

700124318

ANGLE

- left

1шт.

15

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

16

425-105

NUT,5/16"-18, G5

2шт.

17

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

20

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

21

700114704

SHIELD

WRAPPER - auger, right

1шт.

22

700114589

SPACER

- sprocket

1шт.

23

700114539

SPROCKET

50-P, 28-tooth

1шт.

24

700124317

ANGLE

- right

1шт.

25

433-532

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2", Gr 5

5/16-18 X 2 RHSNB

4шт.

26

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN

4шт.

27

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

WITH COLLAR

2шт.

28

700708582

BEARING ASSY,28.58mm ID

BEARING BLOCK ASSEMBLY

2шт.

29

700118684

SUPPORT

PLATE - mounting, bearing

2шт.

30

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

31

6165138

WASHER

WASHER - special

1шт.

32

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

33

T27207

FLANGED BEARING

FLANGE - bearing

2шт.

34

455104R11

COLLAR

BEARING - spherical

1шт.

35

700114731

SUPPORT

MOUNTING - auger, upper right

1шт.

36

231-5146

FLANGE NUT,3/8"-16

3шт.

37

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

38

700114568

AUGER

- lower

1шт.

700124899

AUGER

- lower

1шт.

39

700114559

AUGER

- upper

1шт.

700124898

AUGER

- upper

1шт.
