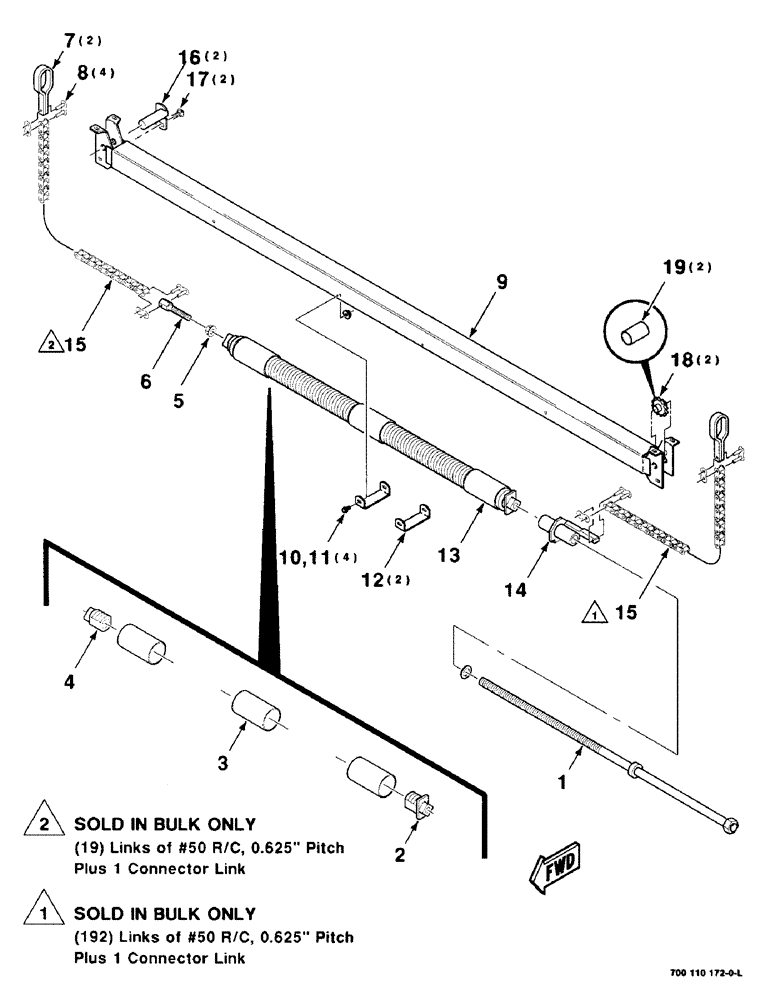

Запчасти Case IH 8380 (5-08) - HAY CONDITIONER SPRING ASSEMBLY, SERIAL NUMBER CFH0009501 THRU -0009781 (09) - CHASSIS

1

700110182

ROD

DRAWBAR

1шт.

2

299230

PLUG

- spring

1шт.

3

727537

TUBE,2.25" OD, 6" Length

- neoprene

1шт.

4

451328

PLUG

- spring

1шт.

5

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 J

1шт.

6

700110184

ROD

DRAWBOLT

1шт.

7

6835896

STRAP

- collar

2шт.

8

47530

LINK, CONNECTING

#50 CONNECTOR LINK (With pins)

4шт.

9

700110173

CHANNEL

1шт.

10

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

12

700110185

SUPPORT

STRAP - support

2шт.

13

453498

SPRING

ASSEMBLY

1шт.

14

700110179

SPARE PART

ADAPTER

1шт.

15

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 foot bulk)

1шт.

16

6831069

PIN

2шт.

17

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

18

6111496

SPROCKET ASSY.

SPROCKET ASSEMBLY - 12 tooth

2шт.

19

740803

BUSHING

2шт.
