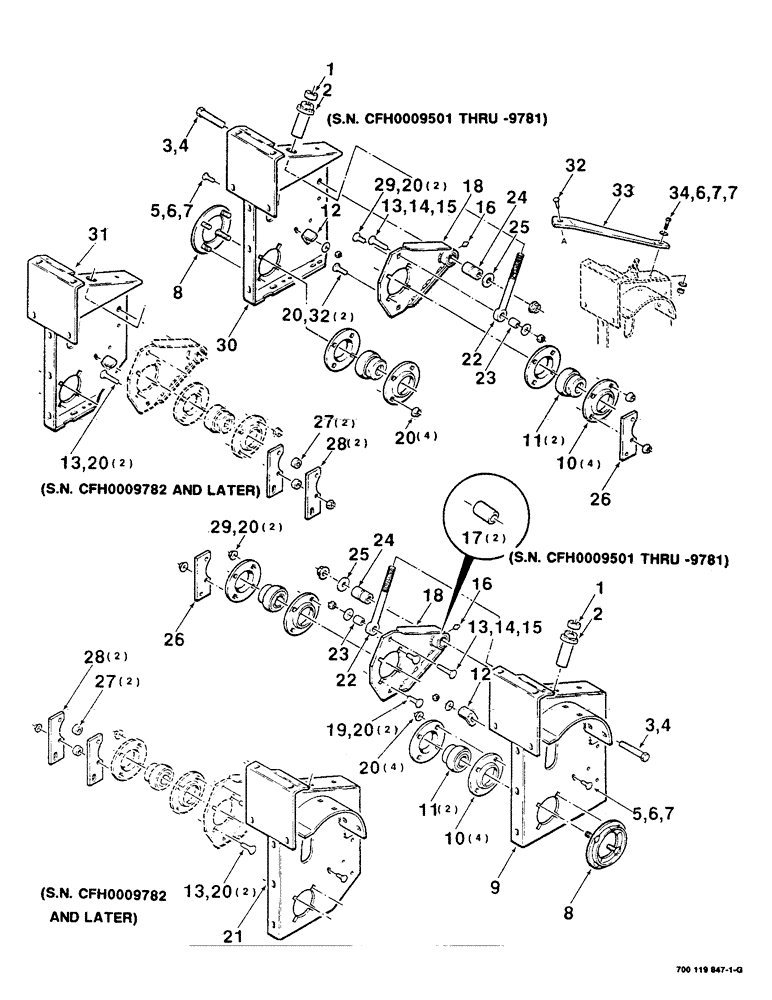

Запчасти Case IH 8380 (5-06) - HAY CONDITIONER PANELS, LEFT AND RIGHT, ASSEMBLY (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
425-1112
NUT,3/4"-16, G5
3/4-16 H
2шт.
2
700108786
STOP
- adjustment
2шт.
3
413-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
2шт.
5
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
3/8-16 X 1 RHSNB
2шт.
6
425-106
NUT,3/8"-16, Cl 5
3шт.
7
496-11041
WASHER,13/32" x 13/16" x .065", HDN
3/8 P
4шт.
8
700115294
RING
- grass
2шт.
9
700110193
PANEL
- conditioner, right
1шт.
10
50575
FLANGE
- bearing
8шт.
11
455112R11
COLLAR
bearing, spherical, bearings not included
4шт.
Uses P/N 663559R91 Ball Bearing.
1шт.
12
700109432
STOP
2шт.
13
433-832
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
1/2-13 X 2 RHSNB
6шт.
14
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
2шт.
15
495-21056
WASHER,1/2"
1/2 P
2шт.
16
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
2шт.
17
51200290
BUSHING,31.75mm ID x 38.1mm OD x 47.63mm L
- bronze (1.250 ID / 1.500 OD / 1.875 length)
2шт.
Use with Ref. 24 P/N 6834394 Bushing.
1шт.
18
700109404
ARM ASSY.
ARM ASSEMBLY - pivot
2шт.
19
433-820
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 X 1-1/4 RHSNB
4шт.
20
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
20шт.
21
700130345
PANEL
- conditioner, right
1шт.
22
700108789
EYEBOLT
2шт.
23
700108790
SPACER
BUSHING
2шт.
24
6834394
BUSHING,17.46mm ID x 31.75mm OD x 53.5mm L
2шт.
Use with Ref.17 P/N 852467 Bushing.
1шт.
25
6834402
WASHER
1шт.
26
700110201
STRAP
- mounting
2шт.
27
428938
SPACER
4шт.
28
700119854
SUPPORT
STRAP - mounting
1шт.
29
433-816
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
1/2-13 X 1 RHSNB
4шт.
30
700110192
PANEL
- conditioner, left
1шт.
31
700130343
PANEL
- conditioner, left
1шт.
32
433-620
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5
1шт.
33
700121447
STRAP
1шт.
34
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
Выбрано товаров: 37
