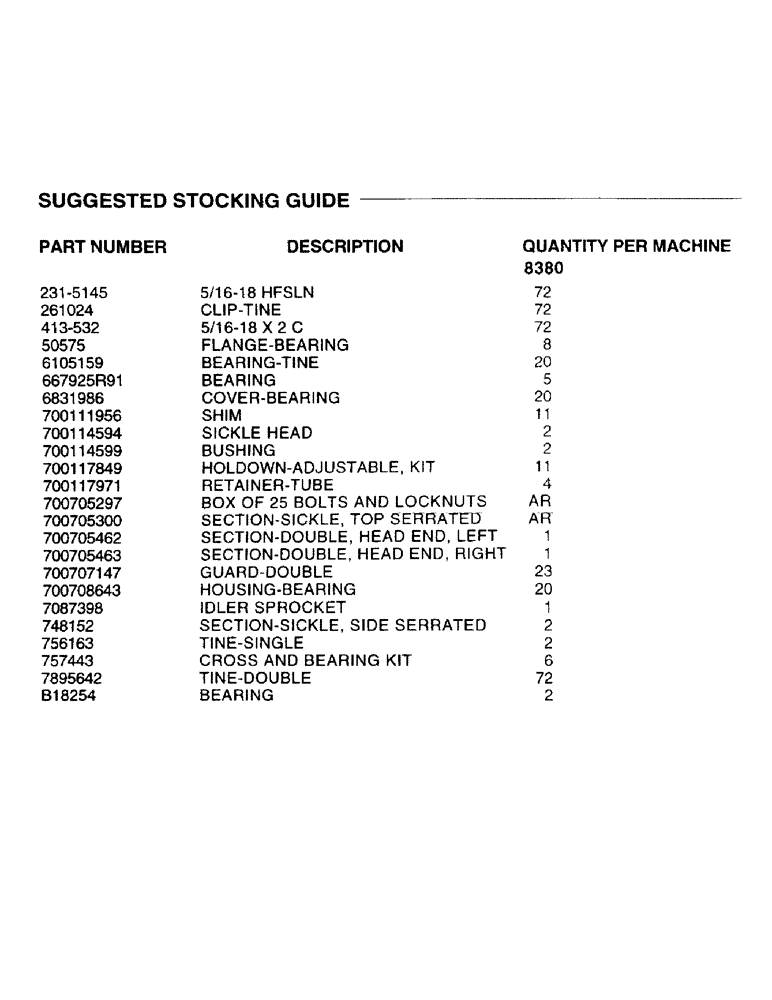

Запчасти Case IH 8380 (0A) - SUGGESTED STOCKING GUIDE (00) - PICTORIAL INDEX

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

72шт.

261024

CLIP

- tine

72шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

72шт.

663562R1

FLANGE

- bearing

8шт.

6105159

NYLON BEARING,1.75"

BEARING - tine

20шт.

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

5шт.

6831986

COVER

- bearing

20шт.

700111956

PLATE

SHIM

11шт.

700114594

KNIFE HEAD

SICKLE HEAD

2шт.

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

2шт.

700117849

PACKAGE

HOLDOWN - adjustable, kit

11шт.

700117971

RETAINER

- tube

4шт.

700705297

KIT

BOX OF 25 BOLTS AND LOCKNUTS

1шт.

700705300

KNIFE SECTION

SECTION - sickle, top serrated

1шт.

700705462

KNIFE SECTION

SECTION - double, head end, left

1шт.

700705463

KNIFE SECTION

SECTION - double, head end, right

1шт.

700707147

GUARD

- double

23шт.

700708643

BEARING HOUSING

HOUSING - bearing

20шт.

7087398

DRIVE SPROCKET

IDLER SPROCKET

1шт.

748152

KNIFE SECTION

SECTION - sickle, side serrated

2шт.

756163

TINE

- single

2шт.

757443

U-JOINT SPIDER

CROSS AND BEARING KIT

6шт.

7895642

TINE

- double

72шт.

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING

2шт.
