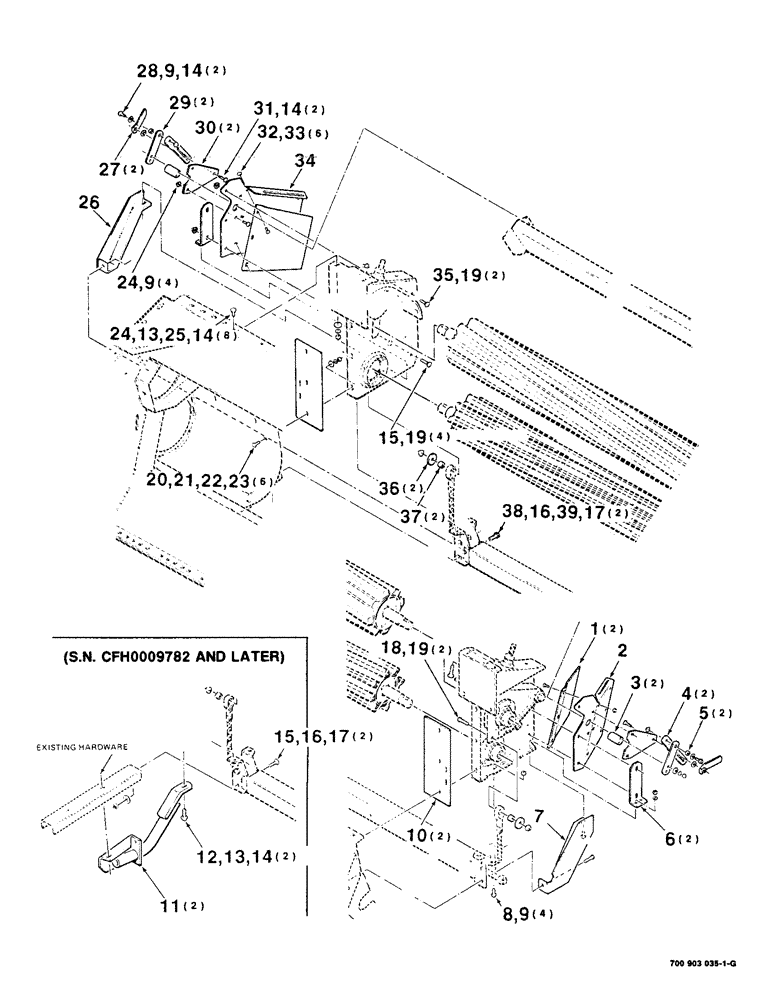

Запчасти Case IH 8380 (5-04) - HAY CONDITIONER (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
700109693
SHIELD
- shingle
2шт.
2
700115155
SUPPORT
- forming shield, left
1шт.
3
700115281
PIVOT
- shield
2шт.
4
700115282
PIVOT
STRAP - adjustment
2шт.
5
159806
SPACER
2шт.
6
700115292
BACK-UP RING
REINFORCMENT - panel, end
2шт.
7
700115284
BACK-UP RING
REINFORCMENT - left
1шт.
8
121-226
SERRATED BOLT,Hex, 3/8" - 16 x 1"
4шт.
9
231-5146
FLANGE NUT,3/8"-16
10шт.
10
700110186
STEEL PLATE
SHIM
2шт.
11
700121443
SUPPORT
2шт.
12
121-237
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
3/8-16 X 1-1/4 HWHMS
2шт.
13
425-106
NUT,3/8"-16, Cl 5
10шт.
14
496-11041
WASHER,13/32" x 13/16" x .065", HDN
3/8 P
14шт.
15
433-820
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 X 1-1/4 RHSNB
6шт.
16
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
4шт.
17
495-21056
WASHER,1/2"
1/2 P
4шт.
18
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
2шт.
19
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
8шт.
20
111-237
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5
BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5
6шт.
21
425-105
NUT,5/16"-18, G5
6шт.
23
496-21034
WASHER,11/32" x 11/16" x 0.89", HDN
6шт.
24
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
3/8-16 X 1 RHSNB
12шт.
25
492-11038
LOCK WASHER,3/8"
8шт.
26
700115285
BACK-UP RING
REINFORCMENT - right
1шт.
27
6456750
HANDLE
ASSEMBLY
2шт.
28
154273C1
BOLT,Hex Serr, 3/8" - 16 x 1", Spcl
3/8-16 X 1 HFSS
2шт.
29
700115283
STRAP
2шт.
30
700115291
LARGE PLATE
PLATE - mounting
2шт.
31
433-620
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5
2шт.
32
412-48
CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2
1/4-20 X 1/2 RHSNB
6шт.
34
700115156
SUPPORT
- forming shield, right
1шт.
35
433-816
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
1/2-13 X 1 RHSNB
2шт.
36
76737
WASHER
2шт.
37
428938
SPACER
2шт.
38
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
2шт.
39
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
Выбрано товаров: 39
