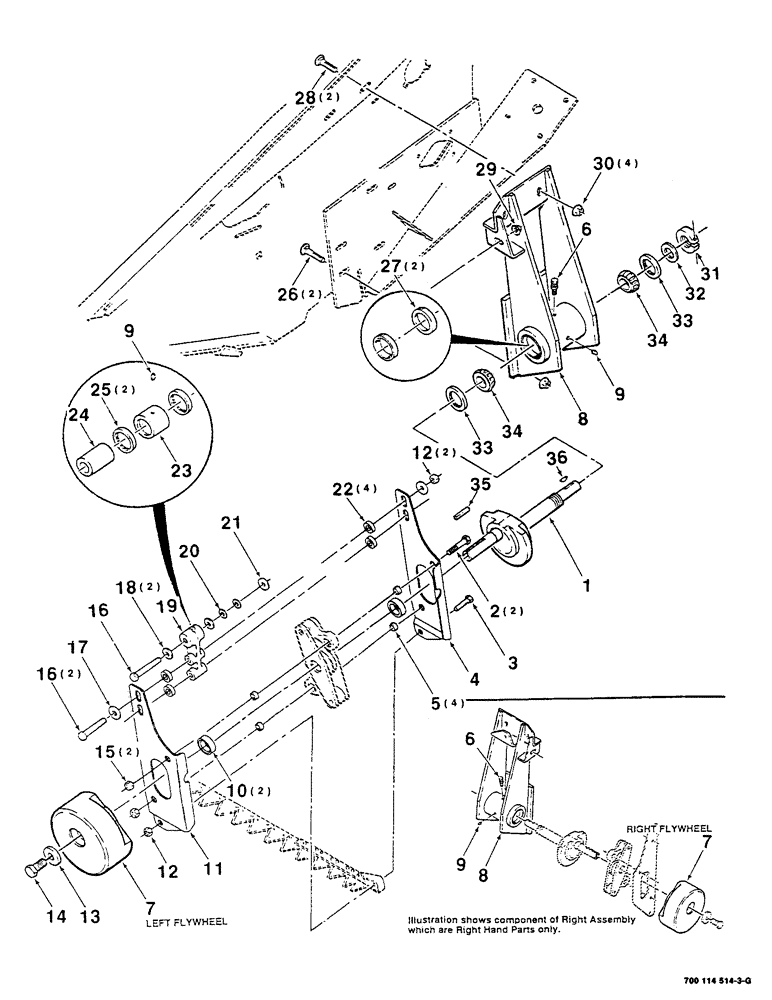

Запчасти Case IH 8380 (3-10) - SICKLE SWAYBAR ASSEMBLY, RIGHT AND LEFT, SERIAL NUMBER CFH0010163 AND LATER (09) - CHASSIS

1

700124293

PINION

CRANK - Pitman

1шт.

2

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4-10 X 3-1/4 C

2шт.

3

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

4

700124298

LARGE PLATE

PLATE - swaybar

1шт.

5

700124304

SPACER

4шт.

6

152127H1

BREATHER,1/8"-27, Short

PLUG - vent

1шт.

7

700124299

FLYWHEEL

1шт.

8

761312

KEY

5/16 X 5/16 X 2-1/2 KEY

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

10

700124303

SPACER

2шт.

11

700124296

LARGE PLATE

PLATE - swaybar

1шт.

12

429-1010

NUT,5/8"-11, G8

3шт.

13

700114639

WASHER

1шт.

14

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

15

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 J

2шт.

16

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

5/8-11 X 3-3/4 C, grade 8

3шт.

17

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

18

700119659

WASHER,16.66mm ID x 44.45mm OD x 6.35mm Thk

2шт.

19

700114625

LINK

ASSEMBLY - upper

1шт.

20

495-11066

WASHER,5/8", SAE

5/8 X 14 WIDE RIM MACHINERY BUSHING

1шт.

21

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

1шт.

22

700124306

SPACER

4шт.

23

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle

1шт.

24

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

1шт.

25

697494R91

OIL SEAL

SEAL - grease

2шт.

26

700709172

SQUARE BOLT

5/8-11 X 1-3/4 RHSNB, grade 8

2шт.

27

170254R1

BEARING, CUP

BEARING - cup

2шт.

28

700709171

SQUARE BOLT

5/8-11 X 1-1/4 RHSNB, grade 8

2шт.

29

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN

1шт.

30

7704919

FLANGE NUT,Flg, 5/8"-11, G8

5/8-11 HFN, grade 8

4шт.

31

700706453

COLLAR

- clamp, thread

1шт.

32

NLS

NO LONGER SERVICED

1шт.

33

700706454

SEAL

- grease

2шт.

34

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

BEARING - cone

2шт.

35

700114608

HOUSING

FRAME HOUSING - swaybar, left

1шт.

700114609

HOUSING

FRAME HOUSING - swaybar, right

1шт.

36

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.
