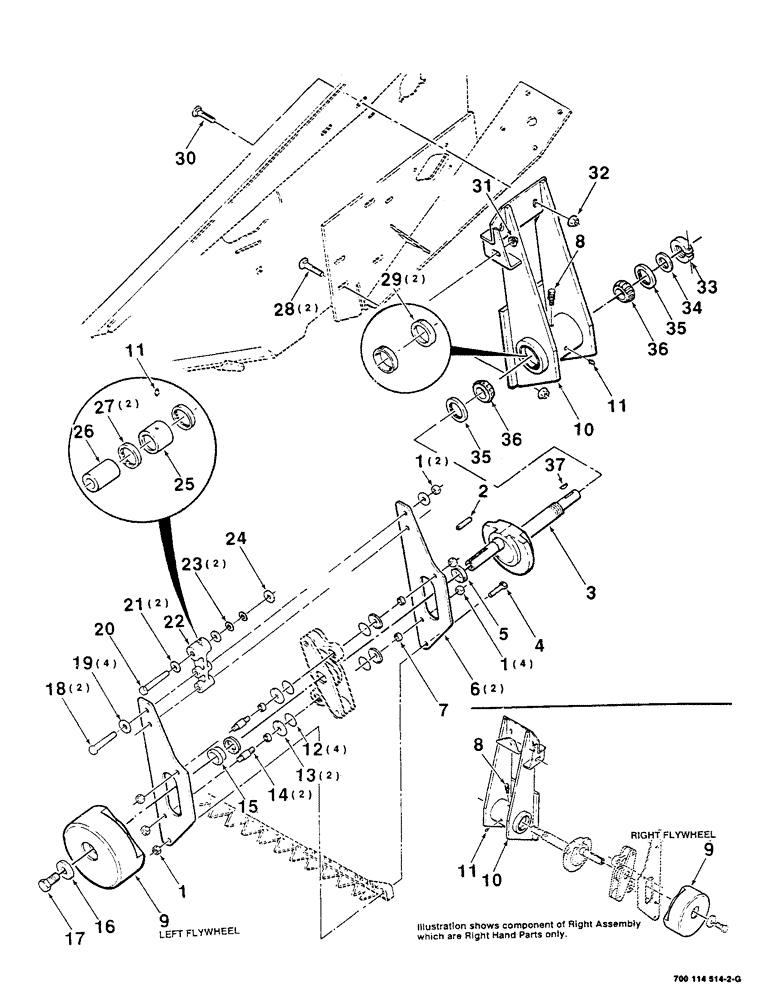

Запчасти Case IH 8380 (3-08) - SICKLE SWAYBAR ASSEMBLY, RIGHT AND LEFT, SERIAL NUMBER CFH0009782 THRU CFH0010162 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
429-1010
NUT,5/8"-11, G8
7шт.
2
761312
KEY
5/16 X 5/16 X 2-1/2 KEY
1шт.
3
700114622
PITMAN
CRANK - Pitman
1шт.
4
413-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
1шт.
5
700709815
RUBBER SEAL
- grease
1шт.
6
700114636
PLATE
- swaybar, half
2шт.
7
700114633
SPACER
1шт.
8
152127H1
BREATHER,1/8"-27, Short
PLUG - vent
1шт.
9
700117842
BALER FLYWHEEL
FLYWHEEL - left
1шт.
700117843
BALER FLYWHEEL
FLYWHEEL - right
1шт.
10
700114608
HOUSING
FRAME HOUSING - swaybar, left
1шт.
700114609
HOUSING
FRAME HOUSING - swaybar, right
1шт.
11
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
2шт.
12
8744187
O-RING,39.7mm ID x 44.93mm OD x 2.69mm
4шт.
13
700709814
WASHER
WASHER
2шт.
14
700114635
PIN,16.99mm OD x 77mm L
- link
2шт.
15
700121402
SPACER
1шт.
16
700114639
WASHER
1шт.
17
25863R1
BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8
1шт.
18
326-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 8
2шт.
19
1660993
WASHER
4шт.
20
326-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8
1шт.
21
700119659
WASHER,16.66mm ID x 44.45mm OD x 6.35mm Thk
2шт.
22
700114625
LINK
ASSEMBLY - upper
1шт.
23
495-11066
WASHER,5/8", SAE
5/8 X 14 WIDE RIM MACHINERY BUSHING
2шт.
24
495-21069
WASHER,5/8"
5/8 WIDE PLAIN WASHER
1шт.
25
B18254
NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W
BEARING - needle
1шт.
26
700114599
BUSHING,16.27mm ID x 25.55mm OD x 38mm L
1шт.
27
697494R91
OIL SEAL
SEAL - grease
2шт.
28
700709172
SQUARE BOLT
5/8-11 X 1-3/4 RHSNB, grade 8
4шт.
29
170254R1
BEARING, CUP
BEARING - cup
2шт.
30
700709171
SQUARE BOLT
5/8-11 X 1-1/4 RHSNB, grade 8
1шт.
32
7704919
FLANGE NUT,Flg, 5/8"-11, G8
5/8-11 HFN, grade 8
1шт.
33
700706453
COLLAR
- clamp, thread
1шт.
34
51200383
BUSHING
1шт.
35
700706454
SEAL
- grease
2шт.
36
298194R91
ROLLER BEARING,44.45mm ID x 29.37mm W
BEARING - cone
2шт.
37
126-36
WOODRUFF KEY,#23, 5/16" x 1 3/8"
1шт.
Выбрано товаров: 39
