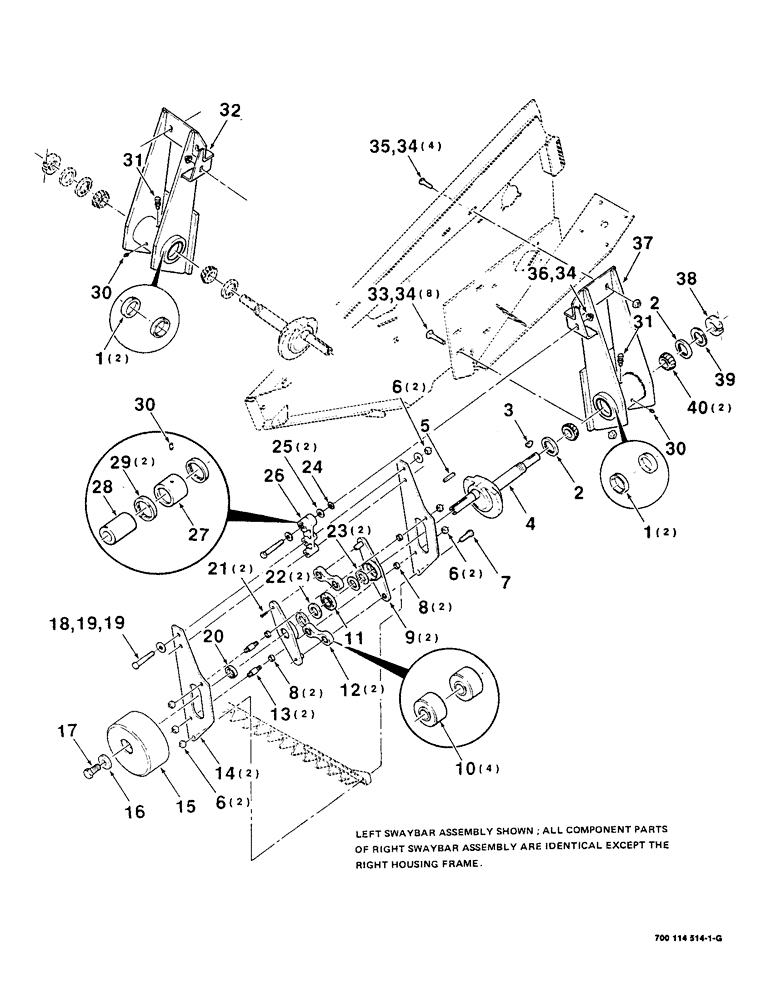

Запчасти Case IH 8380 (3-06) - SICKLE SWAYBAR ASSEMBLY, RIGHT AND LEFT, SERIAL NUMBER CFH0009501 THRU CFH0009781 (09) - CHASSIS

1

170254R1

BEARING, CUP

BEARING - cup

2шт.

2

700706454

SEAL

- grease

2шт.

3

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.

4

700114622

PITMAN

CRANK - Pitman

1шт.

5

761312

KEY

5/16 X 5/16 X 2-1/2 KEY

1шт.

6

429-1010

NUT,5/8"-11, G8

6шт.

7

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

8

700114633

SPACER

4шт.

9

700114628

COVER PLATE

PLATE

2шт.

700121401

COVER PLATE

PLATE

4шт.

10

7714629

BALL BEARING,17mm ID x 40mm OD x 20.64mm W

BEARING - cylindrical

4шт.

11

173809C91

BEARING ASSY,35mm ID x 80mm OD x 21mm W

BEARING - cylindrical

1шт.

12

700114630

LINK ASSY.

LINK ASSEMBLY

2шт.

13

700114635

PIN,16.99mm OD x 77mm L

- link

2шт.

14

700114636

PLATE

- swaybar, half

2шт.

15

700114638

BALER FLYWHEEL

FLYWHEEL

1шт.

700117842

BALER FLYWHEEL

FLYWHEEL - left

1шт.

700117843

BALER FLYWHEEL

FLYWHEEL - right

1шт.

16

700114639

WASHER

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

18

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

19

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

20

700114634

SPACER

1шт.

21

164-130

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 1/4"

1/2-13 X 1-1/4 HSFCSHCS

2шт.

22

700114632

WASHER

- special

2шт.

23

700708612

WASHER

- felt

2шт.

24

495-11066

WASHER,5/8", SAE

5/8 X 14 GAUGE MACHINERY BUSHING

2шт.

25

6855423

WASHER

2шт.

26

700114625

LINK

ASSEMBLY - upper

1шт.

27

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING

1шт.

28

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

1шт.

29

697494R91

OIL SEAL

SEAL - grease

2шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

31

152127H1

BREATHER,1/8"-27, Short

PLUG - vent

1шт.

32

700114609

HOUSING

FRAME HOUSING - swaybar, right

1шт.

33

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

5/8-11 X 1-34 RHSNB

8шт.

34

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

5/8-11 HFN

13шт.

35

7870132

BOLT,Sq Nk, 5/8" - 11 x 1 1/4", Gr 5

5/8-11 X 1-1/4 RHSNB

4шт.

36

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 X 3-1/4 C

1шт.

37

700114608

HOUSING

FRAME HOUSING - swaybar, left

1шт.

38

700706453

COLLAR

- clamp

1шт.

39

52290

BUSHING

1шт.

40

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

BEARING - cone

2шт.
