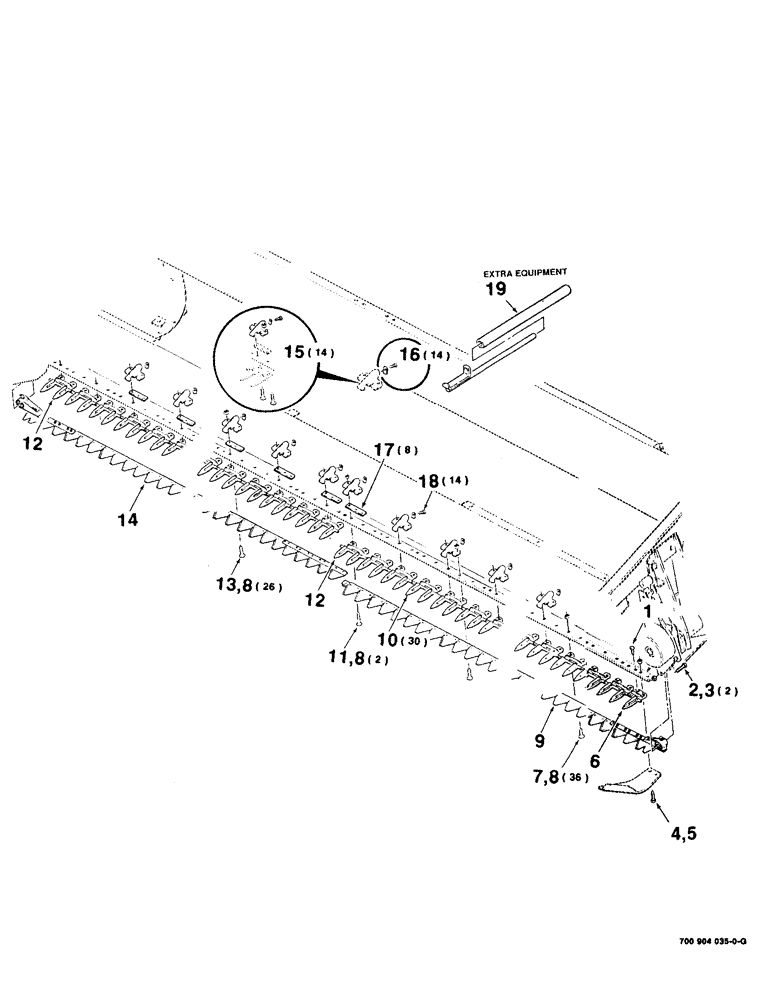

Запчасти Case IH 8380 (3-02) - SICKLE AND GUARD ASSEMBLIES (09) - CHASSIS

2

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

3

429-1010

NUT,5/8"-11, G8

2шт.

4

700706821

SCREW

7/16-20 X 1-1/2 FTC

1шт.

5

425-117

NUT,7/16"-20, G5

1шт.

6

NLS

NO LONGER SERVICED

- sickle, CLAMP - hose, small

1шт.

7

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

36шт.

8

425-107

NUT,7/16"-14, G5

7/16-14 H

64шт.

9

700114592

KNIFE

SICKLE ASSEMBLY - left top serrated (Riveted)

1шт.

700715167

KNIFE ASSY

SICKLE ASSEMBLY - left top serrated (Bolt-On)

1шт.

10

700707147

GUARD

- double

30шт.

11

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 RHSNB

2шт.

12

700707464

GUARD

- double, center

2шт.

13

111-416

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G5

7/16-14 X 2 RHSNB

26шт.

14

700114593

KNIFE

SICKLE ASSEMBLY - right top serrated (Riveted)

1шт.

700715168

KNIFE ASSY

SICKLE ASSEMBLY - right top serrated (Bolt-On)

1шт.

15

700117849

PACKAGE

HOLDOWN - adjustable, kit

14шт.

16

700107019

KIT

WELD - nut and adjustable screw kit (Packaged 10 per bag)

14шт.

17

700111956

PLATE

SHIM

8шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

14шт.

19

6135081

GUARD

STRAIGHTENER - guard

1шт.
