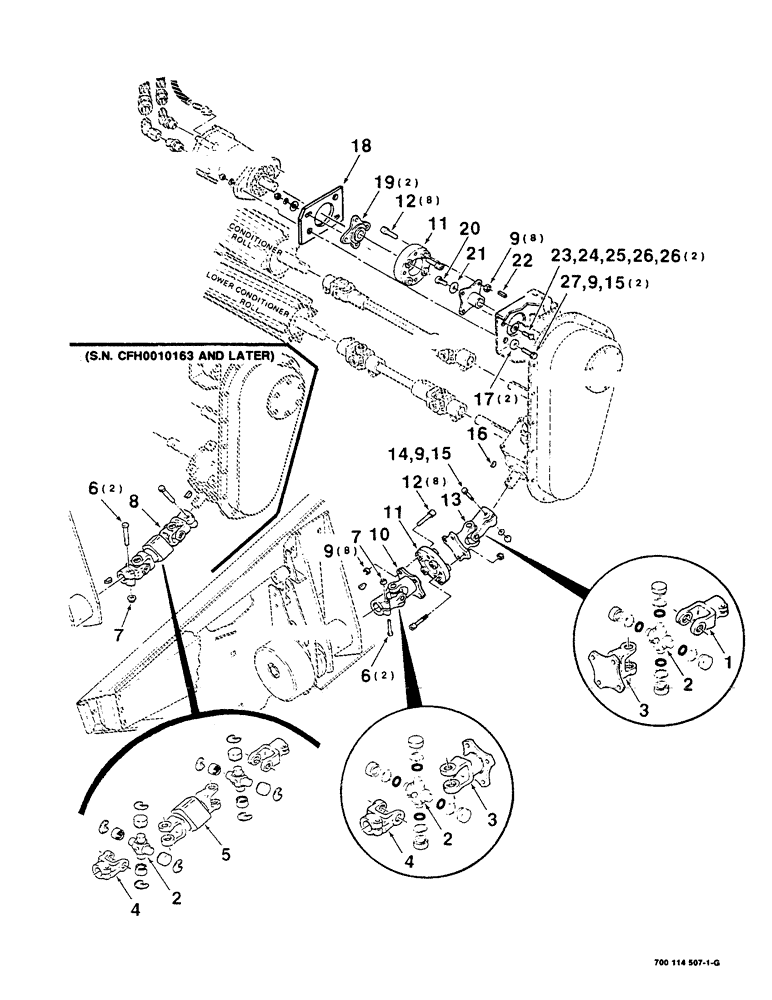

Запчасти Case IH 8380 (2-18) - FLEX COUPLING AND DOUBLE U-JOINT ASSEMBLY (09) - CHASSIS

1

757716

CLAMP

YOKE - end

1шт.

2

757443

U-JOINT SPIDER

JOURNAL REPAIR KIT

2шт.

3

700706589

YOKE

WITH PLATE

2шт.

4

700705535

YOKE

- end

1шт.

5

700712426

SHOCK ABSORBER

SHOCKSORBER - U-Joint

1шт.

6

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

7

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN

1шт.

8

700712191

DRIVE SHAFT

U-JOINT ASSEMBLY

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

19шт.

10

700706590

DRIVE SHAFT

U-JOINT ASSEMBLY - swaybar, end

1шт.

11

700706587

FLEXIBLE COUPLING

COUPLER - rubber

2шт.

12

700706548

HEX SOC SCREW

1/2-13 X 2-1/4 HSHCS

16шт.

13

700706591

UNIVERSAL JOINT

U-JOINT ASSEMBLY - chainbox end

1шт.

14

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

16

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.

17

319558

SPACER

2шт.

18

6459721

MOUNTING PARTS

PLATE - adapter

1шт.

19

700114803

HUB

AND PLATE

2шт.

20

700707050

SCREW

1/2-13 X 1 C, grade 8

1шт.

21

6165138

WASHER

WASHER

1шт.

22

O3312AB

KEY

1/4 X 1/4 X 1-1/2 KEY

1шт.

23

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

24

425-105

NUT,5/16"-18, G5

2шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

27

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.
