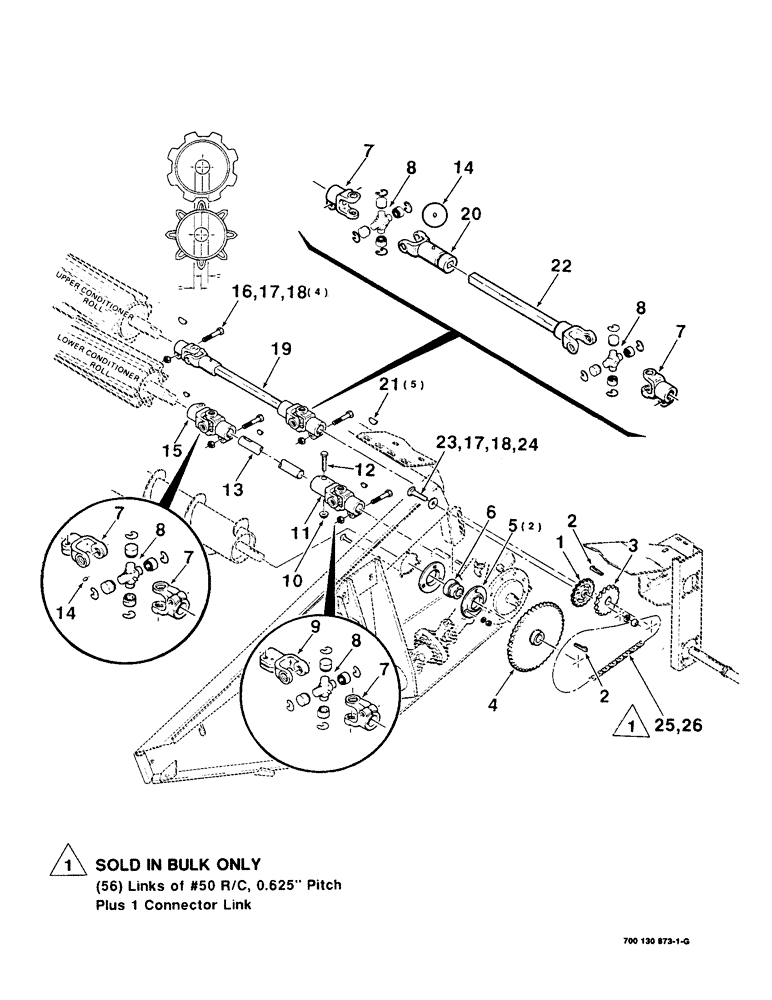

Запчасти Case IH 8380 (2-16) - HAY CONDITIONER DRIVE ASSEMBLY (09) - CHASSIS

1

7087398

DRIVE SPROCKET

IDLER SPROCKET

1шт.

2

61424

KEY

1/4 X 1/4 X 1-1/4 GIB KEY

2шт.

3

700708837

SPROCKET

1шт.

4

700114748

SPROCKET

50-P, 45 tooth

1шт.

5

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

2шт.

6

557995R11

COLLAR

BEARING - spherical

1шт.

7

757716

CLAMP

YOKE - clamp

5шт.

8

757443

U-JOINT SPIDER

JOURNAL REPAIR KIT

4шт.

9

700705535

YOKE

- clamp

1шт.

10

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN

1шт.

11

700705515

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

12

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

13

700114742

SHAFT

- drive, conditioner

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

15

700705457

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

16

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

5шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

19

700706597

UNIVERSAL JOINT

U-JOINT - double, assembly

1шт.

20

700704955

YOKE

- end

1шт.

21

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

5шт.

22

700707159

YOKE

AND SHAFT

1шт.

23

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

1шт.

24

495-21056

WASHER,1/2"

1/2 P

1шт.

25

700704752

CHAIN

ROLLER CHAIN #50 (10 foot bulk)

1шт.

26

700709539

LINK,15.88mm Pitch

CONNECTOR LINK #50

1шт.

700702950

LINK

CONNECTOR LINK #50

1шт.
