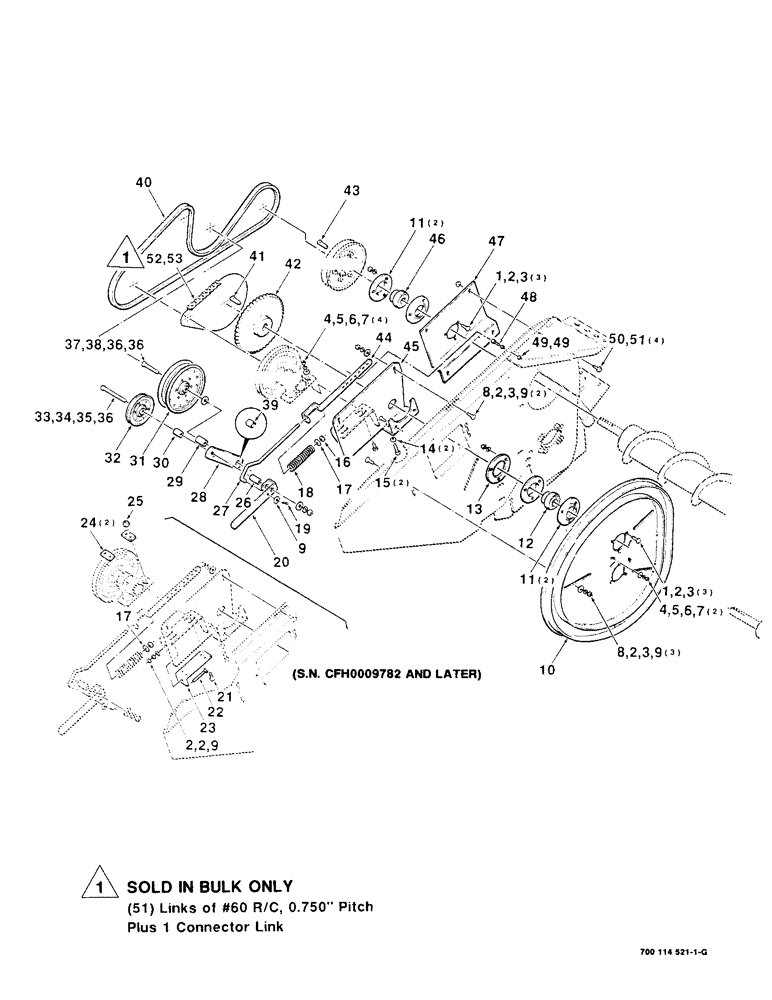

Запчасти Case IH 8380 (2-10) - REEL DRIVE ASSEMBLY (09) - CHASSIS

1

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

6шт.

2

425-106

NUT,3/8"-16, Cl 5

13шт.

3

492-11038

LOCK WASHER,3/8"

11шт.

4

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

6шт.

5

425-105

NUT,5/16"-18, G5

6шт.

6

492-11031

LOCK WASHER,5/16"

6шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

8

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

5шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 P

7шт.

10

700109619

CAM

CAM TRACK (S.N. CFH0009501 thru -0009781)

1шт.

10

700120804

ECCENTRIC

CAM TRACK (S.N. CFH0009782 and later)

1шт.

11

T27207

FLANGED BEARING

bearing

2шт.

12

517645R11

COLLAR

BEARING, Lock

1шт.

13

700117899

SHIM

1шт.

14

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

15

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

2шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

17

495-21044

WASHER,3/8"

1шт.

18

1712967

SPRING

compression

1шт.

19

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

20

700114571

LEVER

1шт.

21

26-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

1шт.

22

7770472

BOLT

3/8-16 X 2-1/2 FTRHSNB

1шт.

23

700121000

BRACKET

(S.N. CFH0009782 and later)

1шт.

24

700116223

COVER PLATE

(S.N. CFH0009782 and later)

2шт.

25

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN

1шт.

26

700114572

TUBE,19.05 mm OD, 43 mm Length

pivot

1шт.

27

700114570

ROD

spring

1шт.

28

700114727

ARM

idler

1шт.

29

1661945

SPACER

1шт.

30

6167472

SPACER

1шт.

31

54510

FRONT IDLER

SHEAVE - flat

1шт.

32

053553

PULLEY

V-IDLER

1шт.

33

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 X 5 C

1шт.

34

425-108

NUT,1/2" - 13, Gr 5

1шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

36

495-21056

WASHER,1/2"

3шт.

37

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

1шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

39

740217

BUSHING

oilite

1шт.

40

55574

BELT

V-BELT

1шт.

41

61895

BUCKET TOOTH KEY

5/16 X 5/16 X 2-1/4 GIB KEY

1шт.

42

700114718

SPROCKET

60-P, 44-tooth

1шт.

43

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 X 1/4 X 1-1/2 GIB KEY

1шт.

44

700114569

ANCHOR

adjustable

1шт.

45

700114732

SUPPORT

reel, right

1шт.

46

455104R11

COLLAR

BEARING, Lock

1шт.

47

700114731

SUPPORT

auger, bearing

1шт.

48

61-32516

HEX SOC SCREW,1/4"-20 x 1"

1шт.

49

425-104

NUT,1/4"-20, Cl 5

2шт.

50

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

51

231-5146

FLANGE NUT,3/8"-16

4шт.

52

241-1316

LINK,19.05mm Pitch

ROLLER CHAIN #60 (10 foot bulk)

1шт.

53

241-1416

LINK

CONNECTOR #60

1шт.
