(2-04) - GEARBOX ASSEMBLY, RIGHT, 700706594 GEARBOX COMPLETE

Запчасти Case IH 8380 (2-04) - GEARBOX ASSEMBLY, RIGHT, 700706594 GEARBOX COMPLETE (09) - CHASSIS

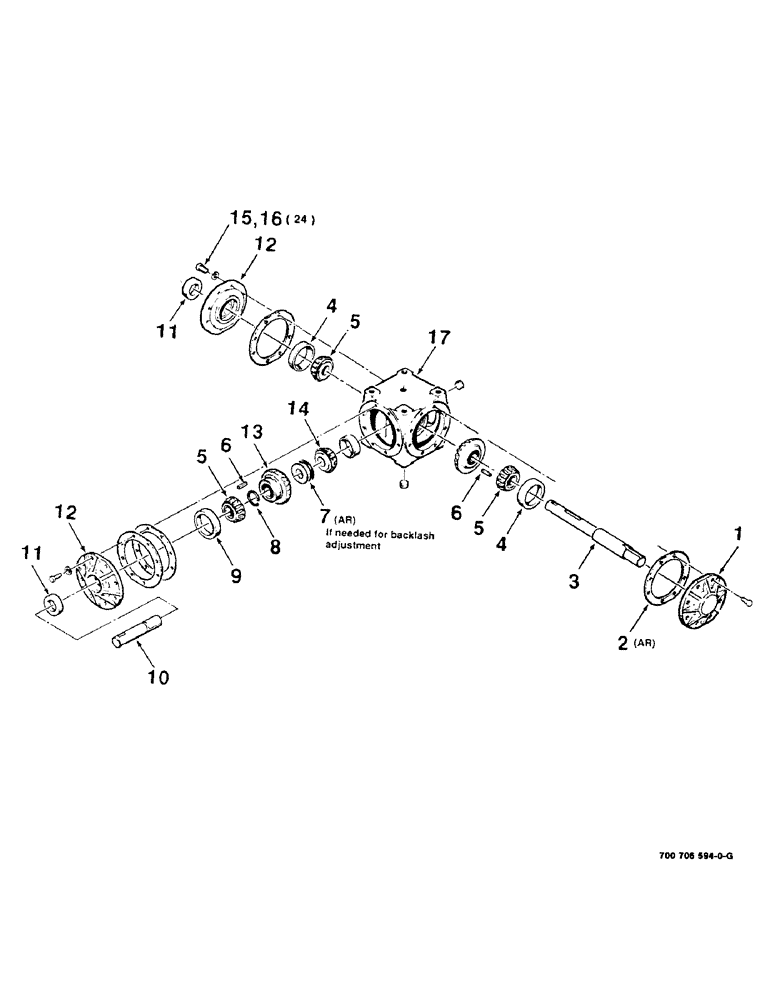

Схема запчастей Case IH 8380 - (2-04) - GEARBOX ASSEMBLY, RIGHT, 700706594 GEARBOX COMPLETE (09) - CHASSIS
5
4
5
16
11
8
11
5
2
14
9
15
10
12
7
13
17
12
6
3
6
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700706594

GEARBOX

COMPLETE

1шт.

1

757054

CAP

- blank

1шт.

2

1702216

GASKET

- aluminum .015

1шт.

1702224

GASKET

- aluminum .005

1шт.

1702232

GASKET

- aluminum .003

1шт.

3

700707149

SHAFT

- long

1шт.

4

710350

BRACKET,69.037 mm OD x 15.875 mm

BEARING - cup

2шт.

5

T20939

ROLLER BEARING,1.25" ID x 0.771"

BEARING - cone

3шт.

6

753574

KEY

- tapered

2шт.

7

753426

SHIM

.005

1шт.

753434

SHIM

.010

1шт.

8

757229

RING, SNAP

RING - retainer

1шт.

9

651817R1

BEARING CUP

BEARING - cup

1шт.

10

700707148

SHAFT

- short

1шт.

11

76961C1

OIL SEAL

- oil

2шт.

12

757120

CAP

2шт.

13

8806317

GEAR-SET

SET OF MATCHED GEARS AND 2 TAPER KEYS

1шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - cone

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

24шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

17

700100292

HOUSING

1шт.
