Запчасти Case IH 8380 (2-02) - DRIVE ASSEMBLY (09) - CHASSIS

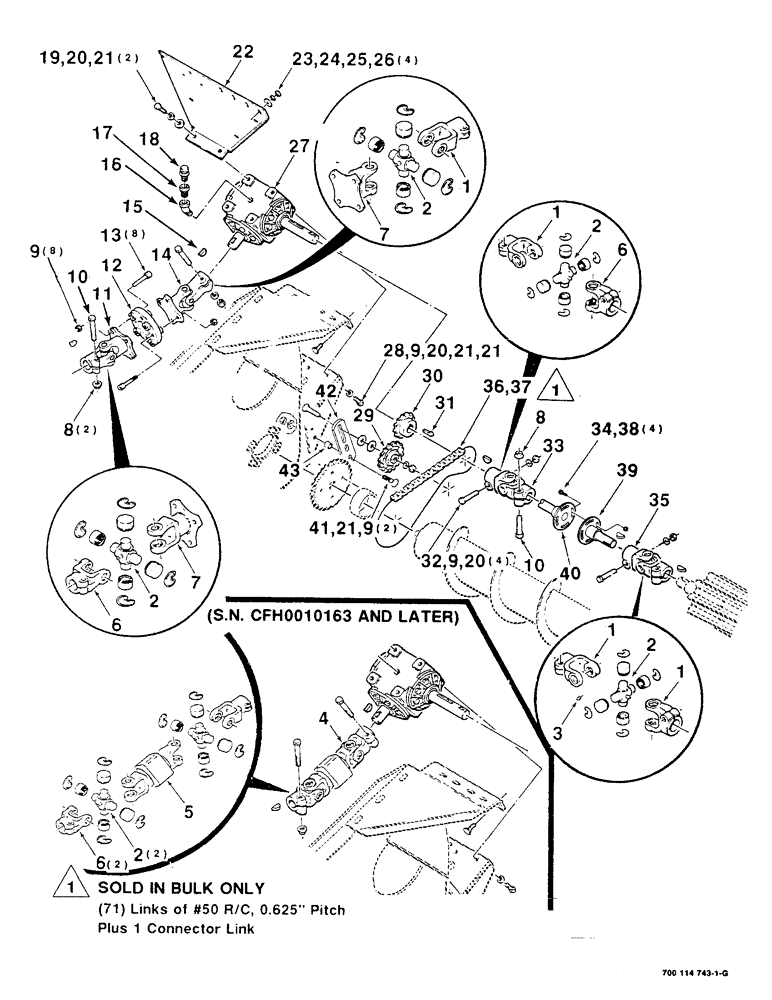

Схема запчастей Case IH 8380 - (2-02) - DRIVE ASSEMBLY (09) - CHASSIS
2
6
26
36
34
11
28
38
7
31
35
14
17
19
32
23
9
13
18
22
6
30
12
9
10
7
2
2
42
27
24
20
21
16
1
20
1
4
41
43
40
9
15
25
2
2
21
5
37
3
8
21
21
33
20
10
6
29
1
8
1
39

Артикул

Название

Примечание

Количество

1

757716

CLAMP

YOKE - end

4шт.

2

757443

U-JOINT SPIDER

CROSS AND BEARING KIT

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

4

700712191

DRIVE SHAFT

U-JOINT ASSEMBLY

1шт.

5

700712426

SHOCK ABSORBER

SHOCKSORBER - U-Joint

1шт.

6

700705535

YOKE

- end

2шт.

7

700706589

YOKE

WITH PLATE

2шт.

8

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

15шт.

10

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

11

700706590

DRIVE SHAFT

U-JOINT ASSEMBLY - swaybar end

1шт.

12

700706587

FLEXIBLE COUPLING

COUPLER - rubber

1шт.

13

700706548

HEX SOC SCREW

1/2-13 X 2-1/4 HSHCS

8шт.

14

700706591

UNIVERSAL JOINT

U-JOINT ASSEMBLY - chainbox end

1шт.

15

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

5шт.

16

137894

ELBOW,45 Degree, 1/2" NPT Street

1/2 X 45 DEGREE STREET ELL

1шт.

17

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1/8 X 1/2 BUSHING - reducer

1шт.

18

152127H1

BREATHER,1/8"-27, Short

PLUG - vent

1шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

11шт.

21

495-21056

WASHER,1/2"

1/2 P

6шт.

22

700114739

PANEL

GUSSET - gearbox

1шт.

23

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

24

425-106

NUT,3/8"-16, Cl 5

4шт.

25

492-11038

LOCK WASHER,3/8"

4шт.

26

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 P

4шт.

27

700706594

GEARBOX

ASSEMBLY

1шт.

28

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

1шт.

29

7087398

DRIVE SPROCKET

SPROCKET - idler, 50-P, 17 tooth

1шт.

30

700708837

SPROCKET

50-P, 16 tooth

1шт.

31

61424

KEY

1/4 X 1/4 X 1-1/4 GIB KEY

1шт.

32

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

4шт.

33

700705515

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

34

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

4шт.

35

700705457

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

36

700704752

CHAIN

ROLLER CHAIN - #50 (10 foot bulk)

1шт.

37

700702950

LINK

CONNECTOR LINK - #50

1шт.

700709539

LINK,15.88mm Pitch

CONNECTOR LINK - #50

1шт.

38

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

4шт.

39

700133248

SHAFT

WA

1шт.

40

700133251

SHAFT

H/C DRIVE

1шт.

41

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

2шт.

42

700124907

STRAP

- idler mounting

1шт.

43

6214639

SPACER

1шт.

Выбрано товаров: 44
