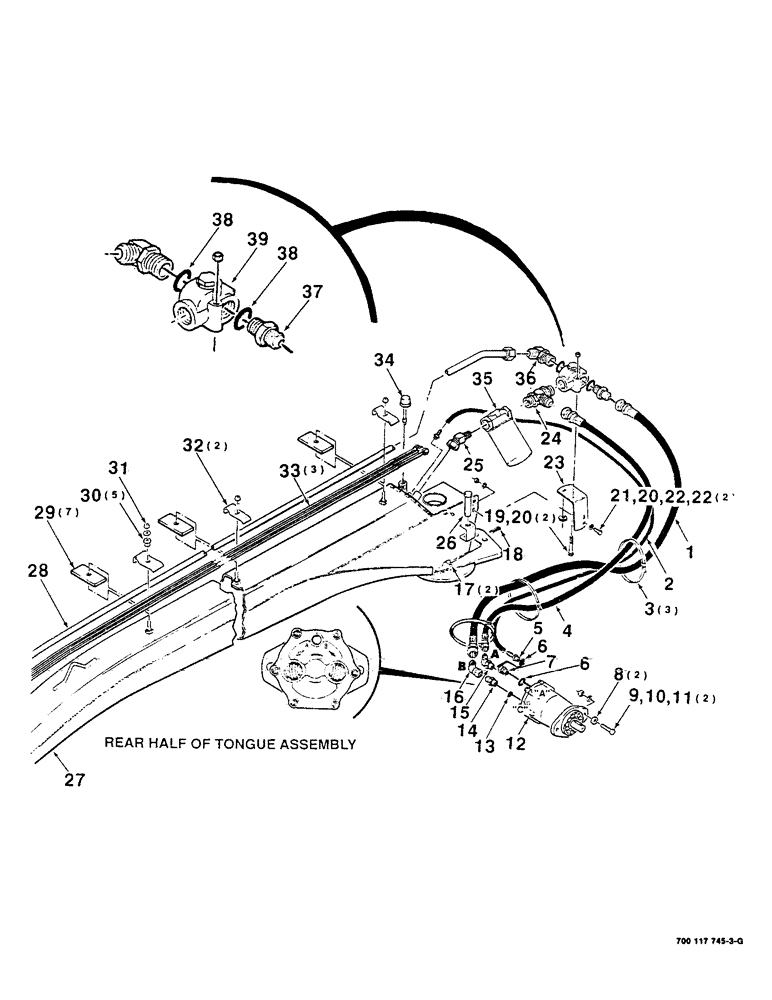

Запчасти Case IH 8380 (8-20) - TONGUE AND HYDROSTATIC DRIVE ASSEMBLY, REAR, SERIAL NUMBER CFH0009637 AND LATER (08) - HYDRAULICS

1

700706817

HOSE

- hydraulic

1шт.

2

700706819

HOSE

- hydraulic

1шт.

3

529070

CABLE TIE,368.3mm L

CABLE - tie

3шт.

4

700711014

HYDRAULIC HOSE,19.05 mm ID x 2700.00 mm, SAE 100R4

19.05 mm ID x 2700.00 mm, SAE 100R4

1шт.

5

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

3/8-18 NPTF

2шт.

6

738468

O-RING

2шт.

7

218-5253

HYD CONNECTOR,9/16" - 18 ORB x 3/8" - 18 NPT

SWIVEL - straight, O-Ring

1шт.

8

319558

SPACER

2шт.

9

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

7842925

HYDRAULIC MOTOR

MOTOR ASSEMBLY - hydraulic

1шт.

700728299R

REMAN-HYD MOTOR

8380 TONGUE AND HYDROSTATIC DRIVE ASSEMBLY, REAR, SERIAL NUMBER CFH0009637 AND LATER, Reman for New P/N 7842925

1шт.

700728299C

REMAN-HYD MOTOR

Return Number

1шт.

13

738484

O-RING

1шт.

14

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, O-Ring

1шт.

15

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

45 DEGREE O-RING CONNECTOR

1шт.

16

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree swivel

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

18

62455

PIN, SPLIT (COTTER)

.178 HAIRPIN COTTER

1шт.

19

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

2шт.

20

425-106

NUT,3/8"-16, Cl 5

4шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

22

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 P

4шт.

23

700121199

SUPPORT

- valve

1шт.

24

700710138

FITTING

- tee

1шт.

25

700710994

FITTING

1 X 45 DEGREE ELBOW

1шт.

26

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

1 X 4 CLEVIS PIN

1шт.

27

700115323

TOW BAR

TONGUE

1шт.

28

700710964

TUBE

LINE - hydraulic

1шт.

29

700702496

PAD

7шт.

30

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING - rubber

5шт.

31

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

1шт.

32

6232300

CLAMP

2шт.

33

700706816

TUBE ASSY.,9.52 mm OD, 6096 mm Length

LINE - hydraulic

3шт.

34

6485924

DIPSTICK

1шт.

35

700714984

FILTER

(S.N. CFH0009501 thru CFH0009636)

1шт.

700710972

FILTER

ASSEMBLY (S.N. CFH0009637 and later)

1шт.

36

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

37

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Straight 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

38

738476

O-RING

2шт.

39

700707271

VALVE POPPET

VALVE - relief

1шт.
