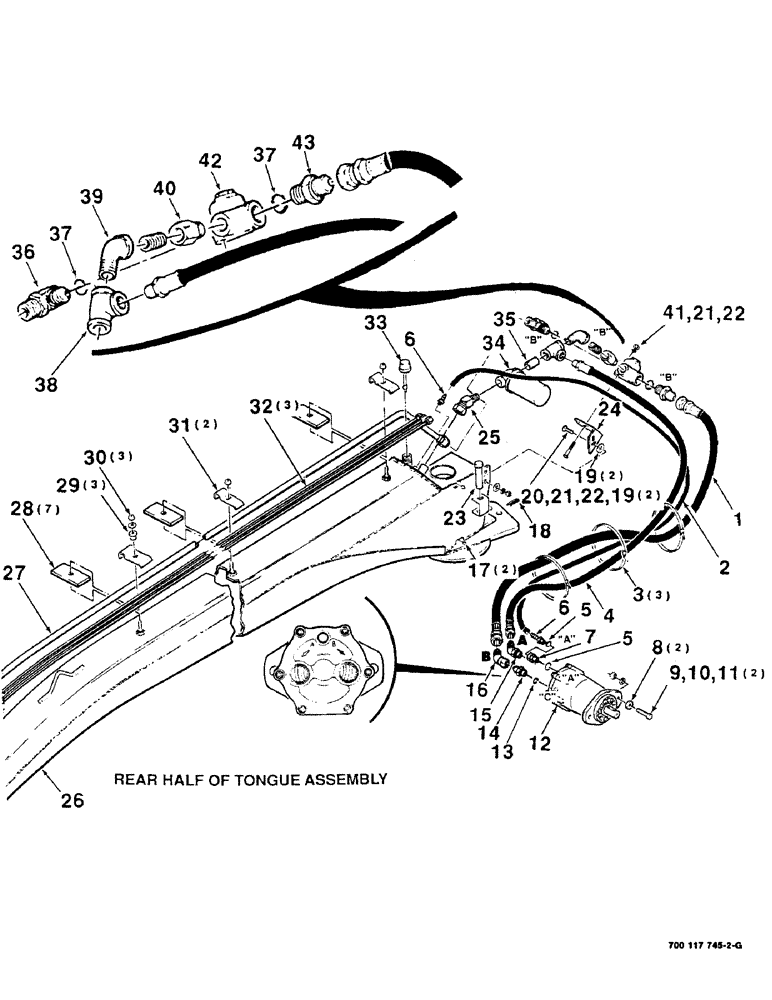

Запчасти Case IH 8380 (8-18) - TONGUE AND HYDROSTATIC DRIVE ASSEMBLY, REAR, SERIAL NUMBER CFH0009501 THRU CFH0009636 (08) - HYDRAULICS

1

700706817

HOSE

- hydraulic

1шт.

2

700706819

HOSE

- hydraulic

1шт.

3

7021728

STRAP

CABLE - tie

3шт.

4

700706818

HOSE ASSY.

HOSE - hydraulic

1шт.

5

738468

O-RING

2шт.

6

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

3/8-18 NPTF

2шт.

7

218-5253

HYD CONNECTOR,9/16" - 18 ORB x 3/8" - 18 NPT

SWIVEL - straight, O-Ring

2шт.

8

319558

SPACER

2шт.

9

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

7842925

HYDRAULIC MOTOR

MOTOR ASSEMBLY - hydraulic

1шт.

700728299R

REMAN-HYD MOTOR

8380 TONGUE AND HYDROSTATIC DRIVE ASSEMBLY, REAR, SERIAL NUMBER CFH0009501 THRU CFH0009636, Reman for New P/N 7842925

1шт.

700728299C

REMAN-HYD MOTOR

Return Number

1шт.

13

738484

O-RING

1шт.

14

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, O-Ring

1шт.

15

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

45 DEGREE O-RING CONNECTOR

1шт.

16

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree swivel

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

18

062455

PIN, SPLIT (COTTER)

.178 HAIRPIN COTTER

1шт.

19

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 P

4шт.

20

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

21

425-106

NUT,3/8"-16, Cl 5

3шт.

22

492-11038

LOCK WASHER,3/8"

3шт.

23

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

1 X 4 CLEVIS PIN

1шт.

24

700115137

MOUNTING PARTS

MOUNTING - valve

1шт.

25

218-940

ELBOW,45 Degree, 1" NPTF Male x 1" NPSM Fem Sw

1 X 45 DEGREE ELBOW

1шт.

26

700115323

TOW BAR

TONGUE

1шт.

27

700706815

TUBE ASSY.,25.4 mm OD, 2280, 215 mm Length

LINE - hydraulic (98.3 inches lg)

1шт.

28

700702496

PAD

7шт.

29

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING - rubber

3шт.

30

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

3шт.

31

6232300

CLAMP

2шт.

32

700706816

TUBE ASSY.,9.52 mm OD, 6096 mm Length

LINE - hydraulic

3шт.

33

6485924

DIPSTICK

1шт.

34

7742679

FILTER

1шт.

Ref 34...element for filter 7742679 is 7033616

1шт.

35

746883

PIPE

1 CLOSE NIPPLE

2шт.

36

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

37

738476

O-RING

3шт.

38

746842

TEE

FEMALE TEE

1шт.

39

7746001

BALL

1 X 45 DEGREE STREET ELL

1шт.

40

218-5092

ADAPTER

CONNECTOR

1шт.

41

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

3/8-16 X 3 RHSNB

1шт.

42

700707271

VALVE POPPET

VALVE - relief

1шт.

43

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Straight 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.
