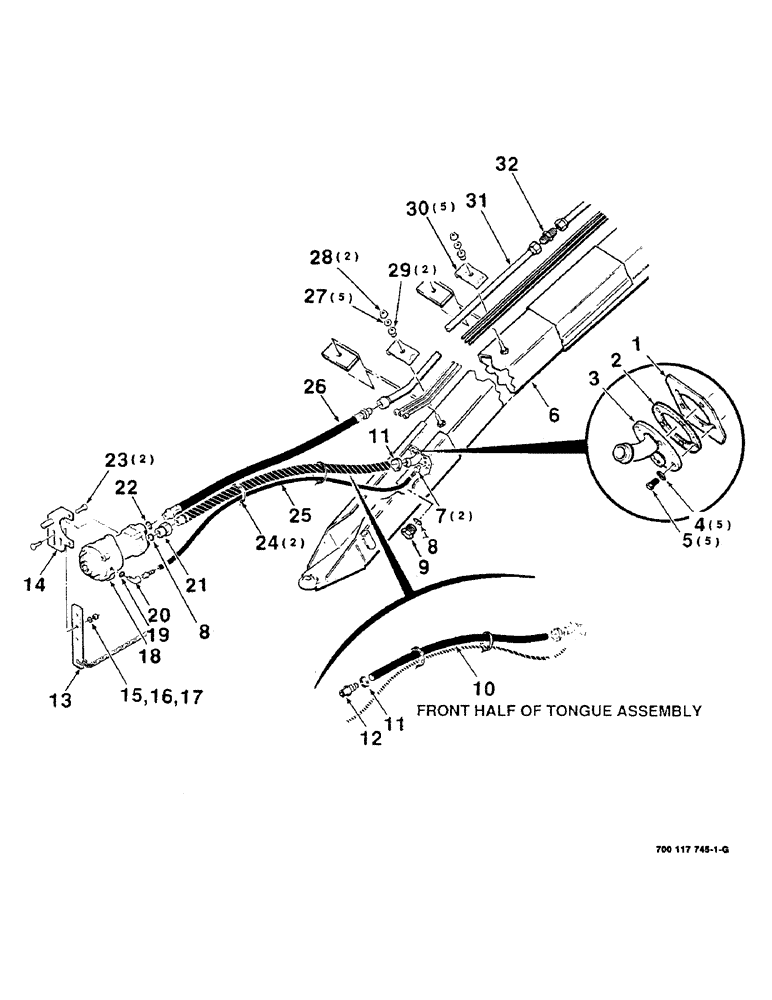

Запчасти Case IH 8380 (8-16) - TONGUE AND HYDROSTATIC DRIVE ASSEMBLY, FRONT (08) - HYDRAULICS

1

6231799

CAP

- front

1шт.

2

844134

GASKET

1шт.

3

6453161

COVER

1шт.

4

51200167

WASHER

- nylon

5шт.

5

703066

SCREW

5/16-18 X 3/4 C

5шт.

6

700115323

TOW BAR

TONGUE

1шт.

7

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

3/8-18 NPTF INSERT

2шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

2шт.

9

8746117

PLUG

1шт.

10

700707320

HOSE

- hydraulic

1шт.

11

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

2шт.

12

8046005

NIPPLE, LUBE

1-1/2 NPTF M/INSERT

1шт.

13

1661984

ARM

ASSEMBLY - torque

1шт.

14

1661987

SUPPORT

1шт.

15

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

18

1714021

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic

1шт.

18

700712139R

REMAN-GEARBOX

Reman for new PN 1714021

1шт.

18

700712139C

CORE-GEARBOX

Return number

1шт.

700712137

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic

1шт.

700712139R

REMAN-GEARBOX

Reman for new PN 700712137

1шт.

700712139C

CORE-GEARBOX

Return number

1шт.

19

738468

O-RING

1шт.

20

7791916

ELBOW

90 DEGREE O-RING ELBOW

1шт.

21

7746076

ADAPTER

CONNECTOR - O-Ring

1шт.

22

738476

O-RING

1шт.

23

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

24

529070

CABLE TIE,368.3mm L

CABLE - tie

2шт.

25

843367

HYDRAULIC HOSE,0.38" ID x 58.00"

HOSE - hydraulic

1шт.

26

7872070

HOSE,25.4mm ID x 1092.2mm L, SAE 100R12

- hydraulic

1шт.

27

495-21044

WASHER,3/8"

5шт.

28

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

2шт.

29

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING - rubber

2шт.

30

700115334

CLAMP

5шт.

31

700706851

TUBE ASSY.,25.4 mm OD, 3800, 225 mm Length

LINE - hydraulic (158.2 inches lg)

1шт.

32

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

- male

1шт.
