(8-14) - FILTER AND RELIEF VALVE ASSEMBLY

Запчасти Case IH 8380 (8-14) - FILTER AND RELIEF VALVE ASSEMBLY (08) - HYDRAULICS

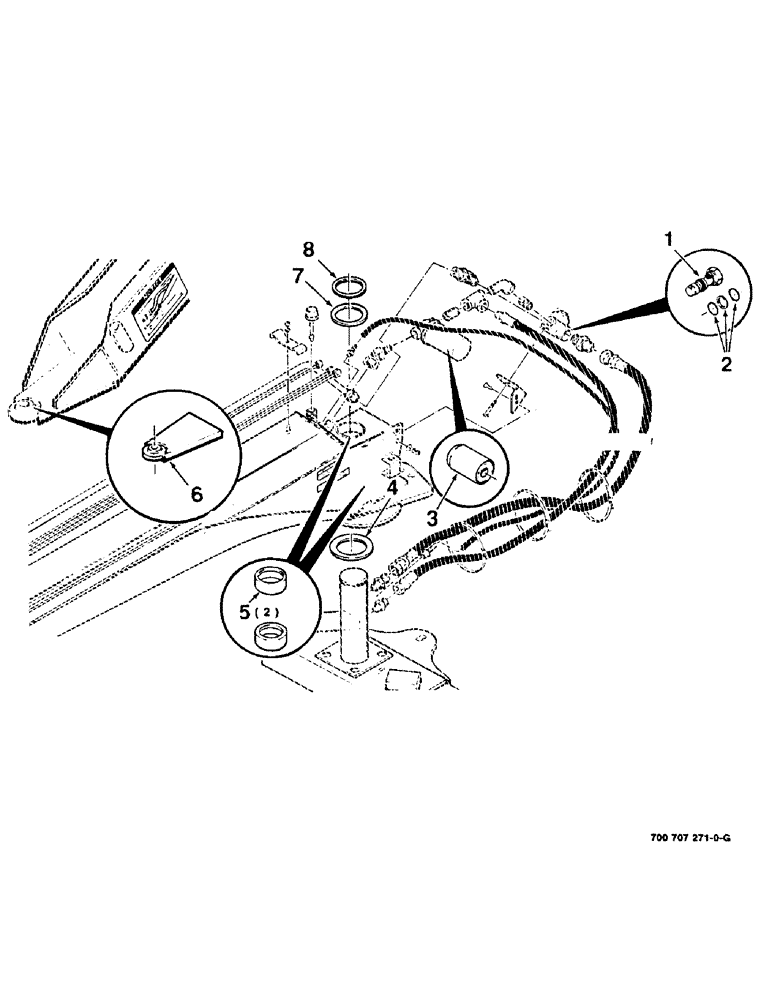

Схема запчастей Case IH 8380 - (8-14) - FILTER AND RELIEF VALVE ASSEMBLY (08) - HYDRAULICS
1
4
5
2
6
3
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707363

VALVE

- relief

1шт.

2

H758979

O-RING

KIT

1шт.

3

7033616

FILTER

ELEMENT - filter

1шт.

4

700115300

WASHER

WASHER - wear plate, lower

1шт.

5

7852379

BRONZE BUSHING,102.06mm ID x 114.4mm OD x 44.45mm L

BUSHING - bronze

2шт.

6

1661998

LARGE PLATE

HITCH PLATE - replacement

1шт.

7

700115299

WASHER

WASHER - wear plate, upper

1шт.

8

700706827

RING, SNAP

RETAINER RING

1шт.
