(8-12) - MASTER, CYLINDER, HYD., HEADER LIFT ASSY., 700712016 HYD. CYL. COMPLETE, S/N CFH0010163 & LATER

Запчасти Case IH 8380 (8-12) - MASTER, CYLINDER, HYD., HEADER LIFT ASSY., 700712016 HYD. CYL. COMPLETE, S/N CFH0010163 & LATER (08) - HYDRAULICS

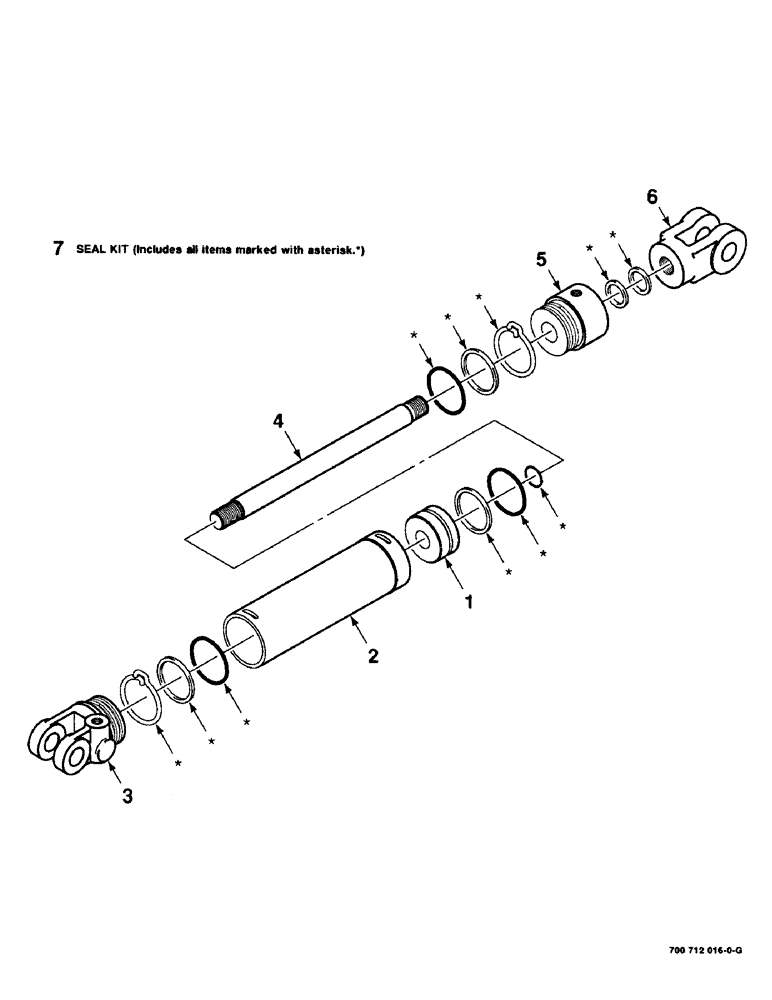

Схема запчастей Case IH 8380 - (8-12) - MASTER, CYLINDER, HYD., HEADER LIFT ASSY., 700712016 HYD. CYL. COMPLETE, S/N CFH0010163 & LATER (08) - HYDRAULICS
2
6
5
4
7
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712016

CYLINDER

HYDRAULIC CYLINDER ASSEMBLY COMPLETE

1шт.

1

700710154

PISTON

- cylinder

1шт.

2

700712105

SLEEVE CYLINDER

BARREL

1шт.

3

700707662

HEAD

- cylinder

1шт.

4

700700100

ROD

- piston

1шт.

5

700712106

LIFT CYLINDER

BEARING - cylinder rod

1шт.

6

50-2079T1

END

CLEVIS - rod end

1шт.

7

700710155

SEAL PACKAGE

SEAL KIT, Includes items in art marked with asterisk.

1шт.
