(8-10) - MASTER, CYLINDER, HYD., HEADER LIFT ASSY., 700707473 HYD. CYL. COMPLETE, S/N CFH0009501 - CFH0010162

Запчасти Case IH 8380 (8-10) - MASTER, CYLINDER, HYD., HEADER LIFT ASSY., 700707473 HYD. CYL. COMPLETE, S/N CFH0009501 - CFH0010162 (08) - HYDRAULICS

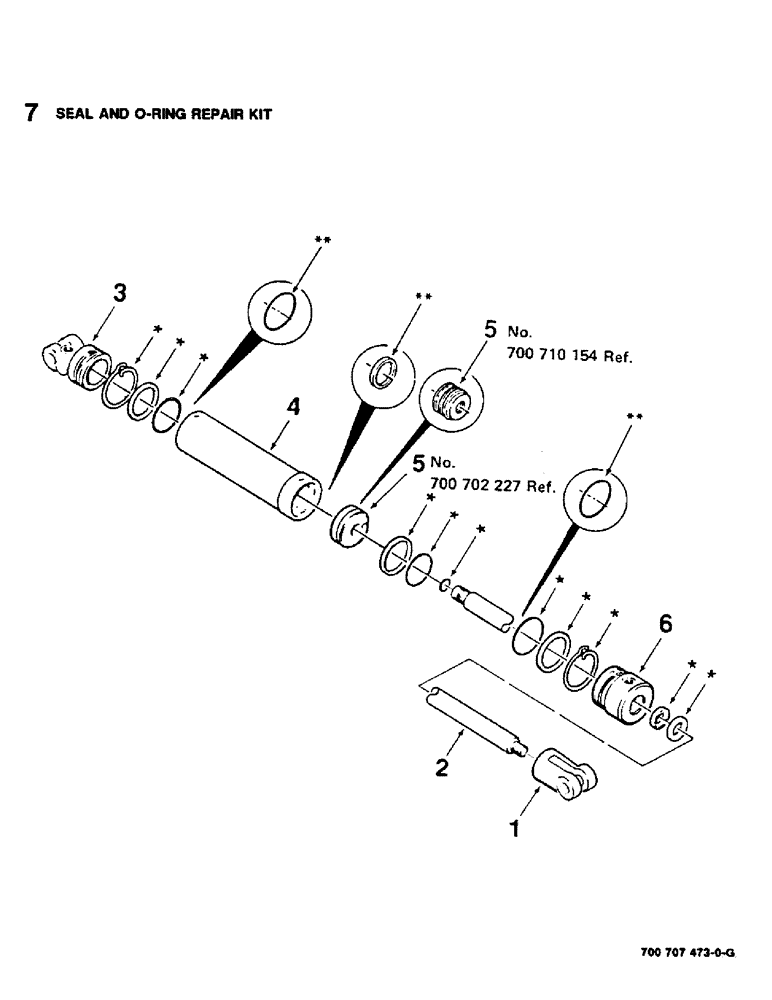

Схема запчастей Case IH 8380 - (8-10) - MASTER, CYLINDER, HYD., HEADER LIFT ASSY., 700707473 HYD. CYL. COMPLETE, S/N CFH0009501 - CFH0010162 (08) - HYDRAULICS
1
2
5
3
5
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700707473

CYLINDER

HYDRAULIC CYLINDER ASSEMBLY COMPLETE

1шт.

1

50-2079T1

END

CLEVIS - rod end

1шт.

2

700700100

ROD

- piston

1шт.

3

700707662

HEAD

WITH CLEVIS

1шт.

4

700707663

SLEEVE CYLINDER

BARREL

1шт.

700710153

SLEEVE CYLINDER

BARREL

1шт.

5

700702227

JACK PISTON

PISTON - cylinder (Sub. 700710154 piston & 700710155 seal and O-Ring repair kit)

1шт.

700710154

PISTON

- cylinder

1шт.

700710155

SEAL PACKAGE

SEAL AND O-RING REPAIR KIT

1шт.

6

700703067

BUSHING

BEARING - cylinder rod

1шт.

7

8734261

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk.

1шт.

700710155

SEAL PACKAGE

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk & double asterisk.

1шт.
