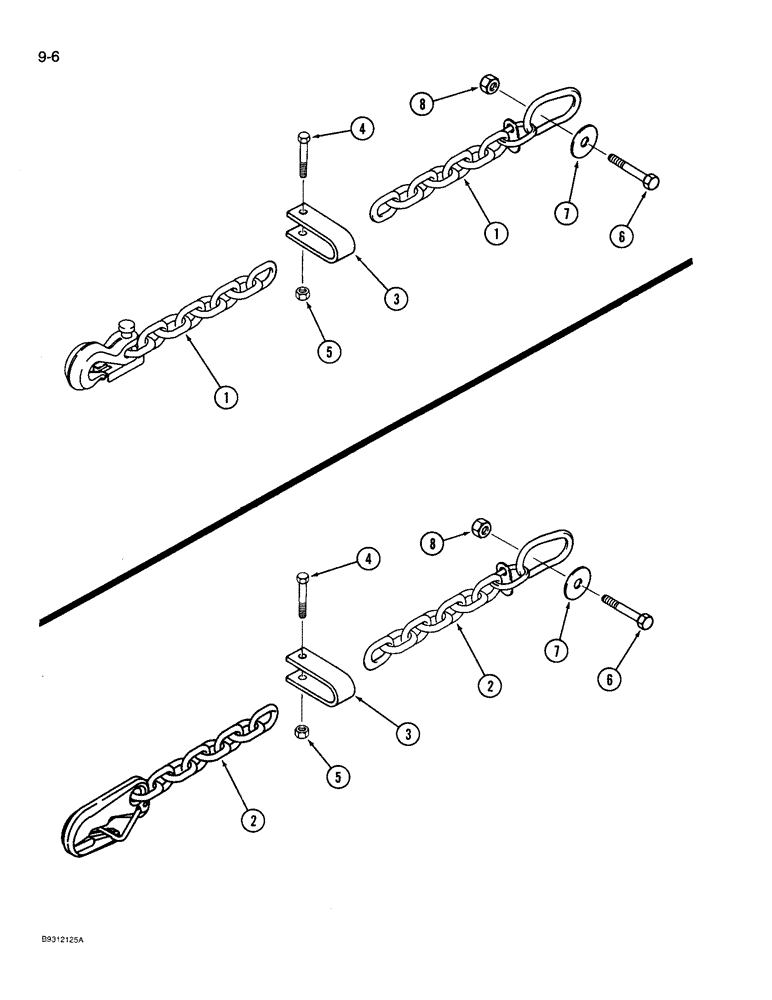

Запчасти Case IH 3309 (9-06) - HITCH CHAIN (03) - CHASSIS/MOUNTED EQUIPMENT

1

100682C3

CHAIN (AG)

CHAIN - hitch, 10,000 pound, if used

1шт.

2

700705598

CHAIN (CE)

CHAIN - hitch, 10,000 pound, if used

1шт.

61913C92

PACKAGE

KIT - clevis and hardware, safety chain

1шт.

3

148558C1

CLEVIS

- safety chain

1шт.

4

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

5

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

6

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

7

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch

1шт.

8

231-14412

LOCK NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC

1шт.
