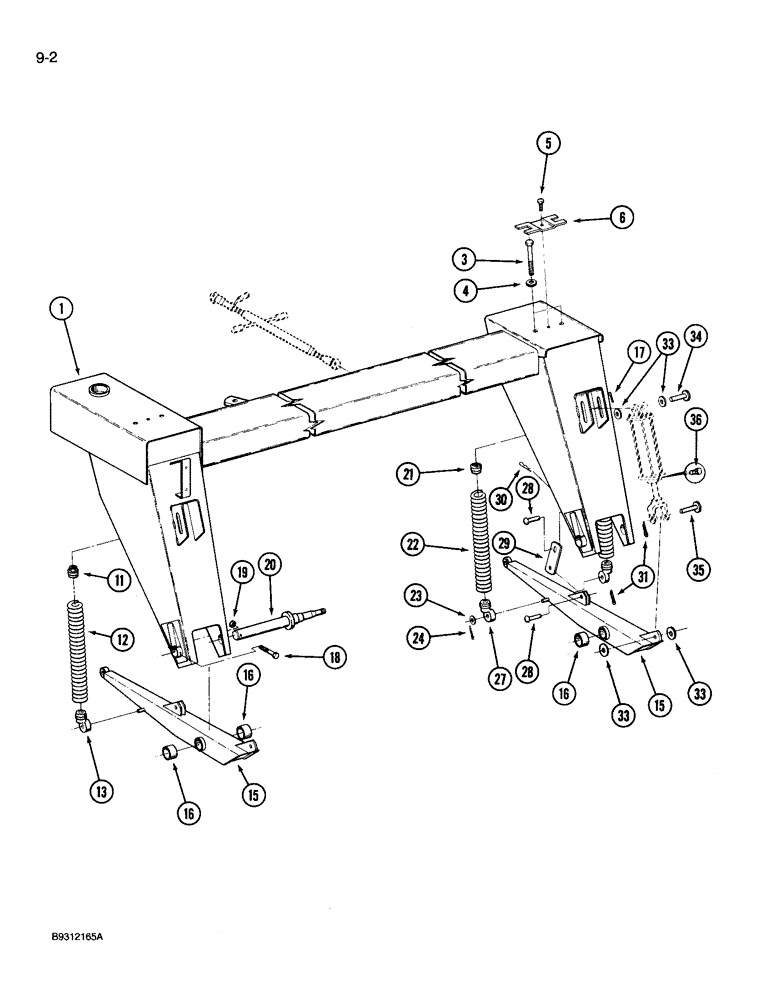

Запчасти Case IH 3309 (9-02) - MAIN FRAME AND HEADER FLOAT (03) - CHASSIS/MOUNTED EQUIPMENT

1

ZA527931

FUNNEL

FRAME - main

1шт.

3

540872R1

BOLT,5/8" - 11 x 14", Cl B-2

- hex, 5/8 NC x 14 inch

4шт.

4

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

4шт.

5

28015R1

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - hex washer head tapping, 3/8 NC x 3/4 inch

2шт.

6

ZA526825

LOCKING DEVICE

RETAINER - float spring

2шт.

11

ZA502035

INSERT

- float spring, left

2шт.

12

ZA526976

SPRING

- float, left

2шт.

13

ZA526461

PLUG

- float spring, left

2шт.

15

ZA526603

ARM

ASSEMBLY - lift

2шт.

16

ZA526610

BUSHING,1.757" ID x 2.004" OD x 1.25"

BEARING - lift arm

2шт.

17

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

18

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

19

231-4116

NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

2шт.

20

ZA526805

SPINDLE

- wheel

2шт.

21

126654C1

PLUG

INSERT - float spring, right

2шт.

22

ZA526974

SPRING

- float, right

2шт.

23

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 3/64 inch

4шт.

24

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

4шт.

27

ZA526460

PLUG

- float spring, right

2шт.

28

540874R1

HEADED PIN,15.88mm OD x 53.57mm L

PIN - headed, 5/8 x 1-7/8 inch

4шт.

29

ZA526930

STRAP

- lift arm

2шт.

30

148155C1

PIN

- cotter, hair type

2шт.

31

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

4шт.

33

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 3/64 inch

8шт.

34

ZA526597

PIN

- headed

2шт.

35

439-51648

HEADED PIN,1" x 3"

PIN - headed, 1 x 3 inch

2шт.

36

684184R1

PLUG

- vent

2шт.
