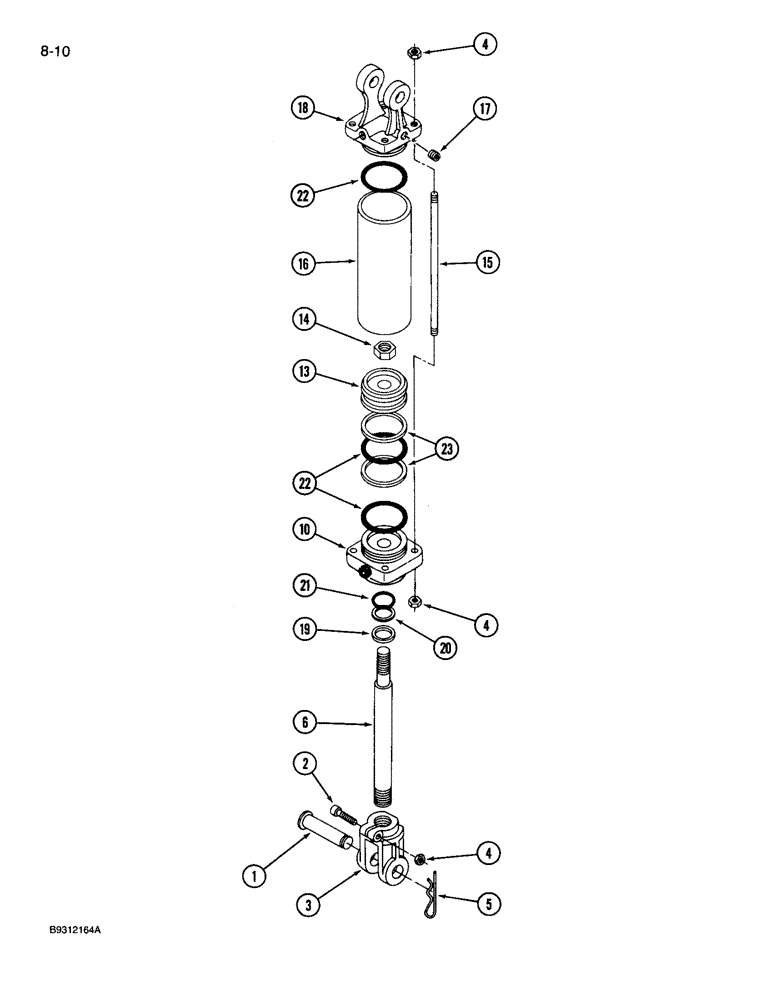

Запчасти Case IH 3309 (8-10) - HEADER LIFT HYDRAULIC CYLINDER (07) - HYDRAULICS

ZA206042

CYLINDER

ASSEMBLY - header lift

2шт.

1

439-51648

HEADED PIN,1" x 3"

PIN - headed, 1 x 3 inch

2шт.

2

380-2628

12 PT SCREW,Flg, 3/8" - 16 x 1 3/4"

SCREW - 12 point head, 3/8 NC x 1-3/4 inch

1шт.

3

ZA207012

CLEVIS

- cylinder piston rod

1шт.

4

425-106

NUT,3/8"-16, Cl 5

9шт.

5

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

6

ZA207011

ROD

- cylinder piston

1шт.

10

ZA207015

HEAD

- cylinder

1шт.

13

ZA207020

PISTON

- cylinder

1шт.

14

274640

LOCK NUT,3/4"-16, GC

NUT - hex lock, 3/4 inch NF, grade 8

1шт.

15

B17260

TIE-ROD

STUD - cylinder tie

4шт.

16

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

17

ZA207024

PLUG

- pipe, cylinder base

1шт.

18

B17277

CLEVIS

BASE - cylinder

1шт.

ZA207009

KIT

- seal

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - wiper

1шт.

20

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - piston

3шт.

23

NSS

NOT SOLD SEPARAT

SEAL - backup

2шт.
