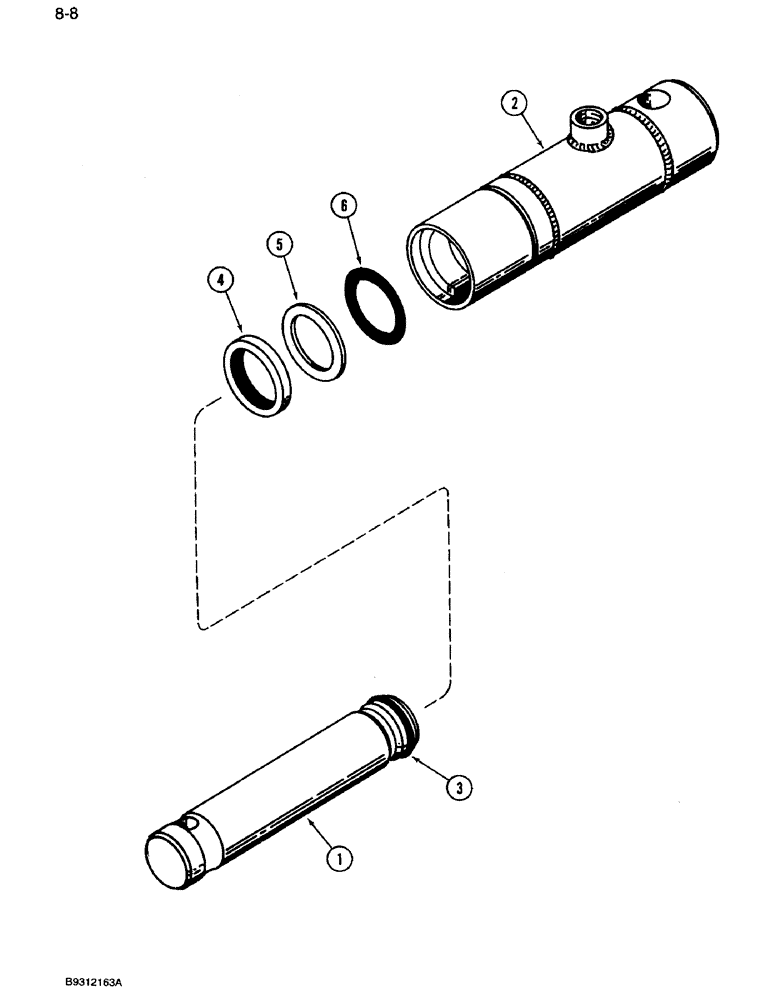

Запчасти Case IH 3309 (8-08) - CONDITIONING ROLL HYDRAULIC CYLINDER (07) - HYDRAULICS

ZA526600

CYLINDER

ASSEMBLY - 1-1/2 ID x 2-1/2 inch stroke, conditioning roll

2шт.

1

ZA526602

ROD

- cylinder piston, for Eaton 40140-ABV cylinder

1шт.

1

ZA106571

ROD

- cylinder piston, for JD Hydraulic 238 cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

The manufacturer's part number is stamped on the cylinder body.

1шт.

Part of seal kit P/N 823375C3 for Eaton 40140-ABV cylinder

1шт.

Part of seal kit P/N ZA106572 for JD Hydraulic 238 cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - piston wiper

1шт.

The manufacturer's part number is stamped on the cylinder body.

1шт.

Part of seal kit P/N 823375C3 for Eaton 40140-ABV cylinder

1шт.

Part of seal kit P/N ZA106572 for JD Hydraulic 238 cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

The manufacturer's part number is stamped on the cylinder body.

1шт.

Part of seal kit P/N 823375C3 for Eaton 40140-ABV cylinder

1шт.

Part of seal kit P/N ZA106572 for JD Hydraulic 238 cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 ID x 3/16 inch

1шт.

The manufacturer's part number is stamped on the cylinder body.

1шт.

Part of seal kit P/N 823375C3 for Eaton 40140-ABV cylinder

1шт.

Part of seal kit P/N ZA106572 for JD Hydraulic 238 cylinder

1шт.

823375C3

SEAL KIT

- seal, for Eaton 40140-ABV cylinder, Includes Refs. 3, 4, 5 and 6

1шт.

The manufacturer's part number is stamped on the cylinder body.

1шт.

ZA106572

SEAL KIT

KIT - seal, for JD Hydraulic 238 cylinder, Includes Refs. 3, 4, 5 and 6

1шт.

The manufacturer's part number is stamped on the cylinder body.

1шт.
