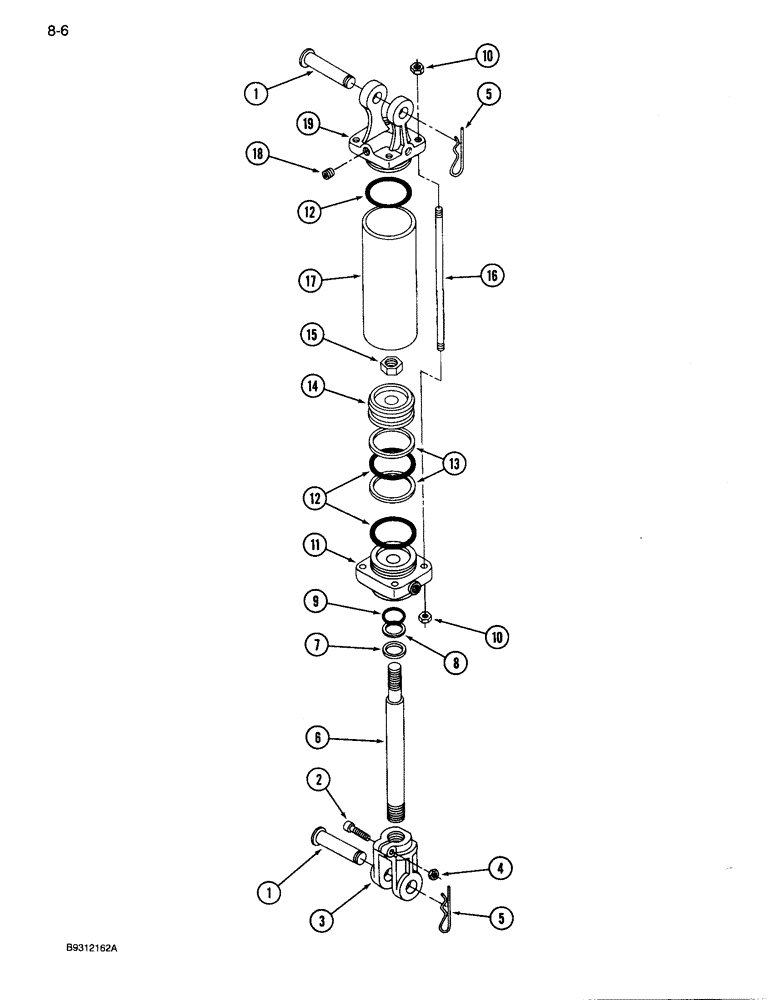

Запчасти Case IH 3309 (8-06) - TONGUE POSITIONING HYDRAULIC CYLINDER (07) - HYDRAULICS

ZA527260

CYLINDER

ASSEMBLY - tongue positioning, 3 inch bore x 8 inch stroke

1шт.

1

27257R1

HEADED PIN,1" x 3"

PIN - headed, 1 x 3 inch

2шт.

2

380-2628

12 PT SCREW,Flg, 3/8" - 16 x 1 3/4"

SCREW - 12 point head, 3/8 NC x 1-3/4 inch

1шт.

3

T55022

CLEVIS

- cylinder rod

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

148155C1

PIN

- cotter, hair type

2шт.

6

B17244

ROD

- piston

1шт.

7

67167C1

OIL SEAL

- wiper

1шт.

Part of seal kit P/N B17231

1шт.

8

B17298

BACK-UP RING

RING - backup

1шт.

Part of seal kit P/N B17231

1шт.

9

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

Part of seal kit P/N B17231

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

11

B17268

HEAD

- cylinder

1шт.

12

238-5334

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

3шт.

Part of seal kit P/N B17231

1шт.

13

B17193

SEALING WASHER

- piston backup

2шт.

Part of seal kit P/N B17231

1шт.

14

B17274

PISTON

- cylinder

1шт.

15

232-46112

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

16

1256443C1

TIE-ROD

ROD - piston

1шт.

17

B17237

BODY - cylinder

1шт.

18

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT square head

1шт.

19

B17280

BASE

- cylinder

1шт.

B17231

KIT

- seal, Includes Refs. 7, 8, 9, 12 and 13

1шт.
