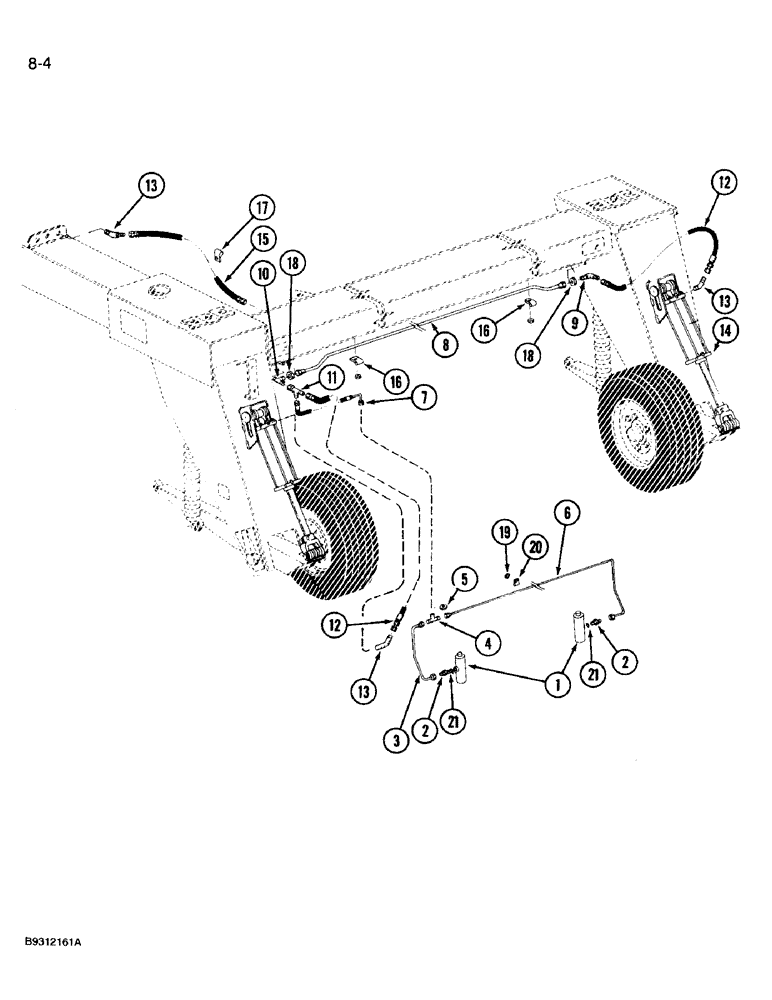

Запчасти Case IH 3309 (8-04) - HEADER LIFT AND CONDITIONING ROLL CYLINDER HYDRAULICS (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - conditioning roll lift, see page 8-9

2шт.

2

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR - 3/8 to 1/4 inch

2шт.

3

ZA526747

TUBE,0.25" OD

- roll lift, left

1шт.

4

218-802

TEE,7/16"-20, 37 Degree, Blkhd

- bulkhead, 7/16-20 inch flared

1шт.

5

9403291

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - bulkhead hex, 7/16 inch NF

1шт.

6

ZA526746

TUBE,0.25" OD

- roll lift, right

1шт.

7

60232C1

HOSE

- header

1шт.

8

ZA526801

TUBE,0.375" OD

- header lift

1шт.

9

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- bulkhead, 9/16-18 inch flared

1шт.

10

218-804

TEE,9/16"-18, 37 Degree, Blkhd

- bulkhead, 9/16-18 inch flared

1шт.

11

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flared

1шт.

12

147888C1

HOSE ASSY.

HOSE - header lift

2шт.

13

218-1095

ELBOW,45 Degree, 9/16-18" 37 Degree x 3/8"-18, NPTF

- 45 degree, 9/16-18 flare x 3/8 inch PT

3шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - header lift, see page 8-11

2шт.

15

91163C1

HYDRAULIC HOSE,9.65mm ID x 1193.8mm L, SAE 100R1

Header Lift and Roll Opening Supply 9.65 mm ID x 1193.80 mm, SAE 100R1

1шт.

16

49845

CLAMP

CLIP - retaining

2шт.

473371R1

FLANGE NUT

NUT - hex flange lock, 3/8 inch NC

2шт.

17

299413C1

CLAMP

- hose, closed coated

1шт.

18

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - bulkhead hex lock, 9/16-18 inch

2шт.

19

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC

3шт.

20

49851

SHIELD

- retaining

3шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
