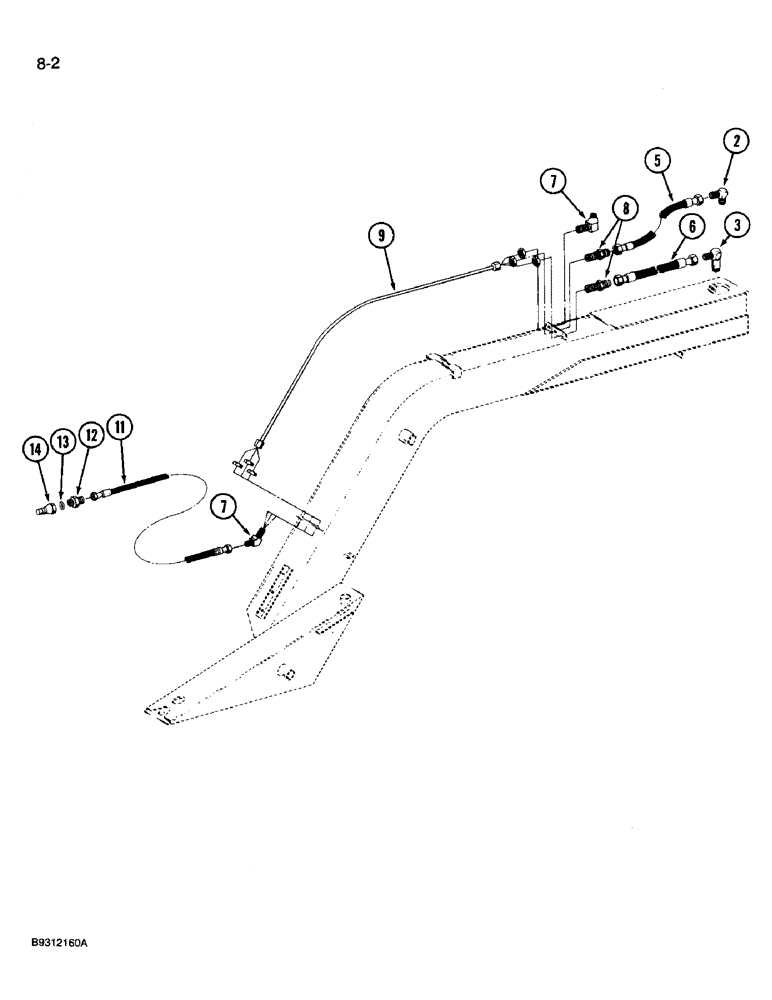

Запчасти Case IH 3309 (8-02) - TONGUE POSITIONING HYDRAULIC SYSTEM (07) - HYDRAULICS

REF

INSTRUCTION

CYLINDER ASSEMBLY - tongue positioning, see page 8-7

1шт.

2

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

3

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 37 degree

1шт.

5

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

- Cylinder outlet, Steering 9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING - reducer, 1/2 x 3/8 inch

2шт.

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - tube, Style B, 1/2 inch

2шт.

6

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

- Inlet 9.52 mm ID x 535.00 mm

1шт.

7

208702C1

ELBOW

ASSEMBLY - bulkhead, 45 degree, 9/16-18 inch flared

4шт.

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - bulkhead hex lock, 9/16-18 inch

4шт.

8

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

2шт.

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - bulkhead hex lock, 9/16-18 inch

2шт.

9

ZA526800

TUBE,0.375" OD

- hitch

3шт.

11

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

HOSE ASSEMBLY - hydraulic, 95 inch long

3шт.

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING - reducer, 1/2 x 3/8 inch

3шт.

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - tube, Style B, 1/2 inch

3шт.

12

ZA502058

UNION

RESTRICTOR ASSEMBLY - 3/4-16 flared x 3/4-16 inch O-ring boss

3шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

1285718C2

QUICK MALE COUPLING

- self-sealing male, 3/4-16 thread (ISO Standard), if used

3шт.

14

1272399C2

QUICK MALE COUPLING

COUPLING - self-sealing male, 7/8-14 thread (ISO Standard), if used

3шт.

14

1341843C1

QUICK MALE COUPLING

COUPLING - male, 7/8-14 inch thread poppet type, if used

3шт.

15

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 3/4-16 x 7/8-14 thread, (not shown), if used

3шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, (not shown), if used

3шт.
