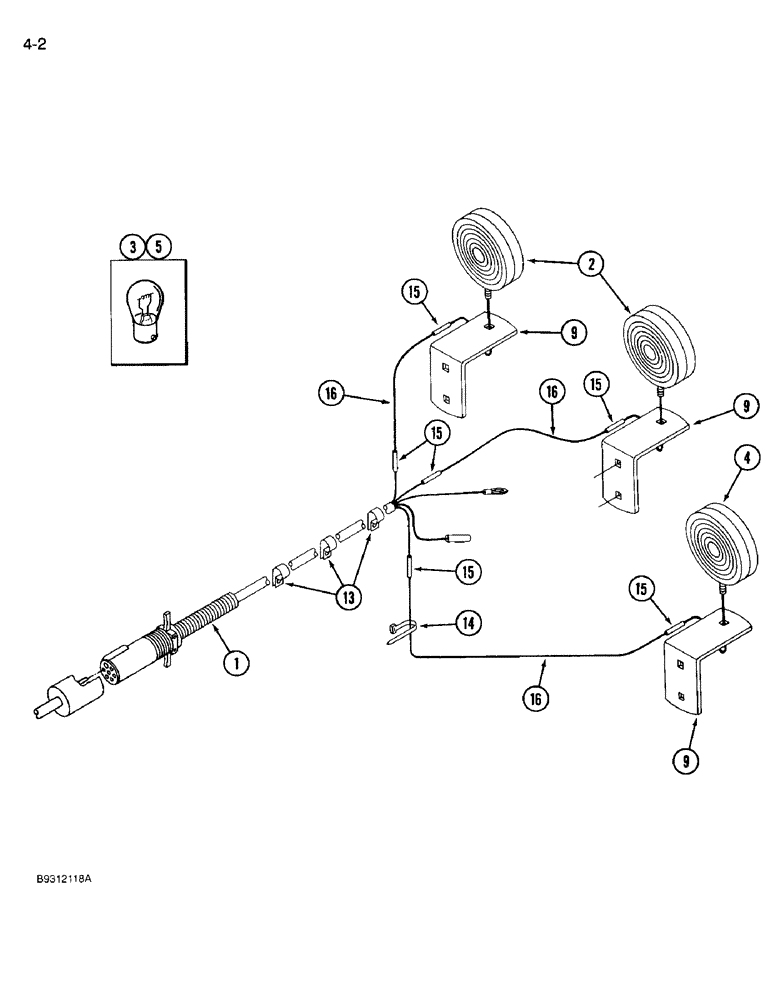

Запчасти Case IH 3309 (4-2) - LIGHTING SYSTEM (06) - ELECTRICAL SYSTEMS

1

ZA104936

HARNESS

- lighting

1шт.

2

ZA708294

LIGHT

LAMP ASSEMBLY - warning/turn signal, amber

2шт.

3

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

4

ZA103734

LIGHT

LAMP ASSEMBLY - tail, red

1шт.

5

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

9

ZA708451

BRACKET

- lamp

3шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

6шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

S77322

CLAMP

- harness

3шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

12шт.

15

ZA707964

TERMINAL CONNECTOR,14 - 16

TERMINAL - butt splice

8шт.

16

NSS

NOT SOLD SEPARAT

WIRE - 14 gauge (Cut from bulk roll B17724)

1шт.

B17724

CABLE

WIRE - 14 gauge, 100 foot roll

1шт.
