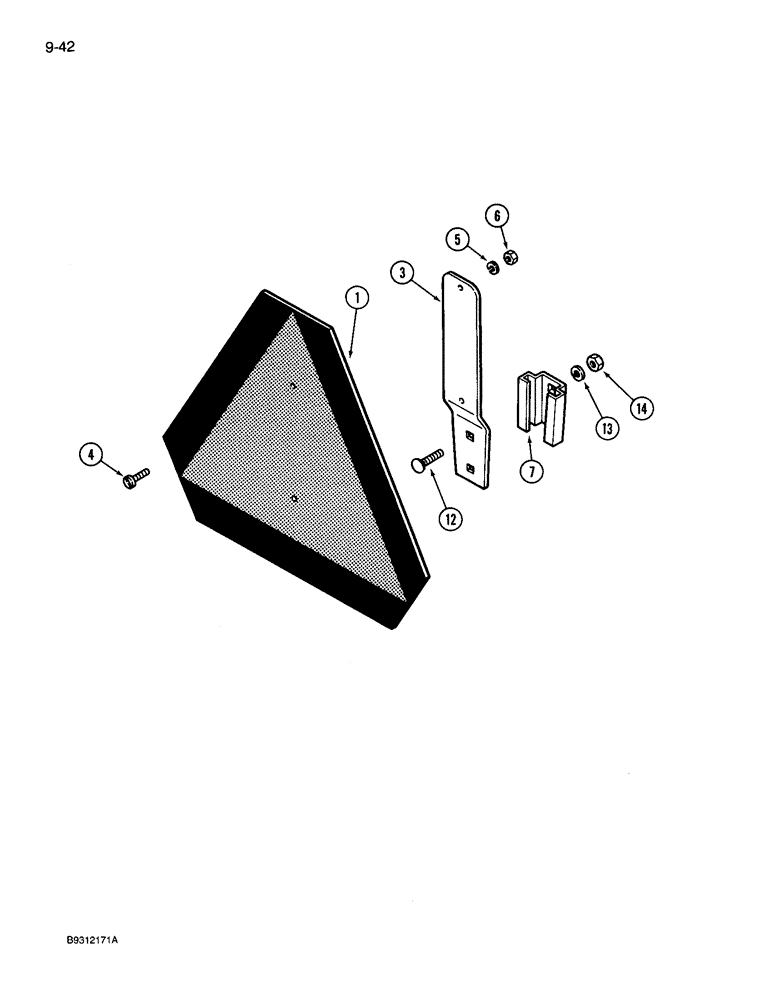

Запчасти Case IH 3309 (9-42) - SMV EMBLEM (03) - CHASSIS/MOUNTED EQUIPMENT

407220R1

PRODUCT GRAPHIC

KIT - slow moving vehicle

1шт.

1

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle

1шт.

321-4311

DECAL

- SMV emblem

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - emblem support

1шт.

4

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

5

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

- flat, 13/64 x 1/2 x 1/16 inch

2шт.

6

225-14110

NUT,#10-24

2шт.

7

A59457

BRACKET

SOCKET - SMV emblem

1шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
