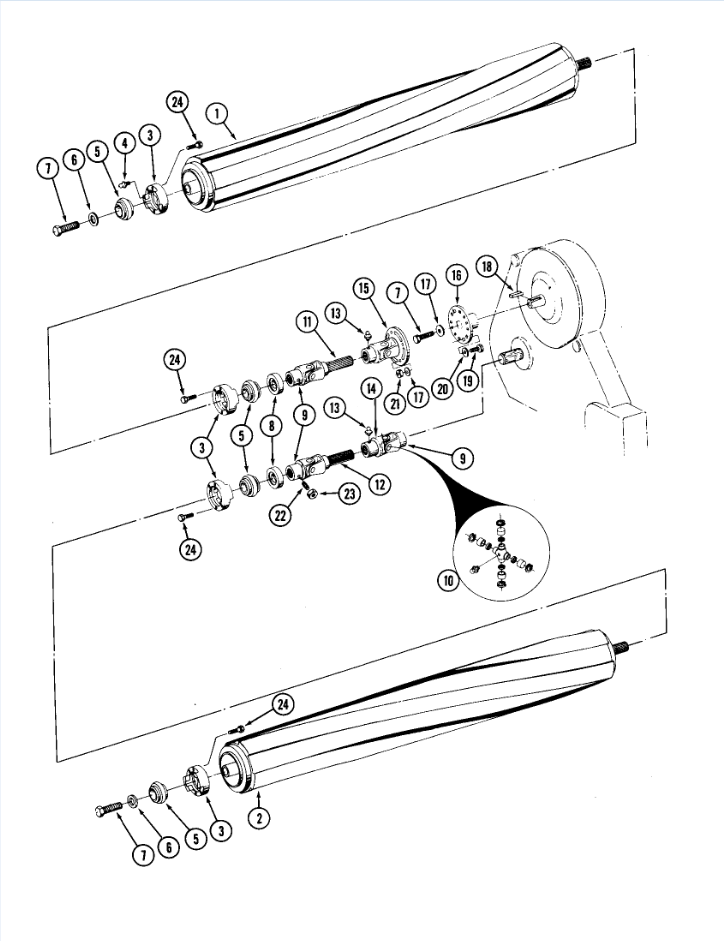

Запчасти Case IH 3309 (9-40) - CONDITIONING ROLLS (03) - CHASSIS/MOUNTED EQUIPMENT

1

ZA526566

ROLL

- upper

1шт.

2

ZA526565

ROLL

- lower

1шт.

3

ZA526850

HOUSING

- bearing

4шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

4шт.

5

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

BEARING ASSEMBLY - ball

4шт.

6

101936C2

WASHER

- flat, hardened

2шт.

7

113-451

PREV TORQUE BOLT,Locking, 1/2"-13 x 1", G8, Full Thd

BOLT - hex lock, 1/2 NC x 1 inch, grade 8

3шт.

8

455112R11

COLLAR

- locking, bearing, with set screw

2шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

9

ZA526979

FORK

YOKE - splined

3шт.

10

757443

U-JOINT SPIDER

KIT - universal joint

4шт.

11

ZA526618

FORK

YOKE - and shaft

1шт.

12

ZA526614

FORK

YOKE - and shaft

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

14

ZA526541

FORK

YOKE - slip

2шт.

15

ZA502505

FORK

YOKE - flanged

1шт.

16

146364C1

HUB

- conditioning roll

1шт.

17

148285C2

WASHER

- flat, hardened

5шт.

18

1980533C1

KEY

- 3/8 x 3/8 x 1-5/8 inch

1шт.

19

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

20

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat hardened, 17/32 x 1-1/16 x 1/8 inch

4шт.

21

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

22

210605C1

SET SCREW

- set

3шт.

23

425-158

JAM NUT,Jam, 1/2"-20, G5

3шт.

24

26312R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

- special locking, 3/8 x 1-1/2 inch, grade 8

16шт.
