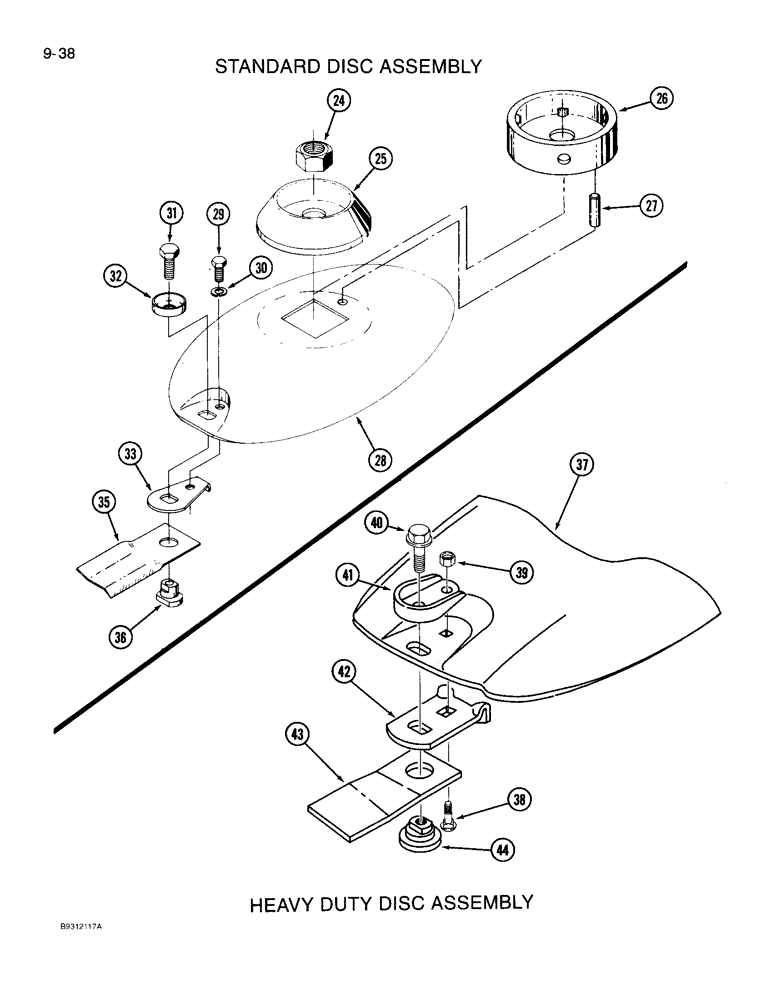

Запчасти Case IH 3309 (9-38) - DISC DRIVE UNIT (03) - CHASSIS/MOUNTED EQUIPMENT
№
Артикул
Название
Примечание
Количество
24
1980522C1
LOCK NUT
NUT - hex lock, 3/4 inch NC
1шт.
25
ZA526872
BLOCK
- pressure
1шт.
ZA527415
BLOCK
SUPPORT ASSEMBLY - crop divider, used on right end drive only
1шт.
26
NSS
NOT SOLD SEPARAT
SUPPORT - crop divider
1шт.
27
135-75
GROOVED PIN,1/4" x 1", Type A
PIN - roll, 1/4 x 1 inch
1шт.
28
122331A1
DISC
- cutterbar, if used
1шт.
29
27431R1
BOLT,Hex, 3/8" - 16 x 1/2", Gr 8
- hex lock, 3/8 NC x 1/2 inch, grade 8
2шт.
30
492-11038
LOCK WASHER,3/8"
2шт.
31
ZA527733
BOLT
- special, 3/8 x 7/8 inch, grade 8, replaces ZA526903
2шт.
32
ZA526472
SHIELD
- bolt head
2шт.
33
ZA526904
STOP
- knife
2шт.
35
ZA526215
KNIFE
- right-hand (Clockwise rotation), standard pitch, if used
2шт.
35
ZA526216
KNIFE
- left-hand (Counterclockwise rotation), standard pitch, if used
2шт.
35
ZA527330
KNIFE
- right-hand (Clockwise rotation), high pitch, if used
2шт.
35
ZA527331
KNIFE
- left-hand (Counterclockwise rotation), high pitch, if used
2шт.
36
ZA526905
NUT
- cutterbar knife
2шт.
124540A1
ROTOR
DISC ASSEMBLY - clockwise rotation, heavy duty conversion kit, if used
1шт.
124541A1
ROTOR
DISC ASSEMBLY - counterclockwise rotation, heavy duty conversion kit, if used
1шт.
37
113386A1
DISC
- cutterbar
1шт.
38
420-2614
PLOW BOLT,#3, 3/8" - 16 x 7/8", Gr 8
BOLT - plow, 3/8 NC x 7/8 inch, grade 8
2шт.
39
232-4246
NUT,3/8"-16, GC
NUT, LOCK, 3/8"-16, GC
2шт.
40
113381A1
BOLT
- special, 3/8 NF x 7/8 inch, grade 8
2шт.
41
113380A1
GUARD
SHIELD - bolt head
2шт.
42
113379A1
STOP
- knife
2шт.
43
113382A1
KNIFE
- right-hand (Clockwise rotation), standard pitch, if used
2шт.
43
113383A1
KNIFE
- left-hand (Counterclockwise rotation), standard pitch, if used
2шт.
43
113384A1
KNIFE
- right-hand (Clockwise rotation), high pitch, if used
2шт.
43
113385A1
KNIFE
- left-hand (Counterclockwise rotation), high pitch, if used
2шт.
44
113378A1
NUT
- cutterbar knife
2шт.
Выбрано товаров: 29
