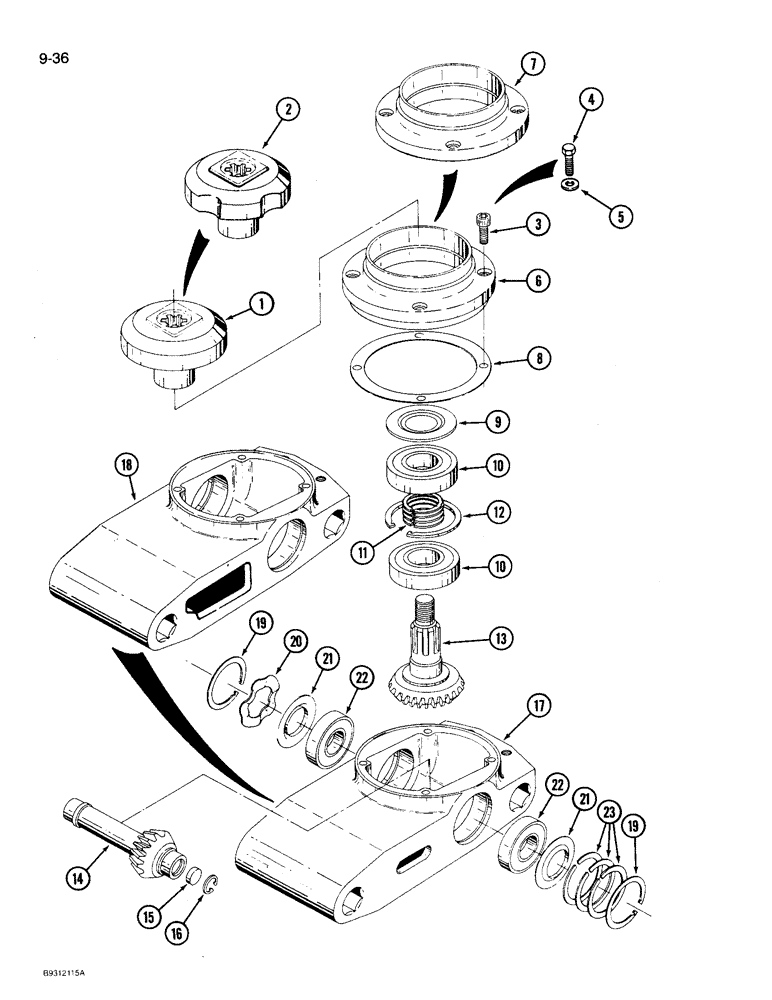

Запчасти Case IH 3309 (9-36) - DISC DRIVE UNIT (03) - CHASSIS/MOUNTED EQUIPMENT

ZA527085

X

DRIVE ASSEMBLY - right end (Counterclockwise rotation)

1шт.

ZA526915

X

DRIVE ASSEMBLY - (Clockwise rotation)

4шт.

ZA526914

X

DRIVE ASSEMBLY - (Counterclockwise rotation)

2шт.

1

ZA526874

HUB

- drive, no longer used, order ZA527380

1шт.

2

ZA527380

HUB

- drive, replaces ZA526874

1шт.

3

ZA526893

SCREW,5/16" - 18 x 3/4", Gr 8

BOLT - hex socket, 5/16 NC x 3/4 inch, grade 8, used with ZA526873 bearing housing

4шт.

4

ZA527385

BOLT

- hex lock, 5/16 NC x 1-1/4 inch, grade 8, used with ZA527379 bearing housing

4шт.

5

ZA527384

WASHER

- flat, 11/32 x 5/8 x 3/32 inch, hardened, used with ZA527385 bolt

4шт.

6

ZA526873

HOUSING

- bearing, not available for service, order one ZA527379 - item 7, one ZA527380 - item 2, four ZA527384 - item 5, and four ZA527385 - item 4

1шт.

7

ZA527379

HUB

HOUSING - bearing, if used

1шт.

8

ZA526894

SHIM,.005" Thk

Bearing housing .005" Thk

1шт.

8

ZA526895

SHIM,.010" Thk

Bearing housing .010" Thk

1шт.

9

ZA526063

SHIELD

- bearing

1шт.

10

ZA526057

BALL BEARING,45mm ID x 75mm OD x 16mm W

BEARING - ball

2шт.

11

ZA526898

SHIM,.024" Thk

Bearing .024" Thk

4шт.

12

1980516C1

SNAP RING

RING - retaining

1шт.

13

ZA526445

GEAR

SHAFT - gear, driven

1шт.

14

ZA526444

GEAR

SHAFT - gear, driver

1шт.

15

ZA526221

DISC

PLUG - disc, used on right end drive only

1шт.

16

55163R1

SNAP RING,0.75", Int, #75

Ring, Snap, , used on right end drive only 0.75", Int, #75

1шт.

17

ZA526442

HOUSING

- cutterbar drive unit, not available for service, order one ZA527909 - item 18, one ZA527379 - item 7, one ZA527380 - item 2, four ZA527384 - item 5, and four ZA527385 - item 4

1шт.

18

ZA527909

HOUSING

- cutterbar drive unit, if used

1шт.

19

513047R1

SNAP RING,1.852", Int, #185

RING - internal retaining, 2.054 inch

2шт.

20

ZA526896

SPRING

- wave washer

1шт.

21

ZA526061

SHIELD

- bearing

2шт.

22

ZA526036

BALL BEARING,24.99mm ID x 47mm OD x 12mm W

BEARING - driver gear shaft

2шт.

23

ZA526897

SHIM,.024" Thk

Driver gear side .024" Thk

3шт.

ZA526204

GREASE

- special, 3.35 ounce per gearbox

1шт.

This is EPO GREASE.

1шт.

ZA745212

GREASE

- special, 16 ounce

1шт.

This is EPO GREASE.

1шт.
