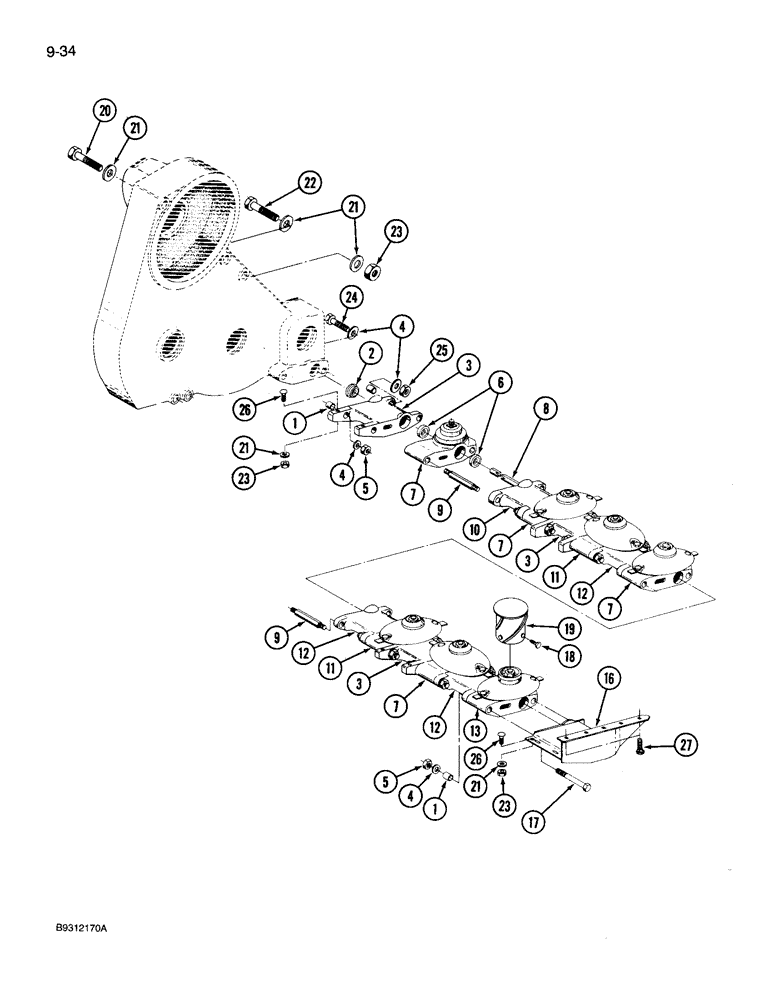

Запчасти Case IH 3309 (9-34) - CUTTERBAR (03) - CHASSIS/MOUNTED EQUIPMENT

1

ZA526498

SPACER

- bolt

4шт.

2

ZA526908

OIL SEAL

RING - centering

1шт.

3

ZA526988

SPACER

- first, third and sixth from left

3шт.

4

ZA526888

WASHER

- flat, hardened

26шт.

5

1980522C1

LOCK NUT

NUT - hex lock, 3/4 inch NC

26шт.

6

ZA526909

OIL SEAL

RING - centering

14шт.

7

REF

INSTRUCTION

DRIVE ASSEMBLY - (Clockwise rotation), see page 9-36

4шт.

8

ZA527070

SHAFT

- drive

1шт.

9

ZA526443

BOLT

- hex special

14шт.

10

ZA526441

SPACER

- second from left

1шт.

11

REF

INSTRUCTION

DRIVE ASSEMBLY - (Counterclockwise rotation), see page 9-36

2шт.

12

ZA526440

SPACER

- forth, fifth and seventh

3шт.

13

REF

INSTRUCTION

DRIVE ASSEMBLY - right end (Counterclockwise rotation), see page 9-36

1шт.

16

ZA526922

EXTENSION

- cutterbar

1шт.

17

305694C1

BOLT,Hex, 3/4" - 16 x 8", Gr 8

- hex, 3/4 NC X 8 inch

2шт.

18

ZA527733

BOLT

- special, 3/8 x 7/8 inch, grade 8, replaces ZA526903

3шт.

If you are looking for part that the ref #18 hooks up to, see page 9-38, ref #26, part number ZA526949.

1шт.

19

ZA526945

DIVIDER

- crop

1шт.

20

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/4 inch

3шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat hardened, 17/32 x 1-1/16 x 1/8 inch

23шт.

22

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

- hex, 1/2 NC x 7 inch

2шт.

23

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

13шт.

24

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch

2шт.

25

231-41312

LOCK NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC

2шт.

26

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT - carriage, 1/2 NC x 2-1/4 inch

6шт.

27

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2шт.
