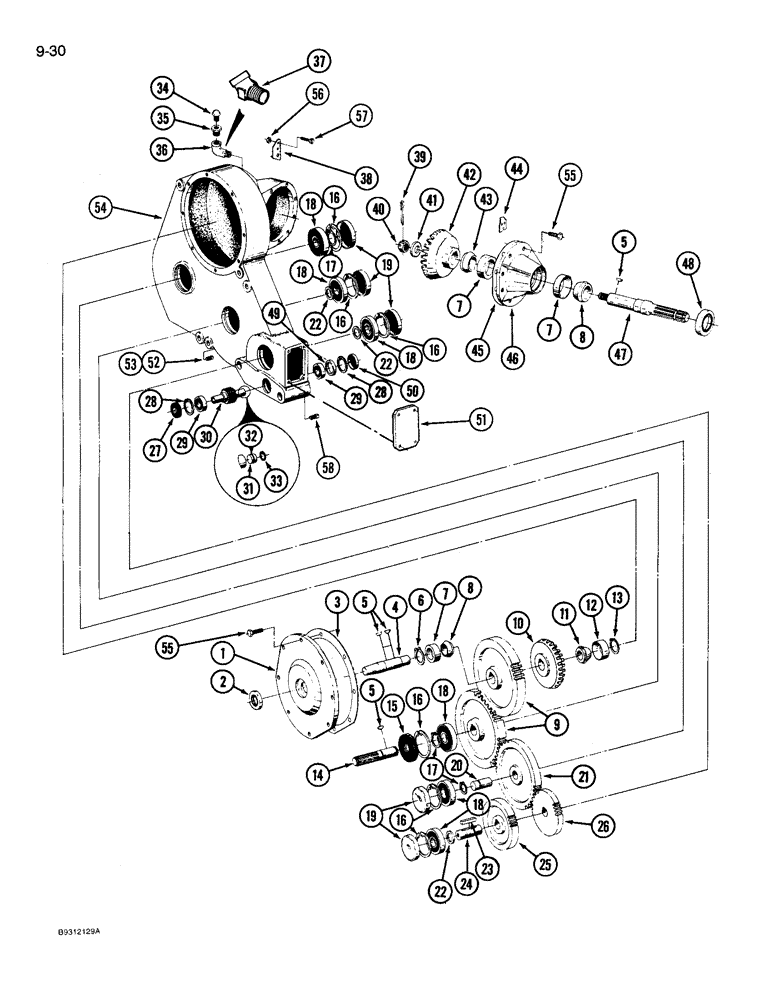

Запчасти Case IH 3309 (9-30) - GEARBOX (03) - CHASSIS/MOUNTED EQUIPMENT

1

ZA526513

COVER

- bearing support

1шт.

2

1980525C1

SEAL

- oil

1шт.

3

ZA526521

SHIM,.005" Thk

Bearing support cover .005" Thk

1шт.

3

ZA526522

SHIM,.007" Thk

Bearing support cover .007" Thk

1шт.

3

ZA526523

SHIM,.020" Thk

Bearing support cover .020" Thk

1шт.

4

ZA526511

SHAFT

- upper drive

1шт.

5

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

4шт.

6

21289R1

SNAP RING,#143, Ext

Ring, Snap, #143, Ext

1шт.

7

165964R1

BEARING CUP

CUP - bearing, upper

3шт.

8

139295C1

ROLLER BEARING

CONE - bearing

2шт.

9

ZA526507

GEAR

- spur, 47 teeth

2шт.

10

ZA526515

GEAR

- bevel pinion, 20 teeth

1шт.

11

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE - bearing, inner, 1-1/4 inch ID

1шт.

12

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP - bearing, inner, 2-7/16 inch OD

1шт.

13

100-11125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

14

ZA526510

SHAFT

- lower drive

1шт.

15

1980526C1

SEAL

- oil

1шт.

16

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, 2.812", Int, #281

6шт.

17

100-11137

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

3шт.

18

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - ball

6шт.

19

1344940C1

PLUG

CAP - end, replaces 1980521C1

5шт.

20

ZA526509

SHAFT

- center idler

1шт.

21

ZA526506

GEAR

- spur, 35 teeth

1шт.

22

1980532C1

WASHER

- flat, 1-13/32 x 1-13/16 x 1/16 inch

3шт.

23

1980981C1

KEY

- square, 5/16 x 1-3/4 inch

1шт.

24

ZA526508

SHAFT

- idler

1шт.

25

ZA526504

GEAR

- spur, 53 teeth

1шт.

26

ZA526505

GEAR

- spur, 21 teeth

1шт.

27

1980527C1

SEAL

- oil

1шт.

28

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

2шт.

29

A31260

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

BEARING ASSEMBLY - ball

2шт.

30

ZA526503

GEAR

- spur, 18 teeth

1шт.

31

ZA526535

PLUG

- spur gear

1шт.

32

1980528C1

OIL SEAL

O-RING - spur gear plug

1шт.

33

A15110

SNAP RING,0.812", Int, #81

Ring, Snap, 0.812", Int, #81

1шт.

34

D57822

BREATHER

- housing

1шт.

35

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing, Used prior to P.I.N. CCB0003252 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

35

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

- pipe, 3/4 male x 3/8 inch female, used P.I.N. CCB0003252 and above

1шт.

36

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 90 degree, 1/2 inch PT, used prior to P.I.N. CCB0001902

1шт.

37

221-1368

ELBOW,45 Degree, 1/2" NPT

- pipe, 45 degree, 1/2 inch, used P.I.N. CCB0001902 to CCB0003251

1шт.

37

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

- street, 45 degree, 3/4 inch PT x female PT, used P.I.N. CCB0003252 and above

1шт.

38

ZA527182

DEFLECTOR

- oil

1шт.

39

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

40

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex slotted, 3/4 inch NF

1шт.

41

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch

1шт.

42

ZA526514

GEAR

- bevel, 27 teeth

1шт.

43

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

CONE - bearing

1шт.

44

ZA526528

DEFLECTOR

- oil

1шт.

45

ZA526518

SHIM,.005" Thk

Bearing support cap .005" Thk

1шт.

45

ZA526519

SHIM,.007" Thk

Bearing support cap .007" Thk

1шт.

45

ZA526520

SHIM,.020" Thk

Bearing support cap .020" Thk

1шт.

46

ZA526517

CAP

- bearing support

1шт.

47

ZA527742

SHAFT

- input

1шт.

48

1980524C1

SEAL

- oil

1шт.

49

ZA526533

SPACER

- spur gear

1шт.

50

1980529C1

CAP

- end, 52 mm

1шт.

51

ZA526531

COVER

- gear box

1шт.

52

221-841

PLUG

- square head pipe, 1/4-18, if used

1шт.

53

444595

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - square head pipe, 3/4-14, if used

1шт.

54

ZA526516

HOUSING

- gearbox

1шт.

55

1980523C1

BOLT

- hex lock, 3/8 NC x 1-1/4 inch

16шт.

56

234-4114

NUT - hex lock, 1/4 inch NC

2шт.

57

156265

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

BOLT - flat head, 1/4 NC x 1 inch

2шт.

58

444595

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - square head pipe, 3/4-14

1шт.
