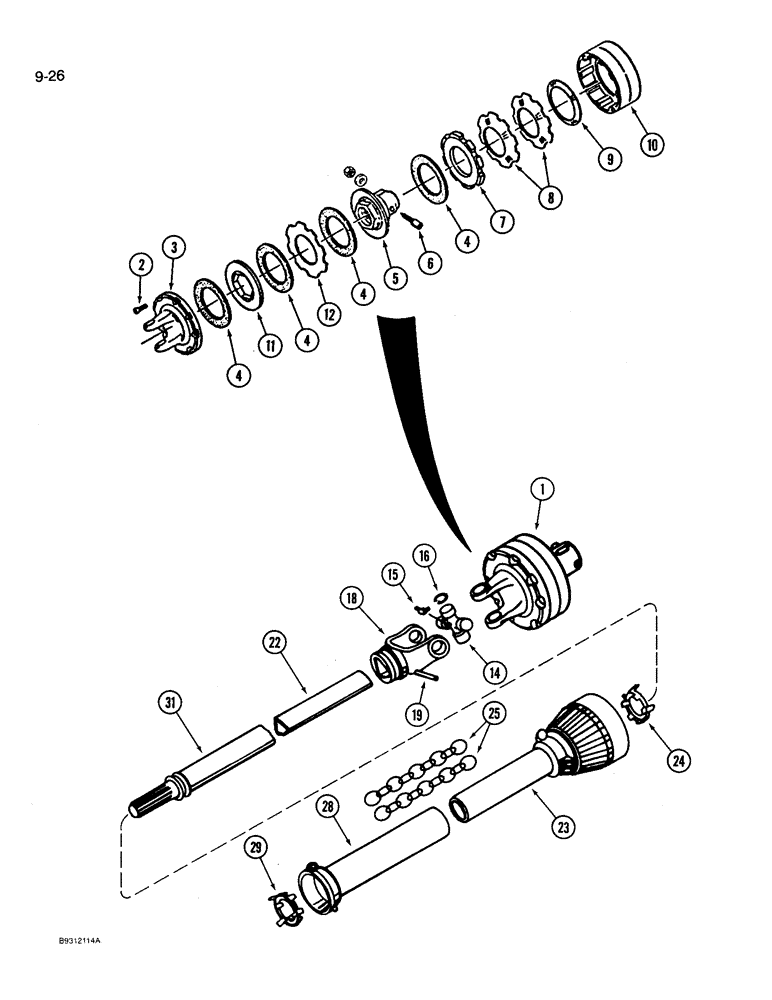

Запчасти Case IH 3309 (9-26) - REAR DRIVE SHAFT, P.I.N. CCB0002154 AND P.I.N. CCB0002351 - P.I.N. CCB0002785 (03) - CHASSIS/MOUNTED EQUIPMENT

ZA527547

SHAFT

ASSEMBLY - PTO rear half with shield

1шт.

1

ZA527195

CLUTCH

ASSEMBLY - rear drive shaft

1шт.

2

ZA527540

SCREW

BOLT - hex socket

8шт.

3

ZA527145

FORK

YOKE - flanged

1шт.

4

ZA527541

DISC

LINING - splined, Serial Range: hub-yoke

4шт.

5

ZA527543

HUB

- splined

1шт.

6

ZA502119

PIN

- tapered with nut and washer

1шт.

7

ZA502120

PLATE

- tightening

1шт.

8

ZA527544

SPRING

- tightening plate adjusting

2шт.

9

ZA502122

OIL SEAL

RING - screening

1шт.

10

ZA527545

CLUTCH

BODY - clutch outer

2шт.

11

ZA527542

LARGE PLATE

PLATE - friction

1шт.

12

ZA502117

LARGE PLATE

PLATE - inner

1шт.

14

ZA527130

KIT

- cross and bearing

1шт.

15

700707193

NIPPLE, LUBE

FITTING - grease

1шт.

16

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

18

ZA527129

YOKE

- inner tube

1шт.

19

ZA527128

PIN

- roll

1шт.

22

ZA527142

PIN

TUBE - inner

1шт.

23

ZA527283

SHIELD

ASSEMBLY - rear half

1шт.

24

ZA527133

BEARING

- inner shield

1шт.

25

ZA527088

CHAIN (AG)

CHAIN - shield

2шт.

ZA527280

PTO

SHAFT ASSEMBLY - PTO front half with shield

1шт.

28

ZA527282

SHIELD

ASSEMBLY - front half

1шт.

29

ZA527132

SHIELD

BEARING - outer shield

1шт.

31

ZA527143

TUBE

ASSEMBLY - outer, not available for service, order ZA527280 shaft assembly

1шт.
