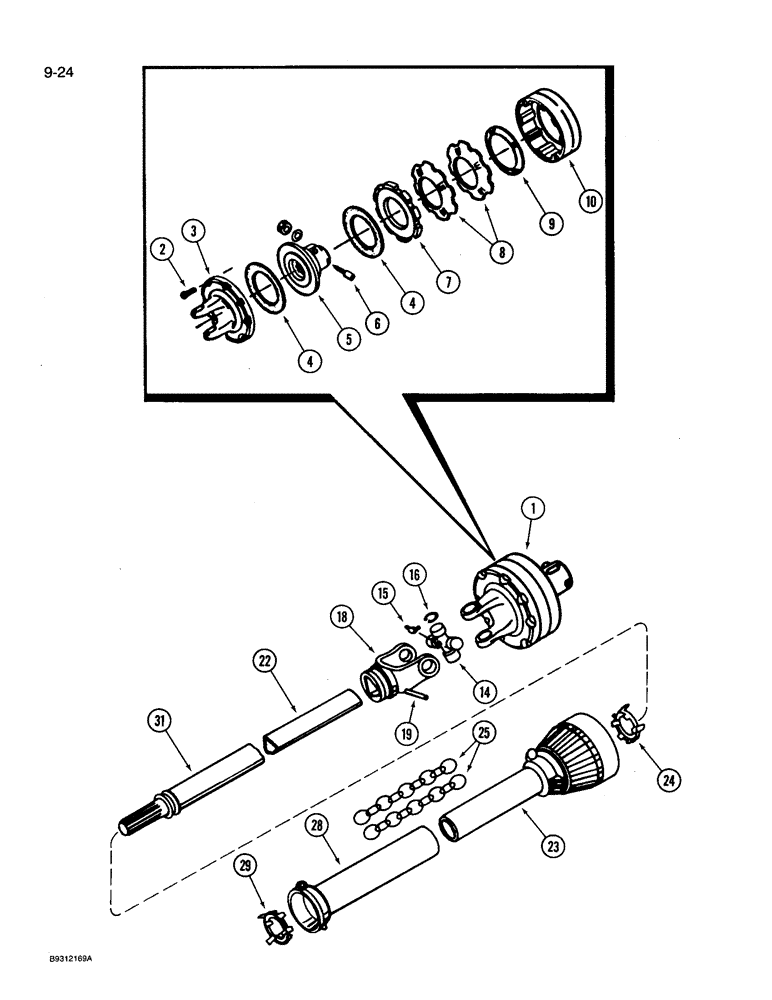

Запчасти Case IH 3309 (9-24) - REAR DRIVE SHAFT, ALL MACHINES BEFORE P.I.N. CCB0002351 EXCEPT P.I.N. CCB0002154 (03) - CHASSIS/MOUNTED EQUIPMENT

ZA527281

SHAFT

ASSEMBLY - PTO rear half with shield

1шт.

1

ZA527144

CLUTCH

ASSEMBLY - rear drive shaft

1шт.

2

ZA502114

SCREW

BOLT - hex socket

8шт.

3

ZA527145

FORK

YOKE - flanged

1шт.

4

ZA502116

LINING

- splined, Serial Range: hub-yoke

2шт.

5

ZA502118

HUB

- splined

1шт.

6

ZA502119

PIN

- tapered with nut and washer

1шт.

7

ZA502120

PLATE

- tightening

1шт.

8

ZA527146

SPRING

- tightening plate adjusting

2шт.

9

ZA502122

OIL SEAL

RING - screening

1шт.

10

ZA502123

BODY

- clutch outer

2шт.

14

ZA527130

KIT

- cross and bearing

1шт.

15

700707193

NIPPLE, LUBE

FITTING - grease

1шт.

16

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

18

ZA527129

YOKE

- inner tube

1шт.

19

ZA527128

PIN

- roll

1шт.

22

ZA527142

PIN

TUBE - inner

1шт.

23

ZA527283

SHIELD

ASSEMBLY - rear half

1шт.

24

ZA527133

BEARING

- inner shield

1шт.

25

ZA527088

CHAIN (AG)

CHAIN - shield

2шт.

ZA527280

PTO

SHAFT ASSEMBLY - PTO front half with shield

1шт.

28

ZA527282

SHIELD

ASSEMBLY - front half

1шт.

29

ZA527132

SHIELD

BEARING - outer shield

1шт.

31

ZA527143

TUBE

ASSEMBLY - outer, not available for service, order ZA527280 shaft assembly

1шт.
