Заказать запчасти

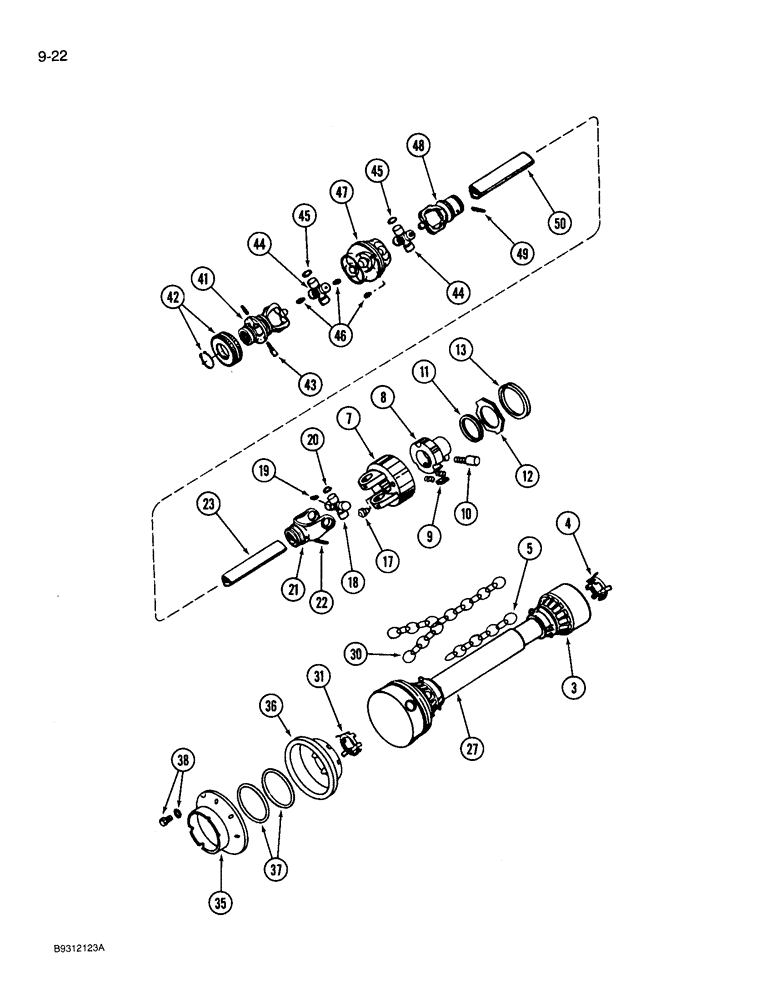

Запчасти Case IH 3309 (9-22) - FRONT DRIVE SHAFT, P.I.N. CCB0002786 AND AFTER (03) - CHASSIS/MOUNTED EQUIPMENT
№
Артикул
Название
Примечание
Количество
ZA106560
PTO
SHAFT ASSEMBLY - PTO rear half
1шт.
ZA106564
SHIELD
ASSEMBLY - rear
1шт.
3
NSS
NOT SOLD SEPARAT
TUBE - inner
1шт.
4
700707188
INNER SHIELD
BEARING - inner shield
1шт.
5
ZA527088
CHAIN (AG)
CHAIN - shield
1шт.
ZA106553
CLUTCH
ASSEMBLY - overrunning
1шт.
7
ZA106555
HOUSING
BODY - clutch outer
1шт.
8
ZA527136
HUB
- splined
1шт.
9
700708779
RATCHET
- tooth with springs
3шт.
10
700709860
PIN
- clamp with nut
1шт.
11
700708778
RING
- screening
1шт.
12
700708777
WASHER
RING - sealing
1шт.
13
700708775
SNAP RING
RING - retaining
1шт.
17
700708915
NIPPLE, LUBE
FITTING - grease
1шт.
18
700707171
CROSS
KIT - cross and bearing
1шт.
19
700707193
NIPPLE, LUBE
FITTING - grease
1шт.
20
NSS
NOT SOLD SEPARAT
RING - retaining
4шт.
21
700707172
TUBE
YOKE - inner tube
1шт.
22
700707194
PIN
- roll
1шт.
23
ZA106552
TUBE
- inner
1шт.
ZA106558
PTO
SHAFT ASSEMBLY - PTO front half
1шт.
24
700707175
NUT
RING - greasing, not shown
1шт.
ZA106562
SHIELD
ASSEMBLY - front
1шт.
27
NSS
NOT SOLD SEPARAT
TUBE - outer
1шт.
30
700707192
CHAIN (AG)
CHAIN - shield
1шт.
31
ZA527132
SHIELD
BEARING - outer shield
1шт.
700709053
CONE
SHIELD - shaft
1шт.
35
NSS
NOT SOLD SEPARAT
SHIELD - outer
1шт.
36
NSS
NOT SOLD SEPARAT
SHIELD - inner
1шт.
37
700709047
SHIELD
BEARING - shield
2шт.
38
ZA551527
SCREW
- with locknut
6шт.
700709040
FORK
YOKE ASSEMBLY - front
1шт.
41
NSS
NOT SOLD SEPARAT
YOKE - front
1шт.
42
700707181
COLLAR
- yoke with retaining ring
1шт.
43
700708790
KIT
PIN - front yoke
1шт.
44
700709041
CROSS
KIT - cross and bearing
2шт.
45
NSS
NOT SOLD SEPARAT
RING - retaining
8шт.
46
700707187
NIPPLE, LUBE
FITTING - grease
5шт.
47
700709042
BODY
- drive shaft joint
1шт.
48
700709851
FORK
YOKE - outer shaft
1шт.
49
763847
PIN
- roll
1шт.
50
ZA106551
TUBE
- outer
1шт.
Выбрано товаров: 42
