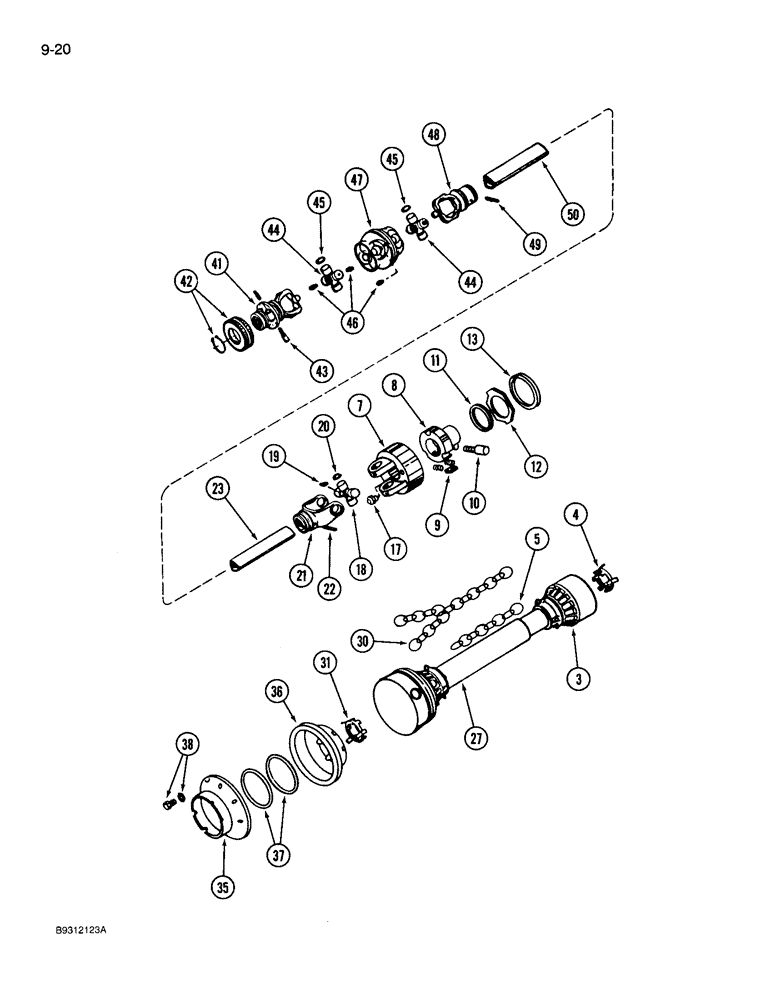

Запчасти Case IH 3309 (9-20) - FRONT DRIVE SHAFT, PRIOR TO P.I.N. CCB0002786 (03) - CHASSIS/MOUNTED EQUIPMENT

ZA527206

PTO

SHAFT ASSEMBLY - PTO rear half

1шт.

ZA527208

SHIELD

ASSEMBLY - rear

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - inner

1шт.

4

ZA527133

BEARING

- inner shield

1шт.

5

ZA105864

CHAIN (AG)

CHAIN - shield

1шт.

ZA527131

CLUTCH

ASSEMBLY - overrunning

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - clutch outer

1шт.

8

ZA527136

HUB

- splined

1шт.

9

ZA551183

RATCHET

- tooth with springs

3шт.

10

700709860

PIN

- clamp with nut, replaces ZA551539

1шт.

11

700708778

RING

- screening, replaces ZA551185

1шт.

12

700708777

WASHER

RING - sealing, replaces ZA551186

1шт.

13

700708775

SNAP RING

RING - retaining, replaces ZA551187

1шт.

17

700708915

NIPPLE, LUBE

FITTING - grease, replaces ZA551181

1шт.

18

ZA527130

KIT

- cross and bearing

1шт.

19

700707193

NIPPLE, LUBE

FITTING - grease, replaces ZA210343

1шт.

20

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

21

ZA527129

YOKE

- inner tube

1шт.

22

ZA527128

PIN

- roll

1шт.

23

ZA527127

TUBE

- inner

1шт.

ZA527205

PTO

SHAFT ASSEMBLY - PTO front half, no longer available for service, order ZA106558 shaft assembly, see page 9-23 for component parts of ZA106558

1шт.

ZA527207

SHIELD

ASSEMBLY - front

1шт.

27

NSS

NOT SOLD SEPARAT

TUBE - outer

1шт.

30

700707192

CHAIN (AG)

CHAIN - shield, replaces ZA551533

1шт.

31

ZA527132

SHIELD

BEARING - outer shield

1шт.

ZA527204

SHIELD

- shaft

1шт.

35

NSS

NOT SOLD SEPARAT

SHIELD - outer

1шт.

36

NSS

NOT SOLD SEPARAT

SHIELD - inner

1шт.

37

ZA527134

BEARING

- shield

2шт.

38

ZA551527

SCREW

- with locknut

6шт.

ZA527120

PTO

YOKE ASSEMBLY - front

1шт.

41

NSS

NOT SOLD SEPARAT

YOKE - front

1шт.

42

700707181

COLLAR

- yoke with retaining ring, replaces ZA210952

1шт.

43

700708790

KIT

PIN - front yoke, replaces ZA210331

1шт.

44

ZA527121

CROSS

KIT - cross and bearing

2шт.

45

NSS

NOT SOLD SEPARAT

RING - retaining

8шт.

46

700707187

NIPPLE, LUBE

FITTING - grease, replaces ZA210321

5шт.

47

ZA527123

PTO

BODY - drive shaft joint. It is recommended that you order ZA106558 complete shaft assembly to replace this item

1шт.

48

ZA527124

YOKE

- outer shaft

1шт.

49

ZA527125

PIN

- roll

1шт.

50

ZA527126

TUBE

- outer

1шт.
