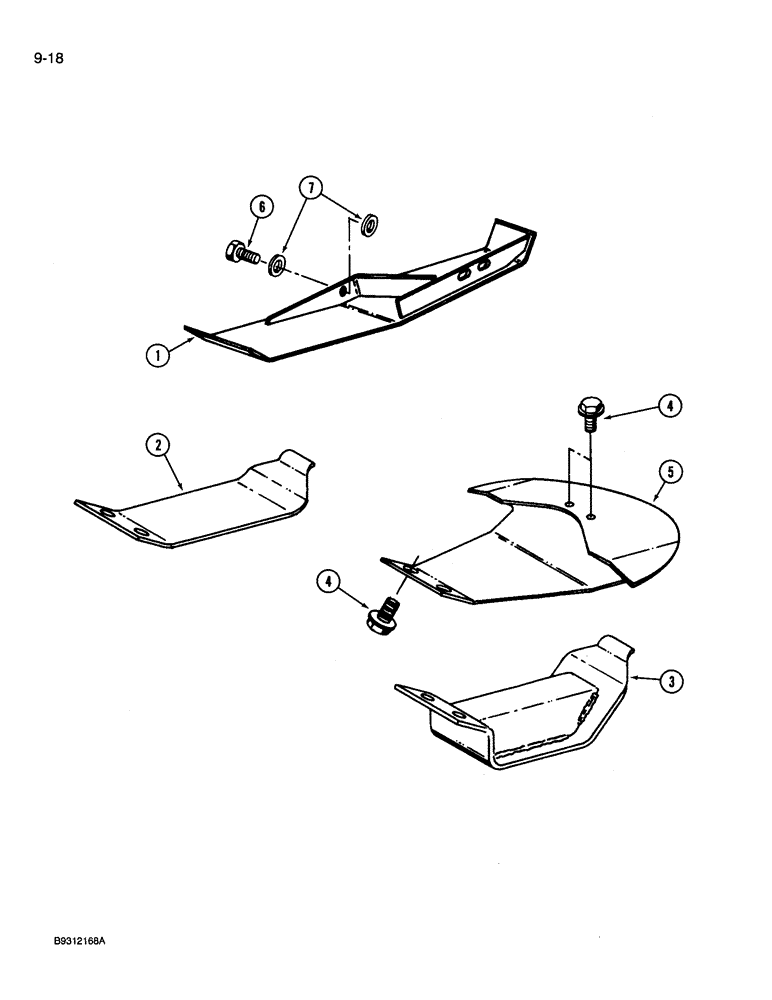

Запчасти Case IH 3309 (9-18) - SKID SHOES (03) - CHASSIS/MOUNTED EQUIPMENT

1

ZA526777

SHOE

- skid left

1шт.

2

ZA526875

WEAR PLATE

PLATE - wear, cutterbar skid shoe

7шт.

3

ZA526462

SHOE

- topping skid

4шт.

4

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

28шт.

5

ZA526876

SHOE

- skid

7шт.

6

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch

2шт.

7

ZA526888

WASHER

- flat, hardened

1шт.
