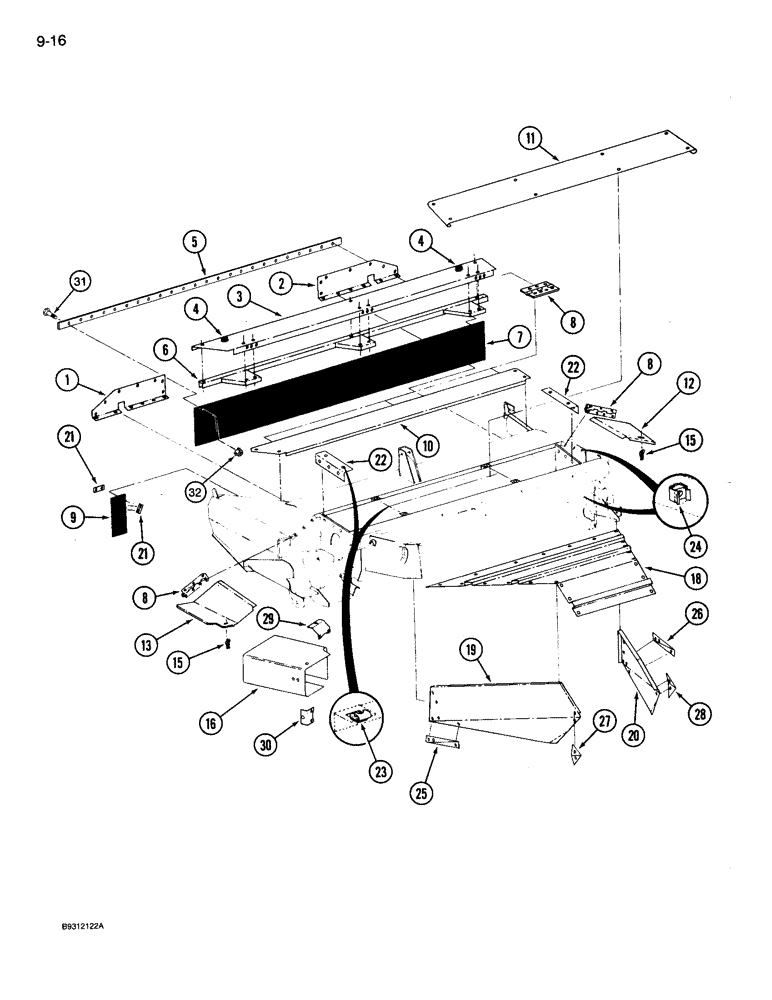

Запчасти Case IH 3309 (9-16) - HOOD, SHIELDS, AND CURTAINS (03) - CHASSIS/MOUNTED EQUIPMENT

1

ZA526956

SHIELD

- spring left

1шт.

2

ZA526955

SHIELD

- spring right

1шт.

3

ZA526943

HOOD

PANEL - hood

1шт.

4

1337163C1

BUMPER

- rubber hood

2шт.

5

ZA527057

STRIP

- curtain clamp

1шт.

6

ZA527016

SUPPORT

ASSEMBLY - hood

1шт.

7

ZA526754

CURTAIN

- safety

1шт.

8

ZA526853

HINGE

- hood

5шт.

9

ZA527081

CURTAIN

- inner

1шт.

10

ZA526965

COVER

- top front

1шт.

11

ZA526918

COVER

- top rear

1шт.

12

ZA527022

COVER

- side, right

1шт.

13

ZA527930

SHIELD

COVER - side, left

1шт.

15

188029C1

LATCH

- cover

2шт.

16

ZA527929

SHIELD

- rear PTO

1шт.

18

ZA526821

HOOD

- top, deflector

1шт.

19

ZA526817

PANEL

- hood side, left

1шт.

20

ZA526818

PANEL

- hood side, right

1шт.

21

ZA527083

PANEL

BAR - clamp

2шт.

22

ZA526919

ANGLE

- roll cover

2шт.

23

1980520C1

NUT

- Tinnerman, J type 3/8 inch NC

8шт.

24

141217C1

NUT

- retainer, 3/8 inch NC

11шт.

25

ZA526982

SUPPORT

- hood left

1шт.

26

ZA526983

SUPPORT

- hood right

1шт.

27

1253614C1

SUPPORT

- hood corner, left

1шт.

28

1253615C1

SUPPORT

- hood corner, right

1шт.

29

ZA526539

BRACKET

- shield support

1шт.

30

ZA526540

BRACKET

- shield support

3шт.

31

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

32

231-5146

FLANGE NUT,3/8"-16

1шт.
