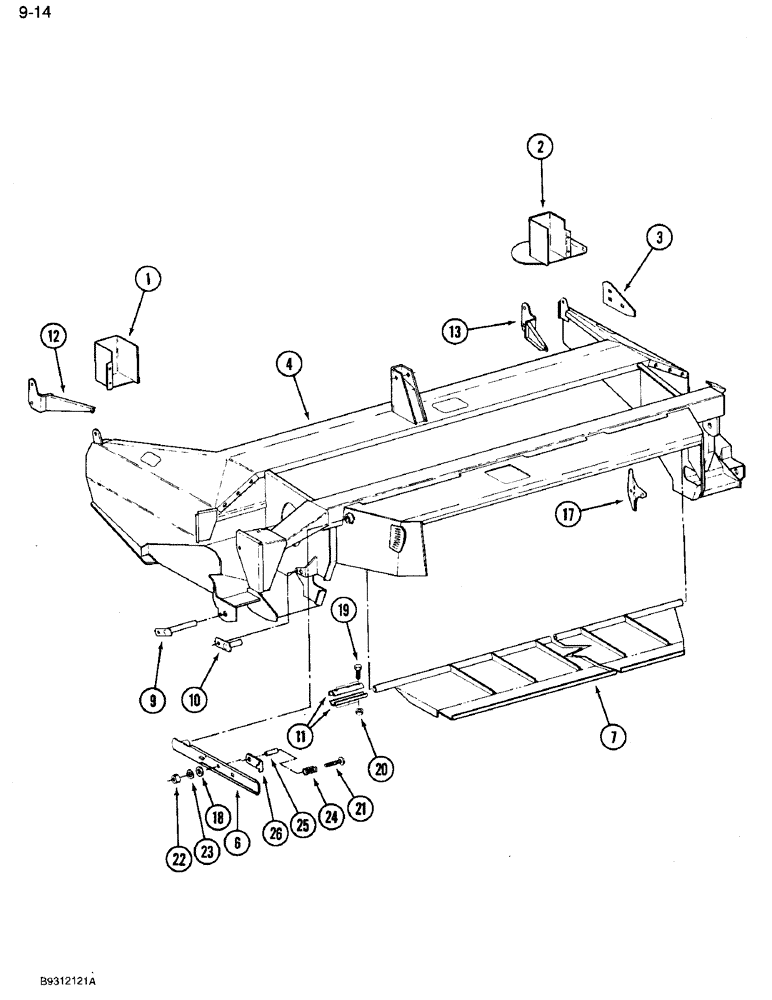

Запчасти Case IH 3309 (9-14) - HEADER FRAME (03) - CHASSIS/MOUNTED EQUIPMENT

1

ZA526998

COVER

- sprocket

1шт.

2

ZA526963

STRIPPER

SUPPORT - stripper

1шт.

3

ZA526962

STRIPPER

- conditioner roll

2шт.

4

ZA527932

FRAME

- header, replaces ZA527189

1шт.

6

ZA526829

HANDLE

- deflector

6шт.

7

ZA526950

DEFLECTOR

PANEL - deflector

1шт.

9

ZA526683

PIN

- lift, right

1шт.

9

ZA526684

PIN

- lift, left

1шт.

10

ZA526650

PIN

- pivot

2шт.

11

ZA526833

SLEEVE

- tube clamp

2шт.

12

ZA526550

STOP

- hood left

1шт.

13

ZA526551

STOP

- hood right

1шт.

17

ZA526959

SUPPORT

DEFLECTOR - crop

2шт.

18

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

1шт.

19

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

3шт.

20

231-4116

NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

3шт.

21

1980534C1

SCREW

- slotted truss head, 3/8 NC x 2 inch

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

542571R1

SPRING

- compression

1шт.

25

1980531C1

SPACER

- handle

1шт.

26

ZA526932

BRACKET

- spring pressure

1шт.
