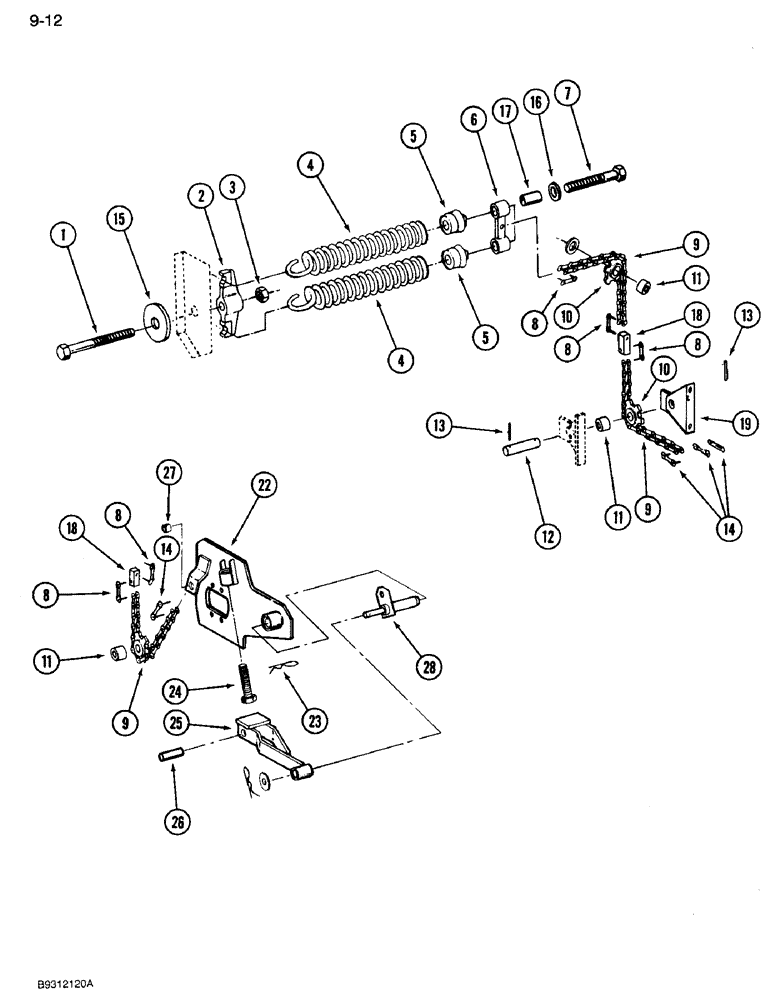

Запчасти Case IH 3309 (9-12) - HEADER FRAME LINKAGE (03) - CHASSIS/MOUNTED EQUIPMENT

1

ZA526721

BOLT

- hex, 5/8 NC x 11 inch

2шт.

2

ZA526623

ADJUSTER

- spring

2шт.

3

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

2шт.

4

ZA526621

SPRING

- roll pressure

4шт.

5

ZA526622

INSERT

- spring

4шт.

6

ZA526844

ANCHOR

- spring

2шт.

7

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

8

242-1310

SPRING CLIP

LINK - chain, connecting

6шт.

9

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - roll tension (Use 9 links from bulk roll chain 569089R91)

4шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - 10 foot roll

1шт.

10

ZA526658

SPROCKET ASSY.

SPROCKET ASSEMBLY - chain

4шт.

11

135224C1

BUSHING

- chain sprocket

4шт.

12

ZA526842

PIN

- pivot

2шт.

13

657196R1

PIN

- roll, 1/4 x 2 inch

4шт.

14

1980535C1

LINK

- chain

2шт.

15

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

16

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 1/8 inch

4шт.

17

493933R1

SPACER,5/8" Tube x 1 7/16"

- tube, 5/8 x 1-7/16 inch

4шт.

18

ZA526811

ADAPTER

- block, chain

2шт.

19

ZA526841

BRACKET

- sprocket support

2шт.

22

ZA526624

PLATE

- roll, right

1шт.

22

ZA526625

PLATE

- roll, left

1шт.

23

407210R1

CLIP

PIN - cotter (Package of 20)

2шт.

24

ZA526784

BOLT

- hex, 7/8 NC x 3 inch

2шт.

25

ZA526633

ARM

- cylinder right

1шт.

25

ZA526634

ARM

- cylinder left

1шт.

26

ZA526567

SPACER

- cylinder arm

2шт.

27

ZA526548

ROLLER

- plate

2шт.

28

ZA526631

PIN

- roll plate pivot

2шт.
