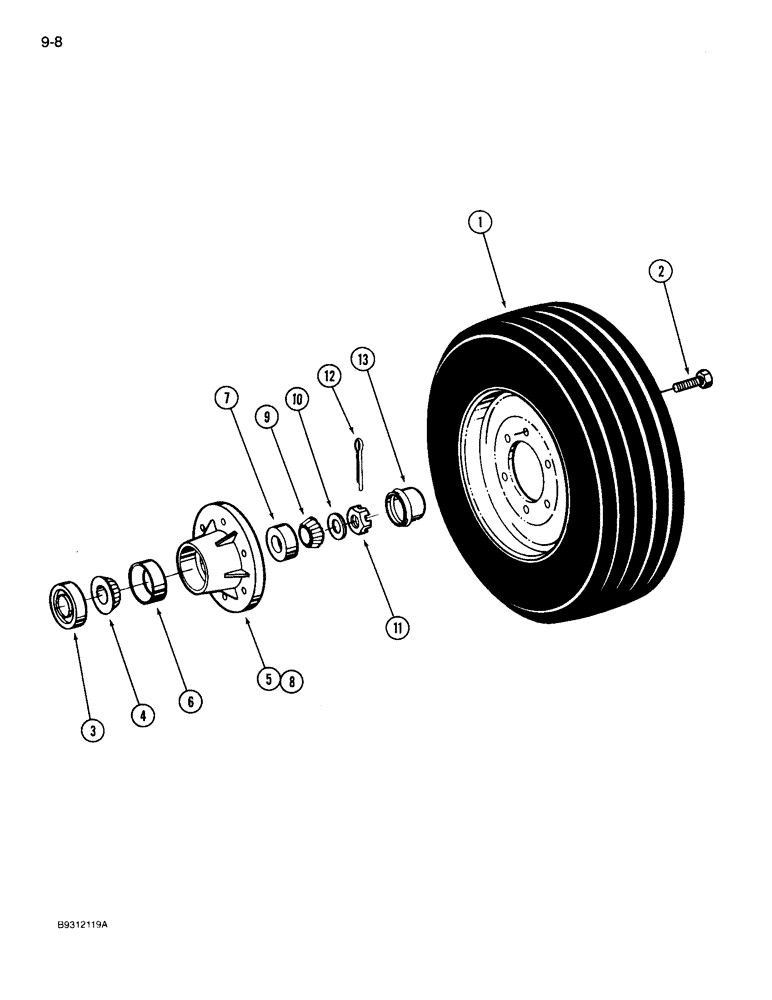

Запчасти Case IH 3309 (9-08) - WHEEL AND HUB (03) - CHASSIS/MOUNTED EQUIPMENT

1

481344R91

WHEEL

- 14x8 KB

2шт.

2

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

12шт.

3

126621C1

SEAL

SEAL - bearing

2шт.

4

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, inner

2шт.

4

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

5

662993R11

HUB

ASSEMBLY - wheel, if used

2шт.

6

651814R1

BEARING CUP

CUP - bearing, inner

1шт.

7

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

8

126544C1

HUB CAP

HUB - wheel, without bearing cups, if used

2шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

2шт.

10

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, hardened

2шт.

11

69442D

NUT

- slotted hex, 3/4 inch NF

2шт.

12

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

13

651194R1

CAP

- wheel hub

2шт.
