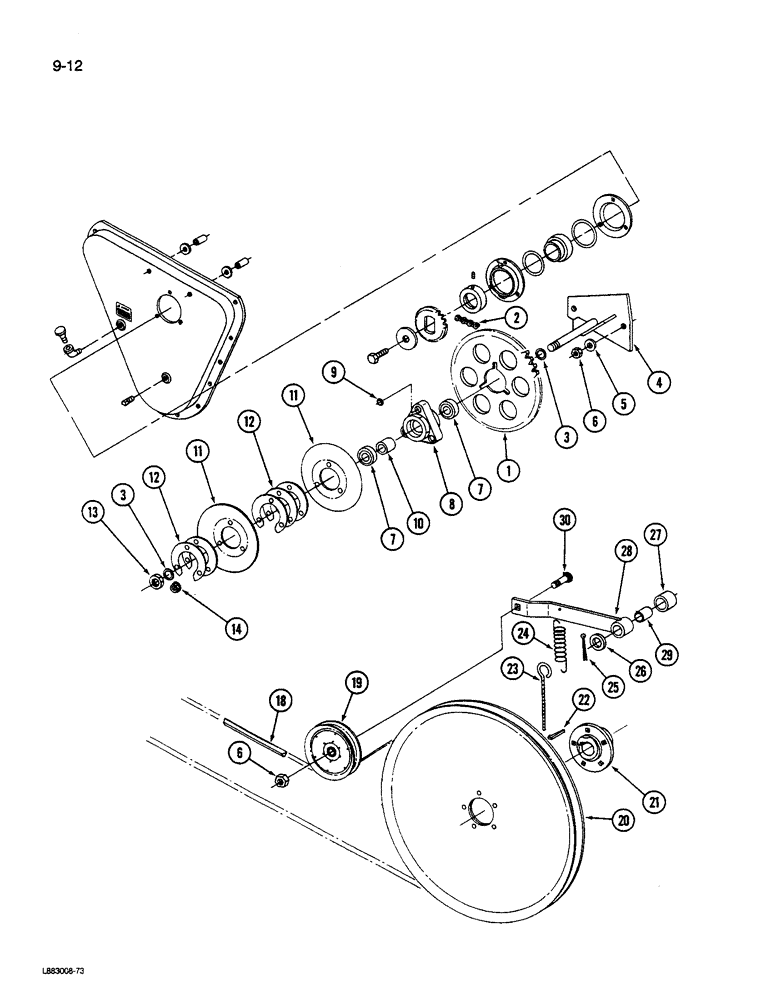

Запчасти Case IH 1590 (9-012) - REEL DRIVE, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1253567C1

SPROCKET ASSY.

SPROCKET - reel drive, 96 tooth

1шт.

Ref. 1 - Idler sprocket for reel drive sprocket is ZA502905 (same as roll drive sprocket).

1шт.

2

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - reel drive (Use 109 links from bulk chain 1790D, 1 offset link 1303D, and 1 connecting link 1301D)

1шт.

1790D

CHAIN (AG)

CHAIN - 10 foot roll

1шт.

1303D

LINK

- chain, offset

1шт.

1301D

CHAIN LINK

LINK - chain, connecting

1шт.

3

43374D

SPRING WASHER

- flat, 49/64 x 1-1/16 x 1/16 inch

1шт.

4

146230C1

SHAFT

ASSEMBLY - reduction drive

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

5

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

6

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

3шт.

7

475627R91

BALL BEARING,19.05mm ID x 41.27mm OD x 12.7mm W

BEARING ASSEMBLY - ball

2шт.

8

119488C2

HUB

- reel drive

1шт.

27452R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 2-3/4 inch

3шт.

9

610139C1

NUT

- speed

3шт.

10

143753C1

SPACER

BUSHING - spacer, 1 OD x 1-1/4 inch

1шт.

11

112021C1

PULLEY

- half

2шт.

12

148218C1

SHIM

- pulley

1шт.

13

548033R1

JAM NUT

NUT - hex jam lock, 3/4 inch NF

1шт.

14

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC

3шт.

18

143875C1

V-BELT,0.92" W x 94.87" L

Reel Drive 0.92" W x 94.87" L

1шт.

19

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

- idler, 6 inch OD (Alternative part is F17080)

1шт.

19

F17080

PULLEY

- idler (Replaces 566519R91)(Alternative part is 566518R91)

1шт.

20

1253618C1

PULLEY

- reel drive

1шт.

21

1253639C1

HUB

- pulley

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

5шт.

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC

5шт.

22

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

- tapered, 3/8 x 1-3/4 inch

1шт.

23

1253940C1

BOLT

EYEBOLT - 3/8 inch NC

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

481400R1

VALVE SPRING

SPRING - extension

1шт.

25

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

26

21758R1

WASHER

- flat, 25/32 x 1-1/4 x 1/16 inch

3шт.

27

ZA502678

SPACER

- 1 inch OD x 15/16 long

1шт.

28

119562C1

ARM

ASSEMBLY - pivot

1шт.

29

660706C1

BUSHING

- pivot arm

1шт.

607895R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

4шт.

30

598815R1

CARRIAGE BOLT

BOLT - round head square neck, 1/2 NC x 2-1/2 inch

1шт.
