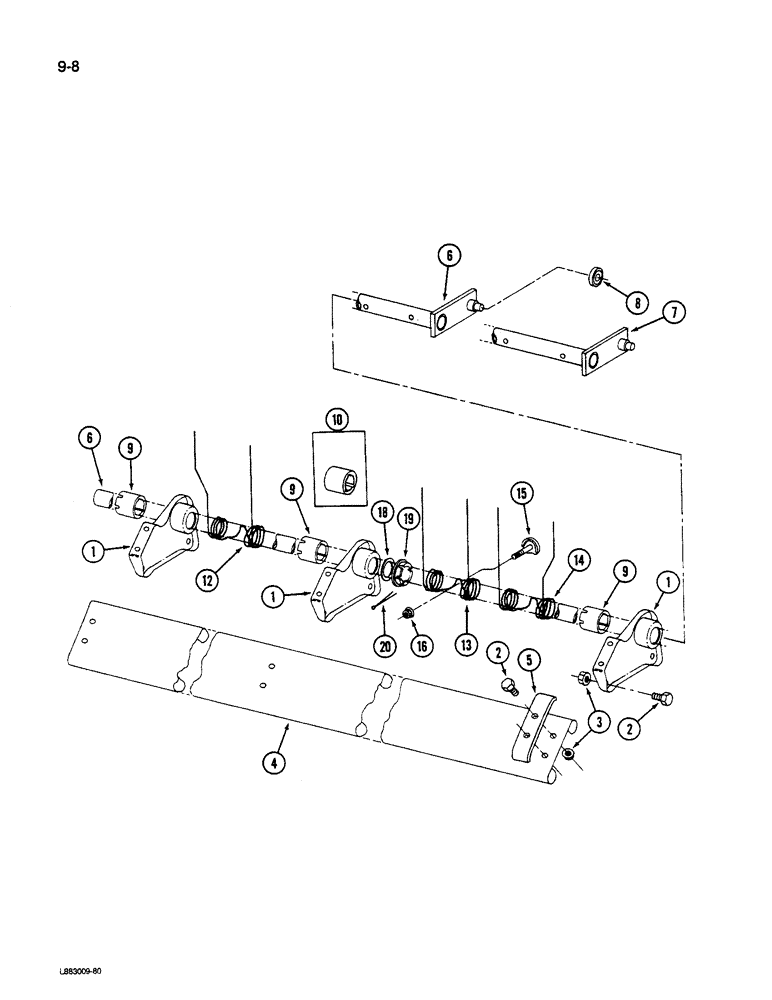

Запчасти Case IH 1590 (9-008) - TINE BAR AND TINES, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

135012C1

SUPPORT

- bearing and bat, 1490

12шт.

1

135012C1

SUPPORT

- bearing and bat. 1590

16шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1490 Hex, 3/8"-16 x 3/4", G5, Full Thd

48шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1590 Hex, 3/8"-16 x 3/4", G5, Full Thd

64шт.

3

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC, 1490

48шт.

3

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC, 1590

64шт.

4

135302C1

BAR

BAT - reel (1490 mower conditioner)

4шт.

4

143685C1

BAT

- reel (1590 mower conditioner)

4шт.

5

1253591C1

CLIP

- bat, 1490

12шт.

5

1253591C1

CLIP

- bat, 1590

16шт.

6

135303C1

BAR

- tine, odd, without tines (Second hole 5-3/8 inches from cam arm) (1490)

2шт.

6

135300C1

BAR ASSY.

BAR - tine, odd, without tines (Second hole 5-3/8 inches from cam arm) (1590)

2шт.

7

143686C1

BAR

- tine, even, without tines (Second hole 7-1/2 inches from cam arm) (1490)

2шт.

7

135298C1

BAR ASSY.

BAR - tine, even, without tines (Second hole 7-1/2 inches from cam arm) (1590)

2шт.

8

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

ASSEMBLY - ball

4шт.

9

135045C1

BUSHING,33.35mm ID x 43.94mm OD x 48mm L

- tine bar, 1490

12шт.

9

135045C1

BUSHING,33.35mm ID x 43.94mm OD x 48mm L

- tine bar, 1590

14шт.

10

ZA502861

BUSHING

- tine bar (1590 mower conditioner)

2шт.

12

60341C1

TOOTH

TINE - reel, right

4шт.

13

540565R1

SPRING

TINE - reel, 1490

56шт.

13

540565R1

SPRING

TINE - reel, 1590

68шт.

14

60340C1

TOOTH

TINE - reel, left

4шт.

15

126591C1

BOLT,5/16" - 18 x 48.20mm

BOLT - reel tine, 1490

64шт.

15

126591C1

BOLT,5/16" - 18 x 48.20mm

BOLT - reel tine, 1590

76шт.

16

148139C1

LOCK NUT,Flg, 5/16"-18

NUT - hex flange lock, 5/16 inch NC, Grade 8, 1490

64шт.

16

148139C1

LOCK NUT,Flg, 5/16"-18

NUT - hex flange lock, 5/16 inch NC, Grade 8, 1590

76шт.

18

21794R1

WASHER

- flat, 1-13/32 x 2 x 1/32 inch, 1490

4шт.

18

21794R1

WASHER

- flat, 1-13/32 x 2 x 1/32 inch, 1590

8шт.

19

135019C1

WASHER

- adjustable, special, 1490

4шт.

19

135019C1

WASHER

- adjustable, special, 1590

8шт.

20

432-1232

COTTER PIN,3/16" OD x 2" L

PIN - cotter, 3/16 x 2-1/4 inch, 1490

16шт.

20

432-1232

COTTER PIN,3/16" OD x 2" L

PIN - cotter, 3/16 x 2-1/4 inch, 1590

20шт.
