Запчасти Case IH 1590 (9-006) - REEL, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

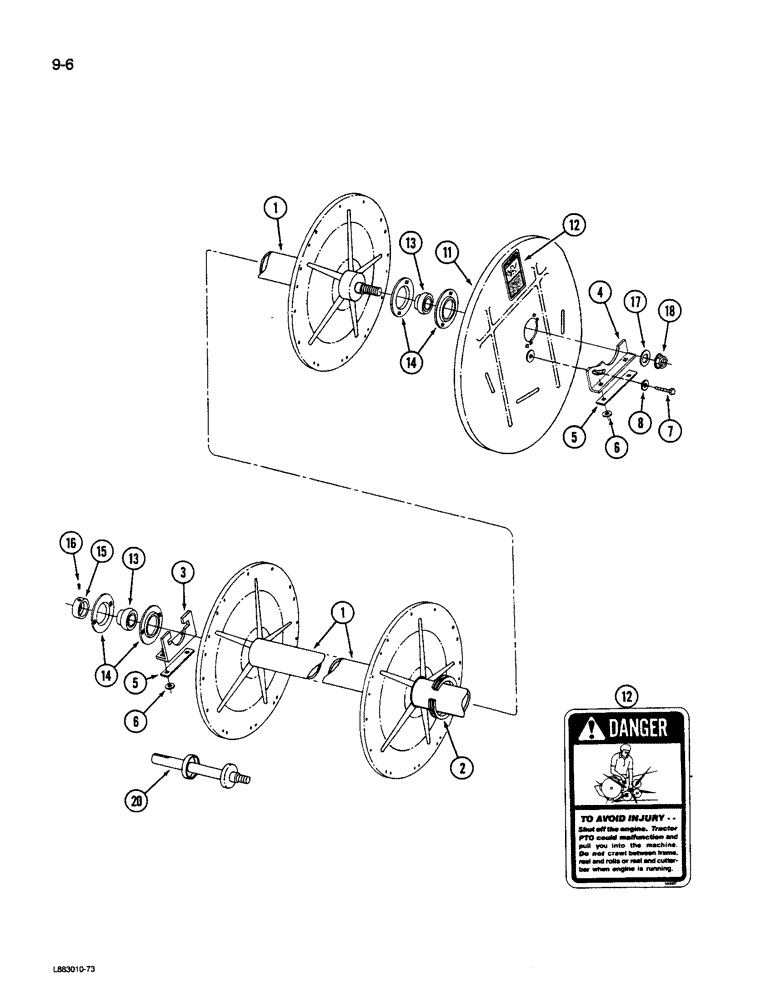

Схема запчастей Case IH 1590 - (9-006) - REEL, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

Артикул

Название

Примечание

Количество

1

135282C2

ASSEMBLY

REEL - mower conditioner (1490)

1шт.

1

135288C2

ASSEMBLY

REEL - mower conditioner (1590)

1шт.

2

829939C1

BUMPER

- tube (1 required on 1490; quantity shown for 1590)

2шт.

3

1253417C1

SUPPORT

- reel shaft, right

1шт.

4

1253416C1

SUPPORT

- reel shaft, left

1шт.

5

112107C1

BAR

SHIM - shaft support

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

607895R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

4шт.

7

26316R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

1шт.

8

607895R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

1шт.

11

ZA502728

CAM

ASSEMBLY - reel, with decal

1шт.

12

REF

INSTRUCTION

DECAL - danger, to avoid injury shut off engine (Left side) (See Figure 9-98)

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

3шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

3шт.

13

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

ASSEMBLY - ball

2шт.

14

143760C1

FLANGE

- bearing

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

15

557995R11

COLLAR

ASSEMBLY - locking, bearing, with set screw

1шт.

16

192450

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket, 5/16 NC x 5/16 inch

1шт.

17

21715R1

WASHER

- flat, 29/32 x 1-3/4 x 7/64 inch

1шт.

18

129-109

NUT,7/8"-9, G5

1шт.

192-29

LOCK WASHER,7/8"

7/8"

1шт.

20

148013C1

SHAFT

- repair, reel (To replace left or right reel shaft)

1шт.

Выбрано товаров: 25
